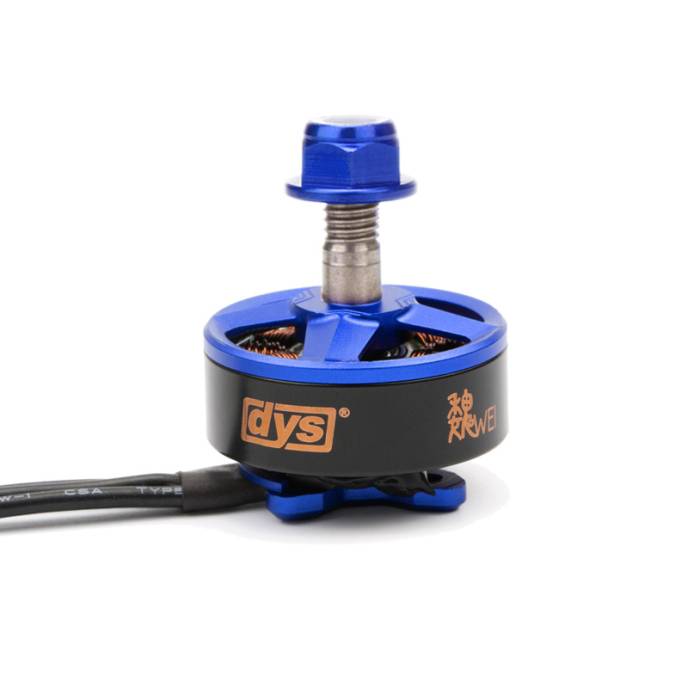

DYS Samguk Series Wei 2207 2600kv Motor
$16.99
Out of Stock
Only left for same day shipping. Order now!
DYS Samguk Series Wei 2207 2600kv Motor
The Samguk Series from DYS. Powerful, light, and crazy affordable!
About this product
The Samguk Series was inspired by Chinese history. There were three strong kingdoms, Wei, Shu, and Wu. Each kingdom in a desperate battle for power over each other. Represent your kingdom and battle it out on the race course!
You'll be amazed the quality and power these motors have for the price tag!
Specifications
- KV: 2600
- Configuration: NP
- Stator Diameter: 22.0mm
- Stator Length: 7.0mm
- Shaft Diameter: M5
- Motor Dimensions(Dia.*Len): Φ27.7x18.2mm
- Weight (g): 34.7g
- No.of Cells(Lipo): 3-4S
- Max Continuous current(A): 44.2A
- Max Continuous Power(W): 704.2W
- Internal resistance: 0.05Ω
| NO LOAD | ON LOAD | LOAD TYPE | |||||
| VOLTAGE | CURRENT | SPEED | CURRENT | Pull | Power | EEP | Battery/prop |
| V | A | rpm | A | g | W | % | |
| 12 | 1.6 | 31200 | 5.7 | 200 | 68.4 | 2.9 | LiPoх3/4045х3 |
| 13.7 | 400 | 164.4 | 2.4 | ||||
| 22.7 | 600 | 272.4 | 2.2 | ||||
| 8 | 300 | 96.0 | 3.1 | LiPoх3/5045х3 | |||
| 19.6 | 600 | 235.2 | 2.6 | ||||
| 31 | 800 | 372.0 | 2.2 | ||||
| 5.4 | 250 | 64.8 | 3.9 | LiPoх3/5040х3 | |||
| 13.1 | 500 | 157.2 | 3.2 | ||||
| 22.1 | 750 | 265.2 | 2.8 | ||||
| 5.2 | 250 | 62.4 | 4.0 | LiPoх3/5040х4 | |||
| 13 | 500 | 156.0 | 3.2 | ||||
| 24.7 | 780 | 296.4 | 2.6 | ||||
| 5 | 250 | 60.0 | 4.2 | LiPoх3/5045 | |||
| 12.5 | 500 | 150.0 | 3.3 | ||||
| 20.1 | 700 | 241.2 | 2.9 | ||||
| 16 | 1.7 | 41600 | 7.7 | 300 | 123.2 | 2.4 | LiPoх4/4045х3 |
| 18.9 | 600 | 302.4 | 2.0 | ||||
| 33.1 | 880 | 529.6 | 1.7 | ||||
| 9.6 | 400 | 153.6 | 2.6 | LiPoх4/5045х3 | |||
| 24.3 | 800 | 388.8 | 2.1 | ||||
| 44.0 | 1140 | 704.0 | 1.6 | ||||
| 7.8 | 400 | 124.8 | 3.2 | LiPoх4/5040х3 | |||
| 22.5 | 800 | 360.0 | 2.2 | ||||
| 32.7 | 1130 | 523.2 | 2.2 | ||||
| 8.0 | 400 | 128.0 | 3.1 | LiPoх4/5040х4 | |||
| 20.6 | 800 | 329.6 | 2.4 | ||||
| 35.0 | 1140 | 560.0 | 2.0 | ||||
| 5.0 | 300 | 80.0 | 3.8 | LiPoх4/5045 | |||
| 13.5 | 600 | 216.0 | 2.8 | ||||
| 29.0 | 1070 | 464.0 | 2.3 | ||||
Includes
- 1x DYS Wei 2207 2600kv Motor
- 1x Hardware Pack(screws, nuts)
More Information
| SKU | 8437 |
|---|---|
| UPC (GTIN) | 708325089679 |
| Manufacturer | DYS |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Motor Stator Size | 2207 |
| Popo Compatible | No |
