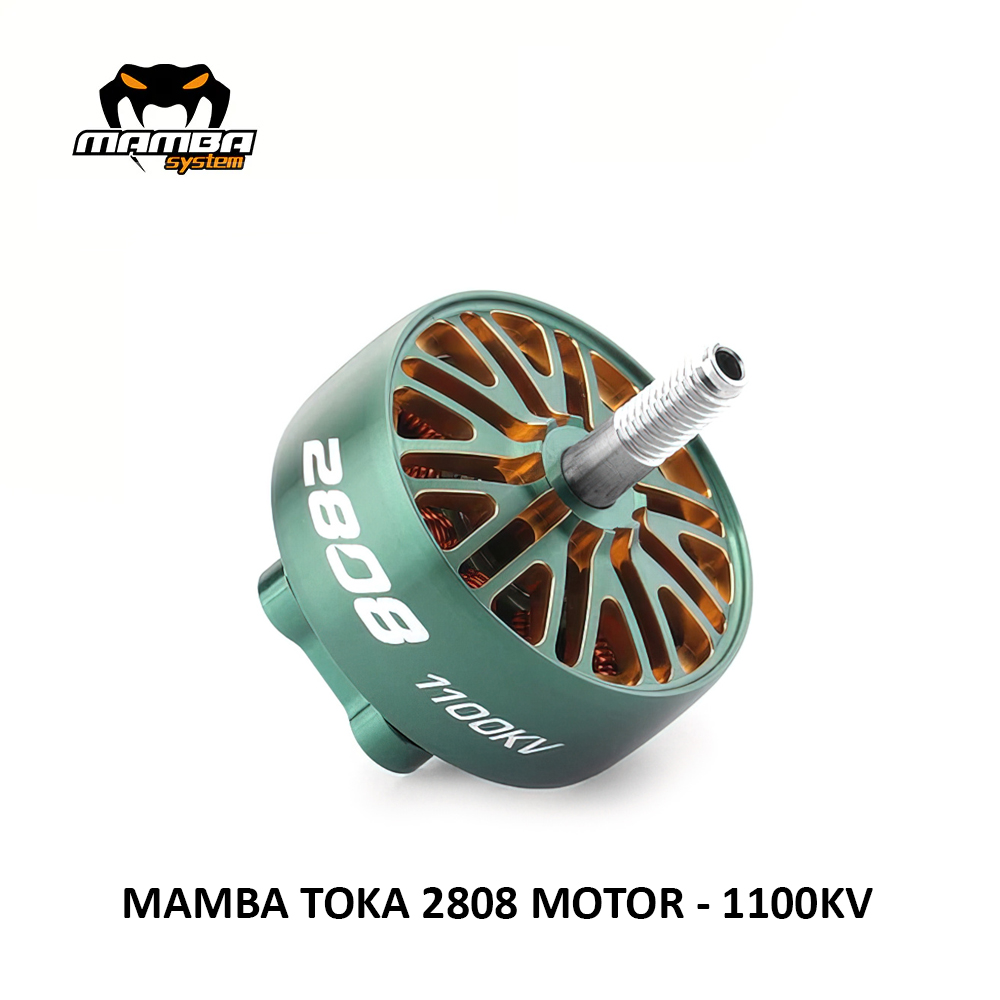

Diatone Mamba Toka 2808 Motor - 1100KV
Diatone Mamba Toka 2808 Motor - 1100KV
$27.99
Back Ordered
Only left for same day shipping. Order now!
Diatone Mamba Toka 2808 Motor - 1100KV
The Mamba Toka 2808 Motor is an ideal motor for 7" quads, such as the Diatone Roma F7.
About this product
The Mamba Toka 2808 Motor is an ideal motor for 7" quads, such as the Diatone Roma F7.
Features
- Replacement motor for the Diatone Roma F7
- 2808 Stator
- 1100KV
Specifications
- Installation hole position: 16×16mm - M3
- Magnet Wire: 240℃ Enameled Wire
- Rated Voltage: 4~6S (16.8V~25.2V)
- Prop mounting shaft diameter: 5mm
- Overall Dimension: 35.1×40.3mm
- Internal Resistance: 68mΩ
- Maximum Power: 862.5W
- Bottom Bearing: 13x6x5
- Shaft Diameter: 6.0mm
- Stator Diamter: 28mm
- Top Bearing: 10x6x4
- Peak Current: 38.7A
- Slots/poles: 12N14P
- Ladle Current: 1.2A
- Stator Height: 8mm
- Weight 63.5g
- Color: Green
- Stator: 2808
- Prop: 7 inch
- KV: 1100KV
Includes
- 1x Diatone Mamba Toka 2808 Motor - 1100KV
More Information
SKU | 17734 |
---|---|
UPC (GTIN) | 764613343755 |
Manufacturer | Diatone |
NDAA Compliant | No |
Popo Compatible | No |
Item Returns | This item can be returned |
