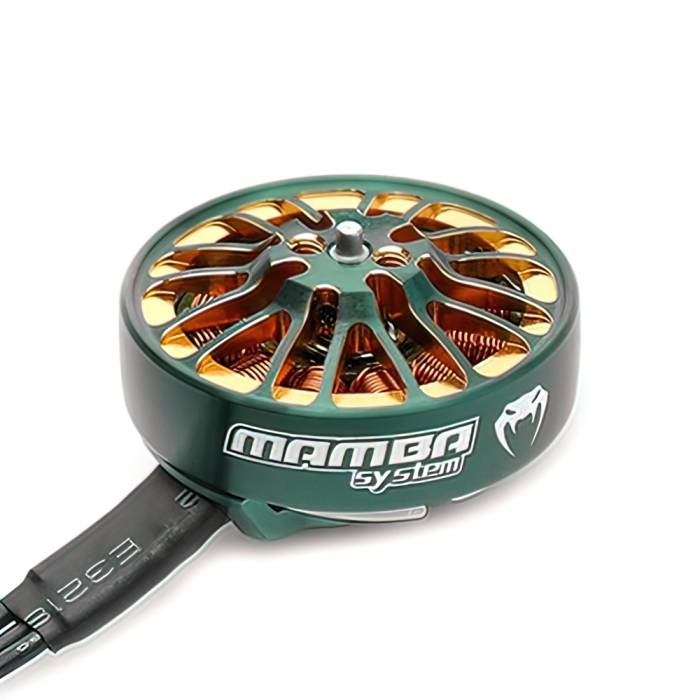

Diatone Mamba Toka 2004 Motor - 1700KV/2900KV

The Mamba Toka 2004 Motor is part of a new series of motors by Diatone that is best suited for CineWhoops, like the Diatone MX-C Taycan or any 3"-4" builds! Choose between two KVs to best fit your FPV needs: 1700KV, or 2900KV.

Specifications

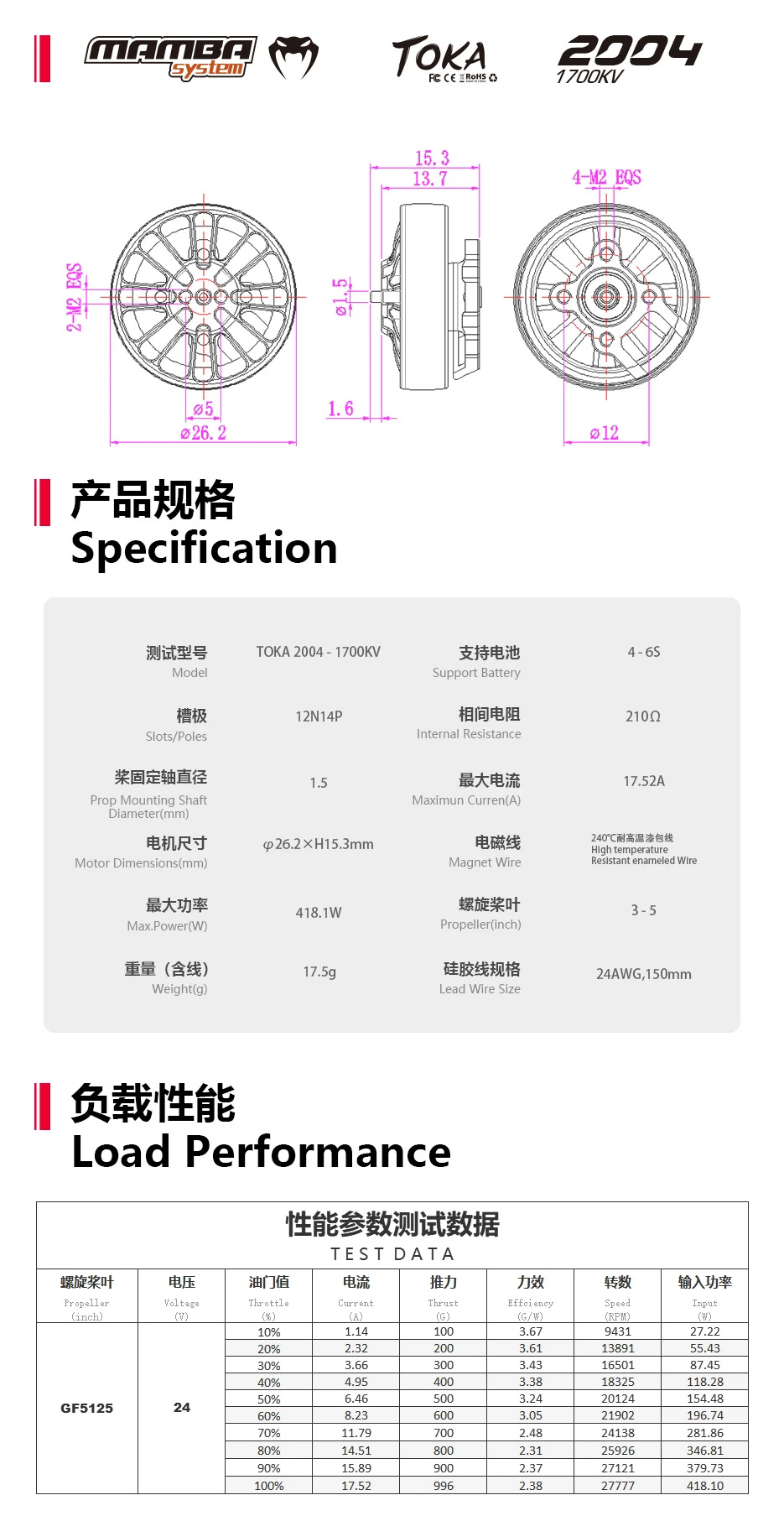

KV:1700

• Prop mounting shaft diameter: 1.5mm

• Installation hole position: 12×12mm, M2

• Rated Voltage: 4S~6S (16.8V~25.2V)

• Magnet Wire: 240℃ Enameled Wire

• Lead Wire Size: 24AWG×150mm

• Overall Dimension: 26.2×15.3mm

• Prop: 3.5inch~5inch

• ldle Current: 10V/0.3~0.8A
• Maximum Power: 418.1W
• Internal Resistance: 210Ω
• Stator Diameter: 20mm
• Peak Current: 17.52A

• Shaft Diameter: 3mm

• Stator Height: 4mm

• Slots/poles: 12N14P

• Bearing: 7x3x3

• Weight: 16.3g

KV:2900

• Installation hole position: 12×12mm, M2

• Prop mounting shaft diameter: 1.5mm

• Rated Voltage: 4S~6S (16.8V~25.2V)

• Magnet Wire: 240℃ Enameled Wire

• Lead Wire Size: 24AWG×150mm

• Overall Dimension: 26.2×15.3mm

• ldle Current: 10V/0.3~0.8A

• Internal Resistance: 210Ω

• Maximum Power: 418.1W

• Stator Diameter: 20mm

• Peak Current: 17.52A

• Shaft Diameter: 3mm

• Slots/poles: 12N14P

• Prop: 3.5inch~5inch

• Stator Height: 4mm

• Bearing: 7x3x3

• Weight:16.3g

Includes

• 1x Diatone Mamba Toka 2004 Motor (1700KV or 2900KV options)
