The Mamba Toka 1505 Motor is part of a new series of motors by Diatone that is best suited for CineWhoops, like the Diatone MX-C Taycan or any 3"-4" builds! Choose between two KVs to best fit your FPV needs: 2650KV, or 3800KV.

Specifications

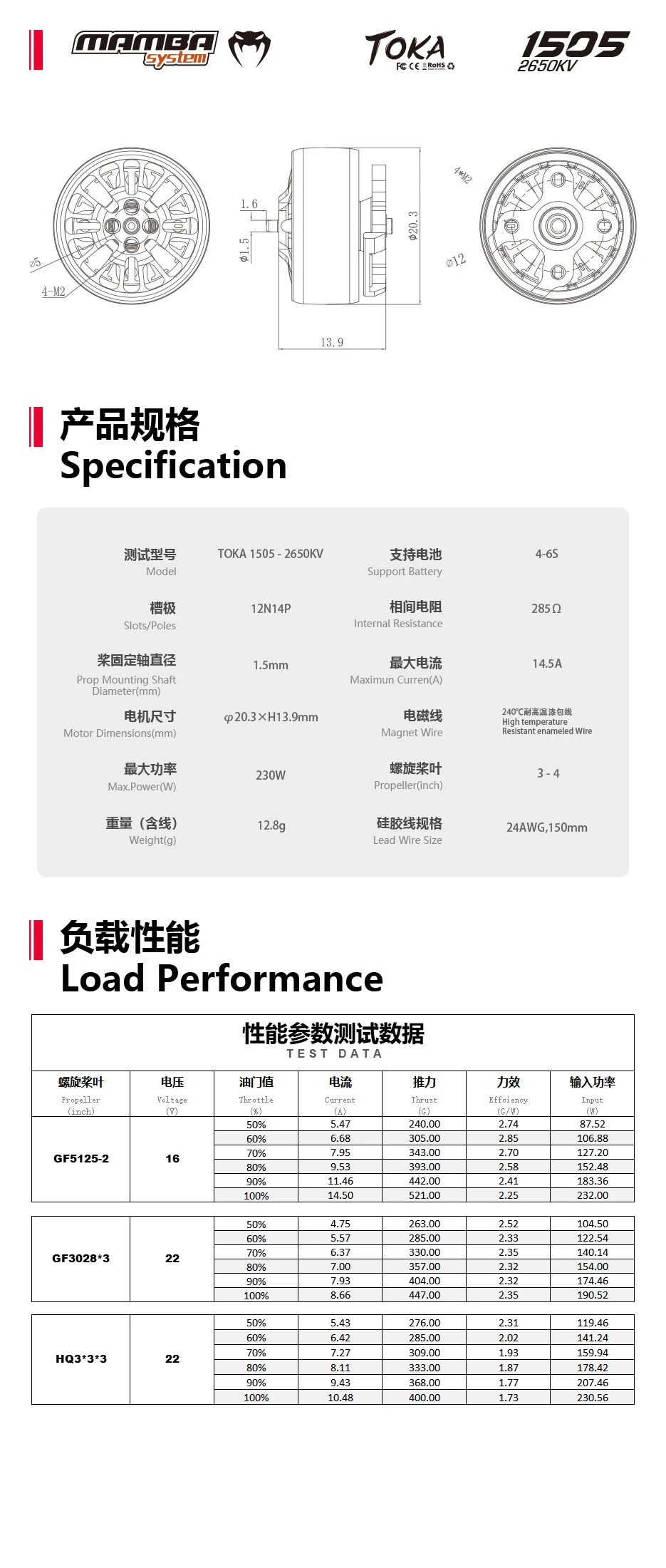

KV:2650

• Prop mounting shaft diameter: 1.5mm

• Installation hole position: 12×12mm, M2

• Rated Voltage: 4S~6S (16.8V~25.2V)

• Magnet Wire: 240℃ Enameled Wire

• Lead Wire Size: 24AWG×100mm

• Overall Dimension: 16.8×10.9mm

• Internal Resistance: 285Ω
• ldle Current: 10V/0.42A
• Maximum Power: 230W
• Stator Diameter: 20mm
• Peak Current: 14.5A

• Shaft Diameter: 15mm

• Stator Height: 5mm

• Slots/poles: 12N14P

• Prop: 3inch~4inch

• Bearing: 5x2x1.5

• Weight: 16.3g

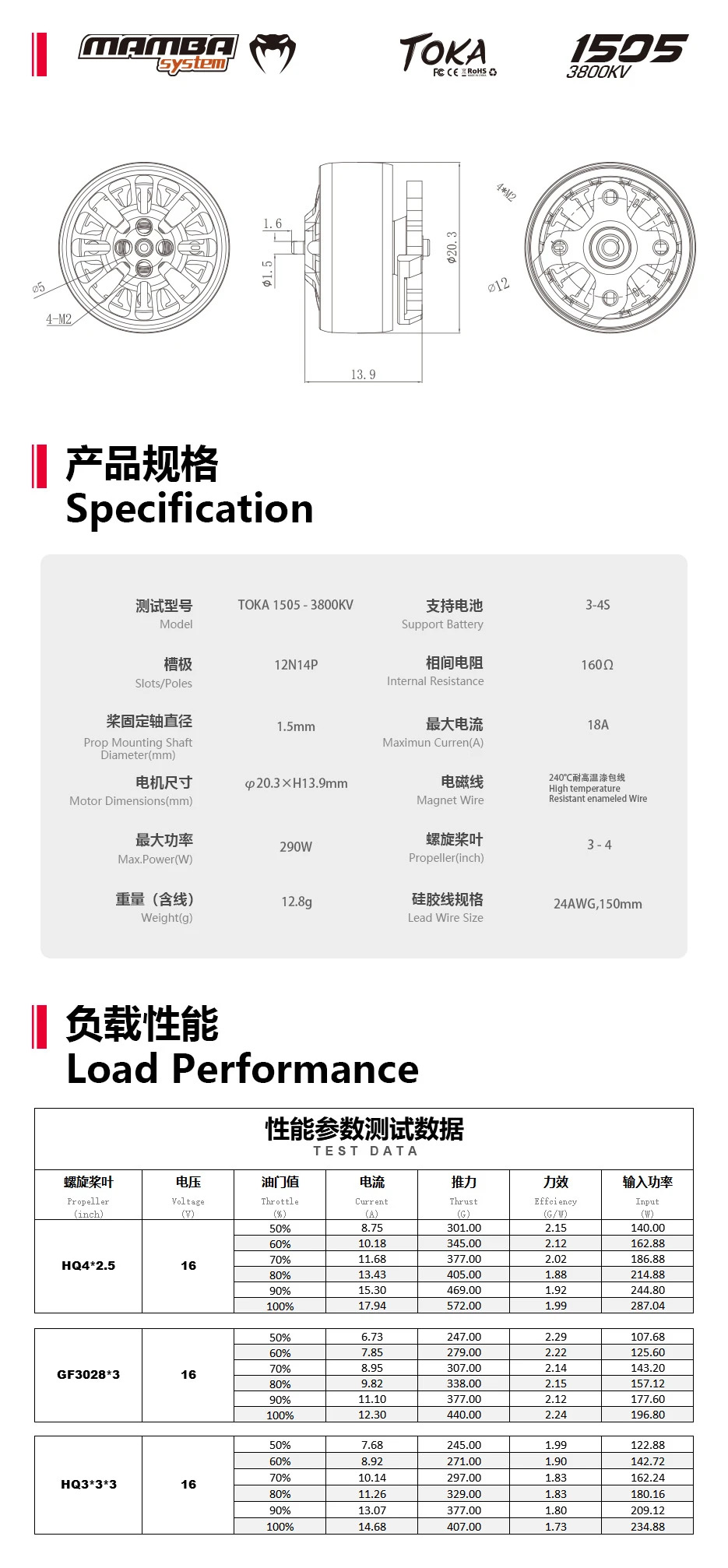

KV:3800

• Installation hole position: 12×12mm, M2

• Prop mounting shaft diameter: 1.5mm

• Rated Voltage: 3S~4S (12.6V~16.8V)

• Magnet Wire: 240℃ Enameled Wire

• Lead Wire Size: 24AWG×100mm

• Overall Dimension: 16.8×10.9mm

• Internal Resistance: 160Ω

• Maximum Power: 290W

• Stator Diameter: 20mm

• ldle Current: 6V/0.55A

• Shaft Diameter: 15mm

• Slots/poles: 12N14P

• Stator Height: 5mm

• Peak Current: 18A

• Prop: 3inch~4inch

• Bearing: 5x2x1.5

• Weight:16.3g

Includes

• 1x Diatone Mamba Toka 1505 Motor (2650KV or 3800KV options)
