Diatone Mamba Toka 1408 Motor - 2900KV/4100KV
Diatone Mamba Toka 1408 Motor - 2900KV/4100KV
Select options for stock status
About this product
The Mamba Toka 1408 Motor is part of a new series of motors by Diatone that is best suited for CineWhoops, like the Diatone MX-C Taycan or any 3"-4" builds! Choose between two KVs to best fit your FPV needs: 2900KV, or 4100KV.
Specifications

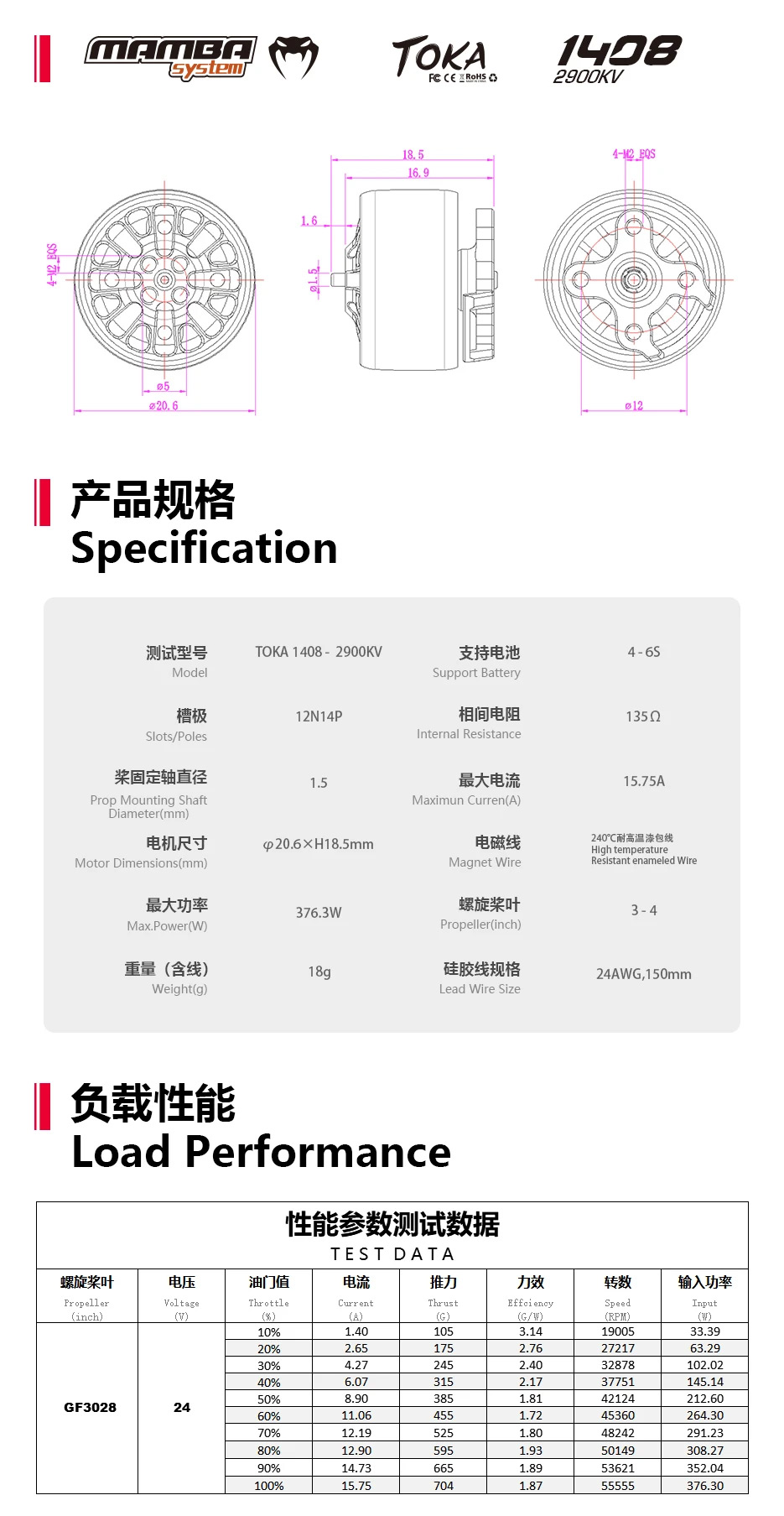

KV:2900
-
Prop mounting shaft diameter: 1.5mm
-
Installation hole position: 12×12mm, M2
- Rated Voltage: 4S~6S (16.8V~25.2V)
-
Magnet Wire: 240℃ Enameled Wire
-
Lead Wire Size: 24AWG×150mm
-
Overall Dimension: 20.6×18.5mm
-
Prop: 3inch~4inch
- ldle Current: 10V/0.4~1.0A
- Maximum Power: 376.3W
- Internal Resistance: 135Ω
- Stator Diameter: 14mm
- Peak Current: 15.75A
-
Shaft Diameter: 2mm
- Stator Height: 8mm
-
Slots/poles: 9N12P
-
Bearing: 5x2x2.5
- Weight: 18g

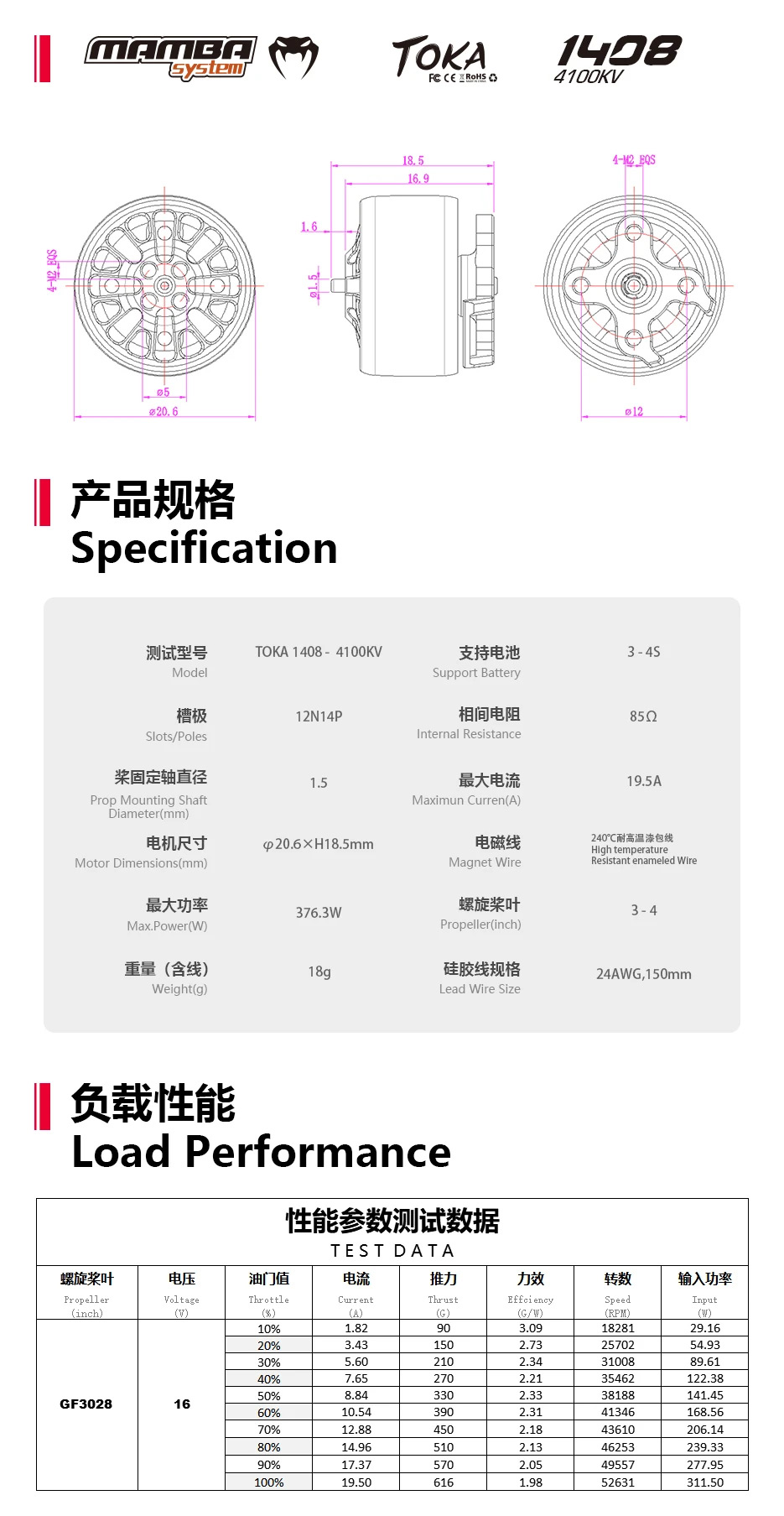

KV:4100
-
Installation hole position: 12×12mm, M2
-
Prop mounting shaft diameter: 1.5mm
-
Rated Voltage: 3S~4S (12.6V~16.8V)
-
Magnet Wire: 240℃ Enameled Wire
-
Lead Wire Size: 24AWG×150mm
-
Overall Dimension: 20.6×18.5mm
-
Prop: 3inch~4inch
-
ldle Current: 10V/0.8~1.5A
-
Internal Resistance: 85Ω
-
Maximum Power: 376.3W
-
Stator Diameter: 14mm
-
Peak Current: 19.5A
-
Shaft Diameter: 2mm
-
Stator Height: 8mm
-
Slots/poles: 9N12P
-
Bearing: 5x2x2.5
- Weight: 18g
Includes
- 1x Diatone Mamba Toka 1408 Motor (2900KV or 4100KV options)
More Information
SKU | 16504 |
---|---|
Manufacturer | Diatone |
NDAA Compliant | No |
Popo Compatible | No |
Item Returns | This item can be returned |
