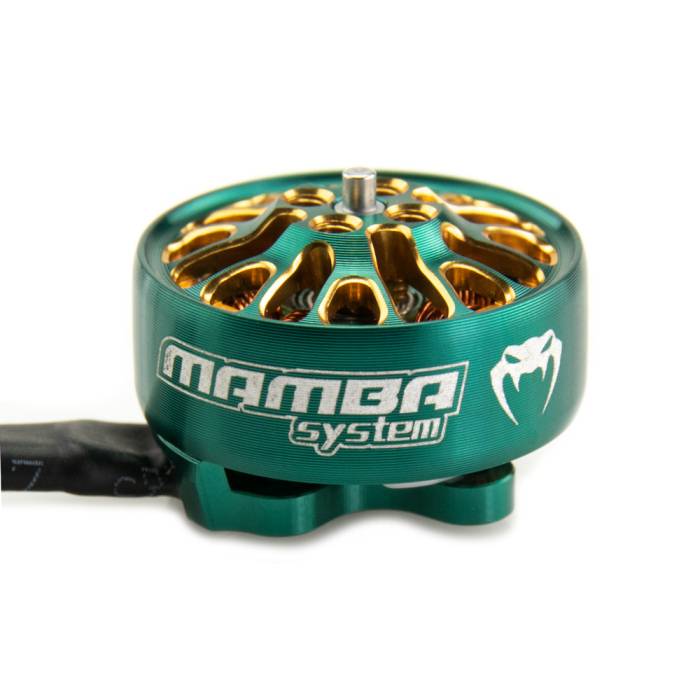

The Mamba Toka 1404 Motor is part of a new series of motors by Diatone that is best suited for CineWhoops, like the Diatone MX-C Taycan or any 3"-4" builds! Choose between two KVs to best fit your FPV needs: 3000KV, or 4000KV.

Specifications

KV:3000

• Prop mounting shaft diameter: 1.5mm

• Installation hole position: 12×12mm, M2

• Rated Voltage: 3S~6S (12.6V~25.2V)

• Magnet Wire: 240℃ Enameled Wire

• Lead Wire Size: 24AWG×150mm

• Overall Dimension: 20.5×15mm

• Prop: 2.5inch~4inch(Toothpick)

• ldle Current: 10V/0.3~1.0A
• Maximum Power: 286.8W
• Internal Resistance: 310Ω
• Stator Diameter: 14mm
• Peak Current: 11.95A

• Shaft Diameter: 2mm

• Stator Height: 4mm

• Slots/poles: 9N12P

• Bearing: 5*2*2.5

• Weight: 10.5g

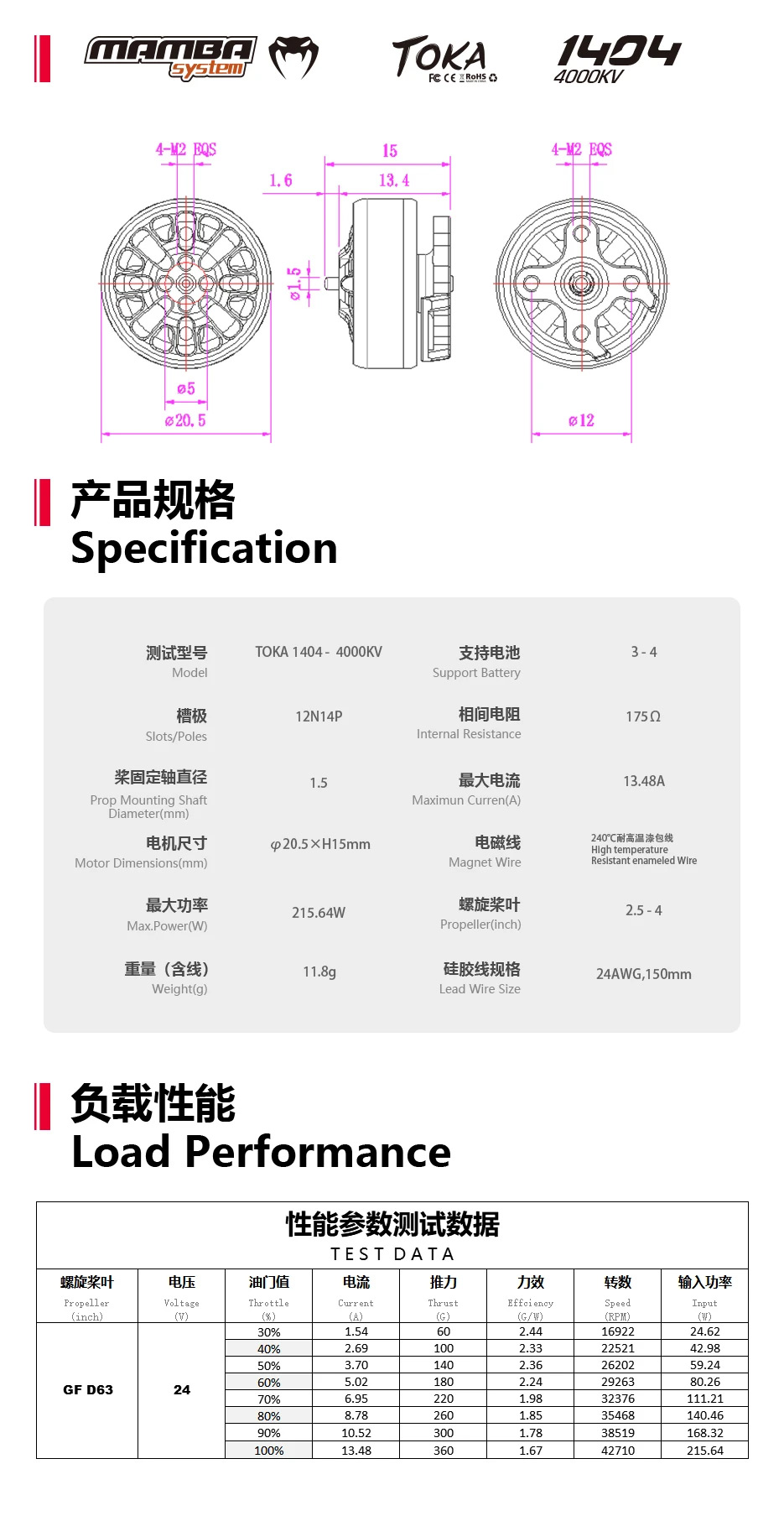

KV:4000

• Installation hole position: 12×12mm, M2

• Prop mounting shaft diameter: 1.5mm

• Rated Voltage: 3S~4S (12.6V~16.8V)

• Magnet Wire: 240℃ Enameled Wire

• Lead Wire Size: 24AWG×150mm

• Overall Dimension: 20.5×15mm

• Prop: 2.5inch~4inch(Toothpick)

• ldle Current: 10V/0.5~1.2A

• Internal Resistance: 175Ω

• Maximum Power: 215.6W

• Stator Diameter: 14mm

• Peak Current: 13.48A

• Shaft Diameter: 2mm

• Stator Height: 4mm

• Slots/poles: 9N12P

• Bearing: 5*2*2.5

• Weight: 10.5g

Includes

• 1x Diatone Mamba Toka 1404 Motor (3000KV or 4000KV options)
