Diatone Mamba Toka 1206 Motor - 2450KV/3600KV/4500KV/6000KV/7500KV
Diatone Mamba Toka 1206 Motor - 2450KV/3600KV/4500KV/6000KV/7500KV
$12.99
Select options for stock status
Only left for same day shipping. Order now!
Diatone Mamba Toka 1206 Motor - 2450KV/3600KV/4500KV/6000KV/7500KV

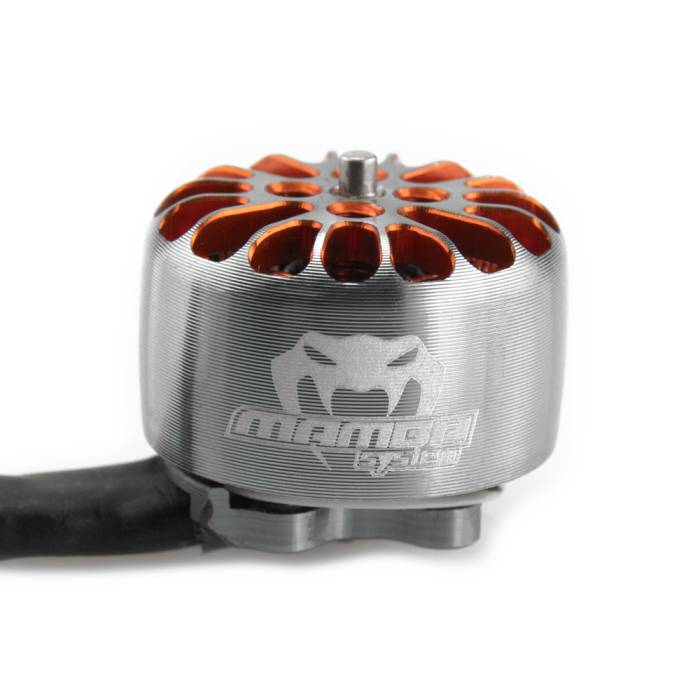

The Mamba Toka 1206 Motor is part of a new series of motors by Diatone that is best suited for CineWhoops, like the Diatone MX-C Taycan or any 3"-4" builds! Choose between five KVs to best fit your FPV needs: 2450KV, 3600KV, 4500KV, 6000KV, or 7500KV.
About this product
The Mamba Toka 1206 Motor is part of a new series of motors by Diatone that is best suited for CineWhoops, like the Diatone MX-C Taycan or any 3"-4" builds! Choose between five KVs to best fit your FPV needs: 2450KV, 3600KV, 4500KV, 6000KV, or 7500KV.
Specifications
KV:2450
- Installation hole position: 9×9mm, M2
- Prop mounting shaft diameter: 1.5mm
- Magnet Wire: 240℃ Enameled Wire
- Rated Voltage: 4~6S (16.8V~25.2V)
- Lead Wire Size: 24AWG×150mm
- Overall Dimension: 17×13.4mm
- Internal Resistance: 456Ω
- Maximum Power: 160W
- Stator Diameter: 12mm
- ldle Current: 6V/0.4A
- Configuration: 9N12P
- Shaft Diameter: 2mm
- Peak Current: 5.8A
- Stator Height: 6mm
- Prop: 2inch~3inch
- Bearing: 5x2x2.5
- Motor Table
KV:3600
- Prop mounting shaft diameter: 1.5mm
- Installation hole position: 9×9mm, M2
- Magnet Wire: 240℃ Enameled Wire
- Rated Voltage: 3~4S (12.6V~16.8V)
- Lead Wire Size: 24AWG×150mm
- Overall Dimension: 17×13.4mm
- Internal Resistance: 236Ω
- Maximum Power: 160W
- Stator Diameter: 12mm
- ldle Current: 6V/0.4A
- Configuration: 9N12P
- Shaft Diameter: 2mm
- Stator Height: 6mm
- Peak Current: 10A
- Prop: 2inch~3inch
- Bearing: 5x2x2.5
- Motor Table
KV:4500
- Prop mounting shaft diameter: 1.5mm
- Installation hole position: 9×9mm, M2
- Magnet Wire: 240℃ Enameled Wire
- Rated Voltage: 3~4S (12.6V~16.8V)
- Lead Wire Size: 24AWG×150mm
- Overall Dimension: 17×13.4mm
- Internal Resistance: 168Ω
- Maximum Power: 128W
- Stator Diameter: 12mm
- Configuration: 9N12P
- ldle Current: 6V/0.6A
- Shaft Diameter: 2mm
- Peak Current: 10.7A
- Stator Height: 6mm
- Prop: 2inch~3inch
- Bearing: 5x2x2.5
- Motor Table
KV:6000
- Prop mounting shaft diameter: 1.5mm
- Installation hole position: 9×9mm, M2
- Magnet Wire: 240℃ Enameled Wire
- Rated Voltage: 2~3S (8.4V~12.6V)
- Lead Wire Size: 24AWG×150mm
- Overall Dimension:17×13.4mm
- Internal Resistance: 168Ω
- Maximum Power: 174W
- Stator Diameter: 12mm
- ldle Current: 5V/0.7A
- Configuration: 9N12P
- Peak Current: 14.5A
- Shaft Diameter: 2mm
- Stator Height: 6mm
- Prop: 2inch~3inch
- Bearing: 5x2x2.5
- Motor Table
KV: 7500
- Prop mounting shaft diameter: 1.5mm
- Installation hole position: 9×9mm, M2
- Magnet Wire: 240℃ Enameled Wire
- Lead Wire Size: 24AWG×150mm
- Rated Voltage: 2~3S (8.4~12.6V)
- Overall Dimension: 17×13.4mm
- Internal Resistance: 76Ω
- Maximum Power: 114W
- Stator Diameter: 12mm
- ldle Current: 4V/0.95A
- Configuration: 9N12P
- Peak Current: 14.3A
- Shaft Diameter: 2mm
- Stator Height: 6mm
- Prop: 2inch~3inch
- Bearing: 5x2x2.5
- Motor Table
Includes
- 1x Diatone Mamba Toka 1206 Motor (2450KV, 3600KV, 4500KV, 6000KV, or 7500KV options)
More Information
SKU | 16490 |
---|---|
Manufacturer | Diatone |
NDAA Compliant | No |
Popo Compatible | No |
Item Returns | This item can be returned |
