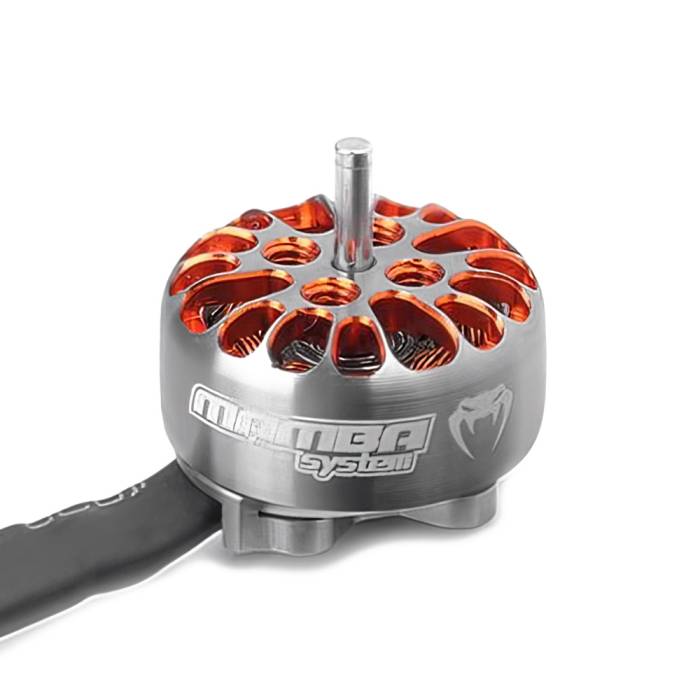

Diatone Mamba Toka 1103 Motor - 8500KV/10000KV

The Mamba Toka 1103 Motor is a new series of motors by Diatone that is best suited for CineWhoops, like the Diatone MX-C Taycan or any 3"-4" builds! Choose between two KVs to best fit your FPV needs: 8500KV, or 10000KV.

Specifications

KV:8500

• Prop mounting shaft diameter: 1.5mm
• Installation hole position: 9×9mm, M2
• Magnet Wire: 240℃ Enameled Wire
• Rated Voltage: 2~3S (8.4V~12.6V)
• Lead Wire Size: 24AWG×100mm
• Overall Dimension: 14.8×9.8mm
• Internal Resistance: 170Ω
• Maximum Power: 130W
• Shaft Diameter: 1.5mm
• ldle Current: 4V/0.42A
• Stator Diameter: 11mm
• Peak Current: 10.8A
• Prop: 1.6inch~3inch
• Stator Height: 3mm
• Slots/poles: 9N12P
• Bearing 4x1.5x2
• Motor Table

KV:10000

• Prop mounting shaft diameter:1.5mm
• Installation hole position: 9×9mm, M2
• Magnet Wire: 240℃ Enameled Wire
• Lead Wire Size: 24AWG×100mm
• Overall Dimension:14.8×9.8mm
• Internal Resistance: 158Ω
• Rated Voltage:2S (8.4V)
• Stator Diameter: 11mm
• Maximum Power: 70W
• Shaft Diameter:1.5mm
• ldle Current: 4V/0.5A
• Prop: 1.6inch~3inch
• Peak Current: 8.6A
• Stator Height:3mm
• Slots/poles:9N12P
• Bearing: 4x1.5x2
• Motor Table

Includes

• 1x Diatone Mamba Toka 1103 Motor (8500KV or 10000KV options)
