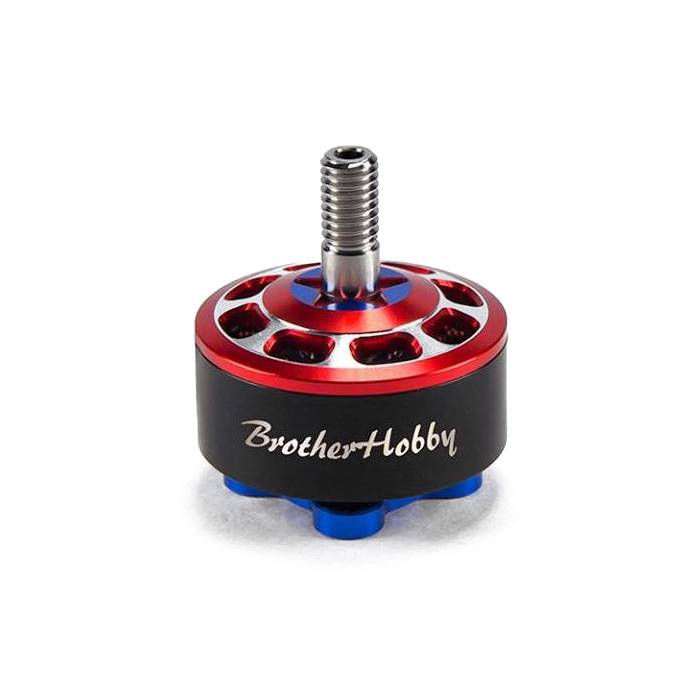

Brotherhobby Speed Shield 2207.5 2150kv Motor

The Speed Shield from Brotherhobby looks reminiscent of a certain superpowered shield, and while it may not give you superpowers, the engineers from Brotherhobby have been able to fit a unique stator size of 2207.5 inside a rather small bell. The result is an amazingly powerful motor in a small package that only weighs 31g.

Specifications

• KV: 2150KV
• Configuration:12N14P
• No.of Cells(Lipo):4-6S
• Rotor: N52H arc magnets
• Stator:0.15mm Nippon Steel silicon steel
• Shaft: Titanium Alloy hollow shaft
• Bearings: Japanese NMB 9x4x4mm
• Wire AWG:20AWG 16cm length
• Bell cap: Al 7075
• Base casing: Al 7075
• Prop Adapter Shaft Thread: M5
• Bolt Pattern: M3 (16X16mm)
• Weight: 31g with wires

Includes

• 1x Brotherhobby Speed Shield 2207.5 Motor
• 1x Screw Set
• 1x Hex Nut
