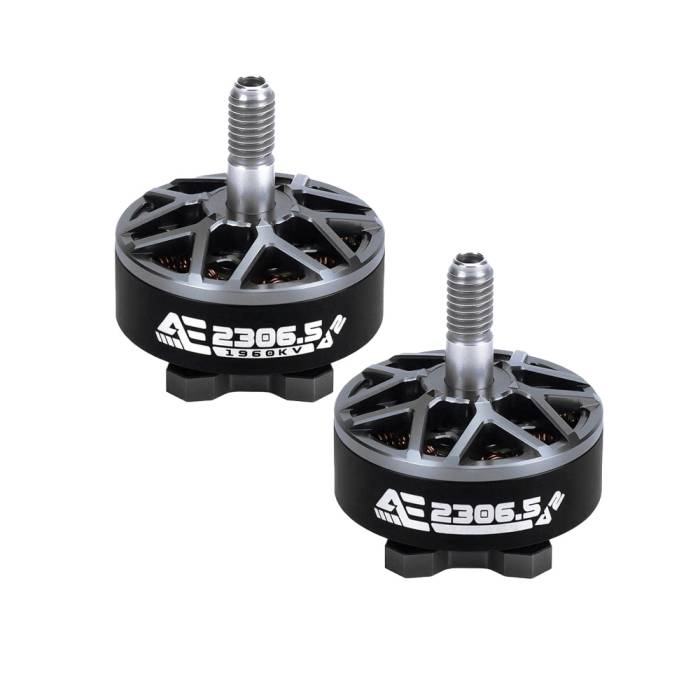

Axisflying AE V2 2306.5 Motor - 1860KV/1960KV
Select options for stock status
About this product
Introducing the Axisflying AE V2 Motor series. The Axisflying AE V2 2306.5 motor provides exceptional performance, top-notch quality, and our unwavering commitment to high standards. The AE series strikes the perfect balance between affordability and functionality. While we understand the skepticism surrounding 'budget' motors, we're here to challenge that notion. Our engineers applied the same rigorous principles to the AE series, ensuring we deliver cost-effectiveness without compromising on quality or performance.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
Features
- Long Lasting Motor
- Impact Resistance
- Stronger Power
- More Durable
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
1960KV
- Motor Dimensions: 27.9x32.7mm
- Weight (Including Cable): 33.7g
- Wire: 20AWG, 150mm length
- Mounting Pattern: 16x16mm
- Internal Resistance: 60.16m
- Max. Power: 1041.79W
- Configuration: 12N14P
- Peak Current: 44.54A
- Shaft Diameter: 5mm
- Stator Size: 23x6mm
- KV Rating: 1960Kv
- Input Voltage: 6S
1860KV
- Motor Dimensions: 27.9x32.7mm
- Weight (Including Cable): 33.5g
- Wire: 20AWG, 150mm length
- Mounting Pattern: 16x16mm
- Internal Resistance: 60.7m
- Configuration: 12N14P
- Max. Power: 859.58W
- Peak Current: 36.86A
- Shaft Diameter: 5mm
- Stator Size: 23x6mm
- KV Rating: 1860Kv
- Input Voltage: 6S
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
- (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
- (Insert links such as manuals, firmware, etc)
Includes
- 1x Axisflying AE V2 2306.5 Motor (Choose 1860KV or 1960KV)
- 1x Hardware Set
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
| SKU | 22040 |
|---|---|
| Manufacturer | Axisflying |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Motor Stator Size | 2306.5 |
| Popo Compatible | No |
