The Flywoo NIN 2303.5 Motor was inspired by the Japanese ninjas, due to how the motor flashes. Flywoo used a brand new design, as well as cool manufacturing techniques to create a motor that looks unique and mysterious. The NIN 2303.5 is an ultralight motor made to the highest standards of FPV freestyle racing.

This motor has a high-grade unibell design, heat-resistant copper wiring, arc magnets, and an electroplating surfacing process which leaves the NIN Motor with a unique shiny reflection! The NIN Motor uses a high-strength titanium alloy shaft and 7075 aluminum alloy shell to help protect the motor from a collision.

Great for long-range, freestyle racing! Perfect for any 3" cinewhoop, 4"-5" toothpick, or 6-7'' long-range drone! Two KVs to choose from...1750KV and 3000KV.

Features

• Durable 7075 Aluminum Alloy Shell
• High Strength Titanium Alloy Shaft
• Electroplating Surfacing Process
• Curved N52H Arc Magnets
• Japanese NSK Bearings
• Resistant Copper Wire
• Ultra-lightweight

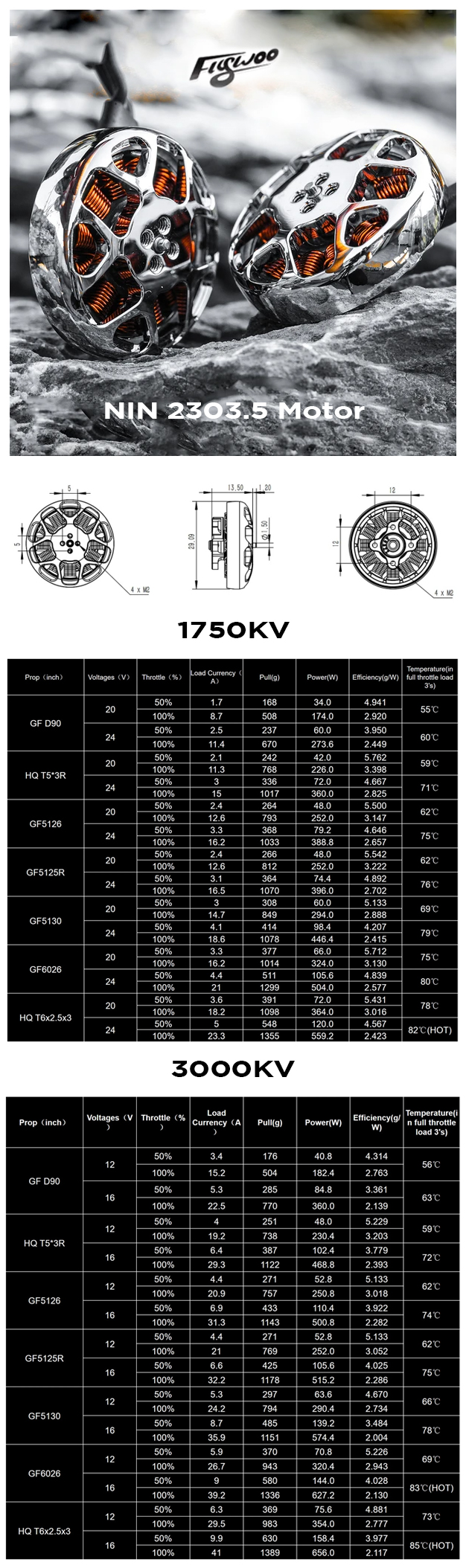

Specifications

KV: 1750KV

• Max. Efficiency Current: (1.5-3A)>85%
• Shaft Diameter: 3mm(in) 1.5mm(out)
• Max Continuous Power(W) 3S : 559
• Idle current(10): @10V(A) : 0.58
• Motor Dimension: 29.1x13.5mm
• Internal Resistance: 173mΩ
• Max Current(3S): 23.3A
• No.of Cells(Lipo): 5~6S
• Stator Diameter: 23mm
• Configuration:12N14P
• Stator Length: 3.5mm
• Wire Length: 3cm
• Weight(g): 21.5

KV: 3000KV

• Max. Efficiency Current: (2.5-5A)>85%
• Shaft Diameter: 3mm(in) 1.5mm(out)
• Max Continuous Power(W) 3S: 656
• Motor Dimension: 29.1x13.5mm
• Idle current(10) @10V(A): 1.25
• Internal Resistance: 71mΩ
• No.of Cells(Lipo): 3~4S
• Stator Diamater: 23mm
• Wire Length: 3cm Wire
• Configuration: 12N14P
• Max Current(3S): 41A
• Stator Length: 3.5mm
• Weight(g): 21.5

Includes

• 1x Flywoo NIN V2 2303.5 Motor (1750KV or 3000KV)
• 1x Hardware Kit
