Mode 2 - Ghost 2 5" Racing Frame
Wickedly weightless. Frighteningly fast. Scary small. The Ghost 2 by Mode 2.

About this product

One of the best has gotten even better. We set out to improve the Ghost in every way we possibly could, leaving your opponents without a ghost of a chance on race day.

The Ghost 2 FPV drone frame is a svelte 65g without stack hardware, 75g with, and features a shocking range of improvements. First, we upgraded to 5mm boomerang arms, providing alarming rigidity and frightening strength. Next was an increased the width of the top plate, and removed some of the chevrons making it more robust. Also, there was an added 5mm of space between the rear arms and stack, for the more ghoulish 4-in-1 ESCs

All the titanium hardware was left in a ghost town, in favor of far stronger stainless steel. The motor mounts on the arms feature a wider base with added carbon, along with removing the taper and increasing the amount of carbon that meets the bottom plate. And again, with all that alarming speed still comes the startling risk of damage, so it features the same fantastic quality 3K matte-finish carbon fiber, which is all chamfered.

Remain king of your otherworldly realm, and leave your opponents looking like they just saw a Ghost.

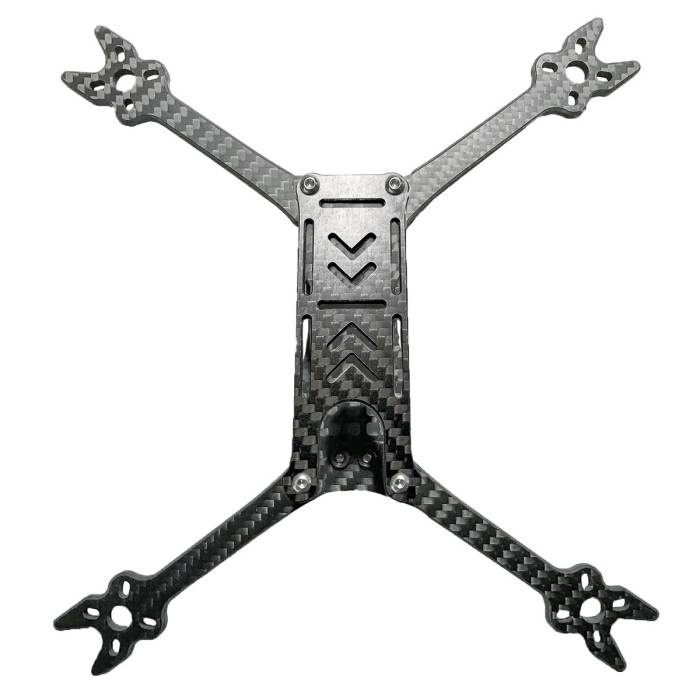

Note: Now comes with 3mm top plate for top-mounted batteries. The new top plate is shown in the 2nd photo. Disregard the curved top plate shown in some photos.

*V2 arms are backward compatible with the V1 frame, and vice versa.
*V1 and V2 top and bottom plates are not backward compatible.
*This frame is made specifically for all Micro and Mini cameras.

Specifications

WEIGHT

  • 65 g

DIMENSIONS

  • Stretch X
  • 4" – 190mm
  • 5" – 215mm
  • 6" – 240mm
  • 7" – 265mm

PROP ACCOMMODATION

  • 4", 5", 6" and 7"

DRILL PATTERN

  • Flight Controller: 30.5×30.5mm / 20x20mm
  • Motors: 4" – 14xx/18xx, 5-7" – 2xx – 24xx, Terminator Mount

CARBON

  • 3K Weave
  • Matte Finish
  • 2mm Top Plate
  • 3mm Bottom Plate
  • 5mm Boomerang Arms
  • Chamfered

Includes

  • 1x Ghost 2 Frame w/ 5" Arms
  • 12x Stainless Fasteners (x12) 4x25mm, 4x16mm, 4x8mm, 4x6mm
  • 4x 20mm Aluminium Standoffs – Gunmetal
  • 4x M3 Stainless Stack Nuts
  • 4x 5mm M3 Nylon Stack Risers
  • 1x TPU SMA Mount – Black
  • 2x TPU Camera Mount – Black

More Information

SKU 9228
UPC (GTIN) 721248872807
Manufacturer Mode 2
NDAA Compliant No
Item Returns This item can be returned
