Mini Nano V3.0 ATmega328P Microcontroller Board w/ USB Cable For Arduino
The Nano V3.0 ATmega328P Microcontroller Board is compatible with Arduino.

About this product

The Nano V3.0 ATmega328P Microcontroller Board is compatible with Arduino.

Features

  • Nano V3.0 ATmega328P Microcontroller Board w/ USB Cable For Arduino
  • Fully Compatible to Arduino Nano V3.0 ATmega328P-AU
  • ATmega328 Microcontroller
  • Bootloader installed, ready to upload sketches from Arduino software
  • Microcontroller ATmega328P-AU
  • Operating Voltage:5V
  • Input Voltage (recommended) 7V-12V
  • Input Voltage (limits) 6V-20V
  • Digital I/O Pins 14 (of which 6 provide PWM output)
  • Analog Input Pins 8
  • DC Current per I/O Pin 40 mA
  • DC Current for 3.3V Pin 50 mA
  • Flash Memory 32 KB (ATmega328) of which 2 KB used by bootloader
  • SRAM 2 KB
  • EEPROM 1 KB
  • Clock Speed 16 MHz
  • Dimension: Approx. 45x17x19mm
  • Cable Length:245mm

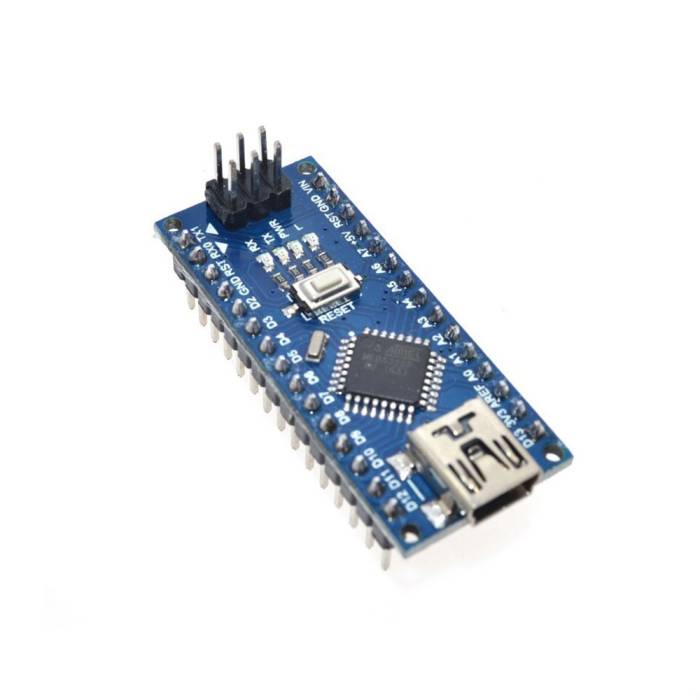

  • Color: Blue(as the picture shows)

Instructions

  1. Download IDE of Arduino.
    • Download link: http://arduino.cc/en/Main/Software (Copy to open)
  2. Download USB Chip driver.
    • Download link:http://www.wch-ic.com/download/list.asp?id=126
  3. Plug NANO development board, the driver will automatically install
  4. Choose the NANO board in the die
  5. Select the COM port, this can be in My Computer inquiries, just inside your UNO development board port.
  6. The best choice, Arduino comes with the routine program, burning into it.

Includes

  • 1 x Nano V3.0 ATmega328P Arduino Compatible Board
  • 1 x  Mini USB Cable


More Information

SKU 13151
UPC (GTIN) 751313217653
Manufacturer GetFPV Affiliate
NDAA Compliant No
Item Returns This item can be returned
