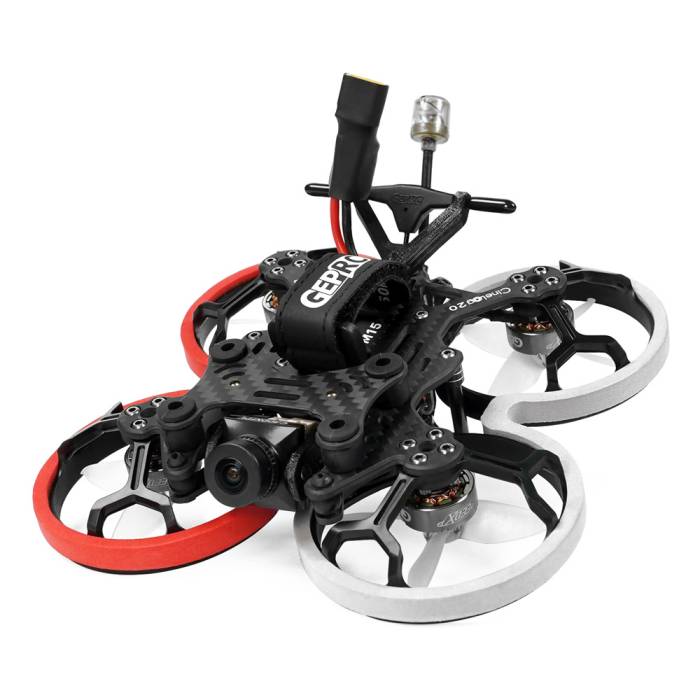

GEPRC CineLog 20 2" Analog Cinewhoop Drone w/ Caddx Ratel 2 - 4S
GEPRC CineLog 20 2" Analog Cinewhoop Drone w/ Caddx Ratel 2 - 4S
$199.99
Select options for stock status
Only left for same day shipping. Order now!
GEPRC CineLog 20 2" Analog Cinewhoop Drone w/ Caddx Ratel 2 - 4S
The GEPRC Cinelog 20 2" Cinewhoop can be shuttled in a narrow space and has been adapted to carry the Caddx Ratel 2 camera system.
About this product
The GEPRC Cinelog 20 2" Cinewhoop can be shuttled in a narrow space and has been adapted to carry the Caddx Ratel 2 camera system. The resigned camera gimbal can easily eliminate high-frequency vibration and jello issues. The soft connection damping design of the camera gimbal can also be mounted with a naked GoPro base, which supports the installation of Naked GoPro 8/910/11, Insta360 Go2, and DJI Action2 cameras.
Note: (Insert any product options here in black text with options in bold.)
Example: "Choose from two KV's: 1800KV (4S) or 2500KV (6S)."
Note: Action camera is not included.
Features
- Supports the installation of Naked GoPro 8/910/11, Insta360 Go2 and DJI Action2 cameras
- Camera gimbal can easily eliminate high-frequency vibration and jello issues
- Design the outer EVA damping ring to effectively reduce the impact force
- SPEEDX2 1303.5 5500KV motor with Emax four-blade propellers
- Combining aesthetics and engineering for compact design
- Soft connection damping design of the camera gimbal
- Shoots shocking effects in a narrow space
- Caddx Ratel 2 camera system
- 2" Pusher Design
Specifications
- Receiver: PNP(built-in DJI receiver), ELRS 2.4G, TBS Nano RX
- CineLog20 Analog TBSNanoRX weight: 116g
- Antenna: GEPRC Peano 5.8G RHCP MMCX
- OSD: Betaflight OSD w/AT7456E chip
- Propeller: EMAX Avan Micro 2×2.4×4
- FC system: GEP-F411-35A AIO
- VTX: GEPRC 5.8@600mw
- Motor: GR1303.5 5500KV
- Model: CineLog20 Analog
- MCU: STM32F411CEU6
- Camera: Caddx Ratel 2
- Bottom plate: 1.5mm
- Gimbal plate: 2.0mm
- Wheelbase: 100mm
- Gyro: ICM 42688-P
- Frame: GEP-CL20
- Top plate: 2.5mm
- Flight time:4-6min
- ESC: 8Bit 35A
Includes
- 1x GEPRC CineLog 20 2" Analog Cinewhoop Drone w/ Caddx Ratel 2- 4S (Choose Receiver)
- 1x 4S Naked GP Camera power cable (with balanced terminal head)
- 1x TBS Antenna mount (Horizontal Type)
- 1x TBS Antenna mount (Vertical Type)
- 1x L-shaped screwdriver (1.5mm)
- 2x EVA damping rings of guards
- 1x TBS Antenna printed parts
- 2x M15*150mm battery strap
- 1x Naked GP Camera Base
- 2x Battery Silicone Pads
- 2x EVA Landing Pads
- 1x Antenna fixed tube
- 1x Hardware Set
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
SKU | 20630 |
---|---|
Manufacturer | GEPRC |
NDAA Compliant | No |
Item Returns | This item can be returned |
