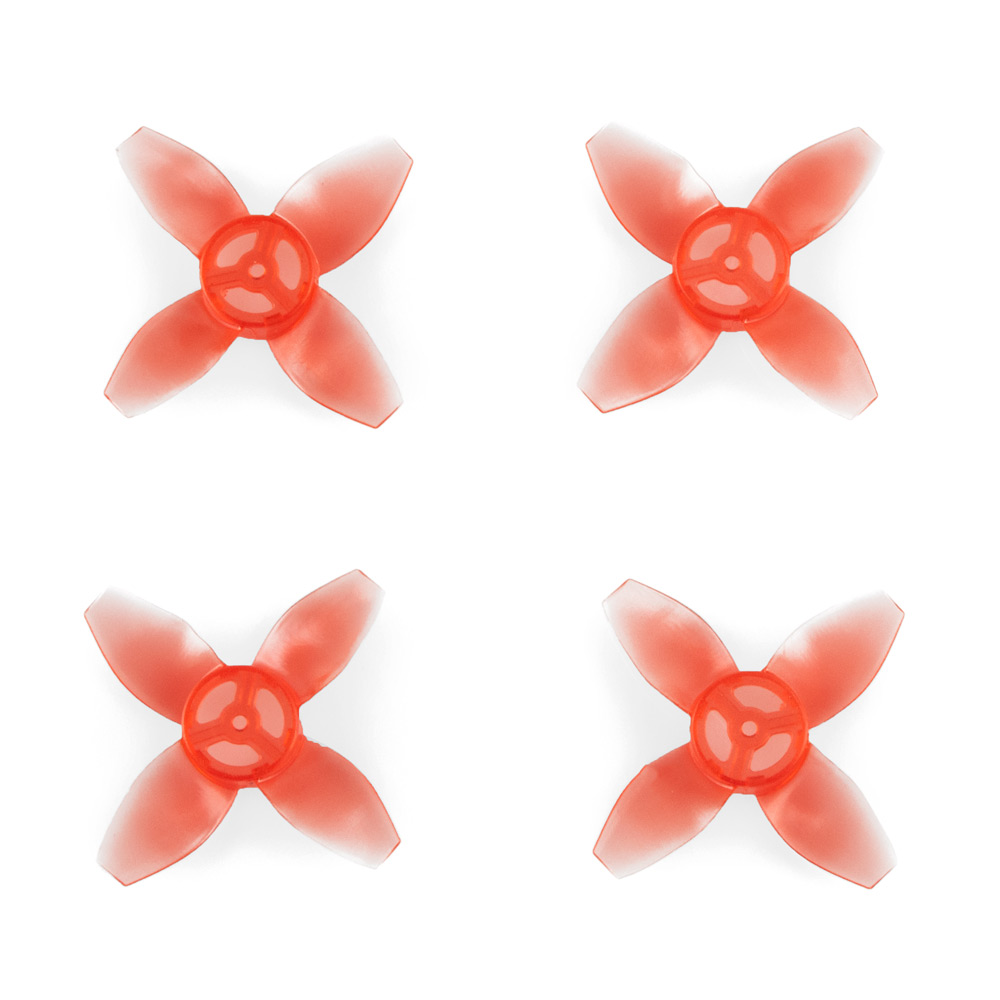

These EMAX Avia TH Propellers are for the EMAX TinyHawk III Quadcopter.

The TinyHawk III propeller has two directions of rotation: clockwise (CW) and counterclockwise (CCW). The blade rotates along the blunt edge of the blade. When installing the propeller blade, please install it in the correct direction of the propeller blade.

VIDEO: EMAX - Introducing Tinyhawk III

Features

• Compatible with the EMAX TinyHawk III.
• TH Turtle Mode Propellers

PROPELLER INSTALLATION -  Align the 3 shafts of the propeller with the 3 shafts of the motor, supporting the back of the motor, then press the blade in by hand until it is flush with the motor shaft.

Note: If the propeller is installed incorrectly, the Tinyhawk III cannot fly normally and cannot be controlled. Please carefully check whether the propeller is in the correct direction; if there is no support on the back of the motor, it may cause the frame to break; pay attention to safety when installing the propeller.

PROPELLER DISASSEMBLY - Use a small tool (such as a 1.5mm hex wrench or a small screwdriver) to press on the metal at the bottom of the motor and Tinyhawk III. Grasp the blade of the propeller with your fingers until the propeller pops out of the motor.

Note: It is only necessary to disassemble the propeller when replacing a new propeller; pay attention to safety when dismantling the propeller and when using tools.

Specifications

• Weight: 0.61 g /ea
• Diameter: 40mm
• Pitch: 31mm
• Blades: 4

Includes

• 1x EMAX TinyHawk III - Avia TH Propeller (Set of 4) - Red
