RCINPOWER GTS V3 1003 Motor - 10000KV/18000KV
RCINPOWER GTS V3 1003 Motor - 10000KV/18000KV
Select options for stock status
About this product

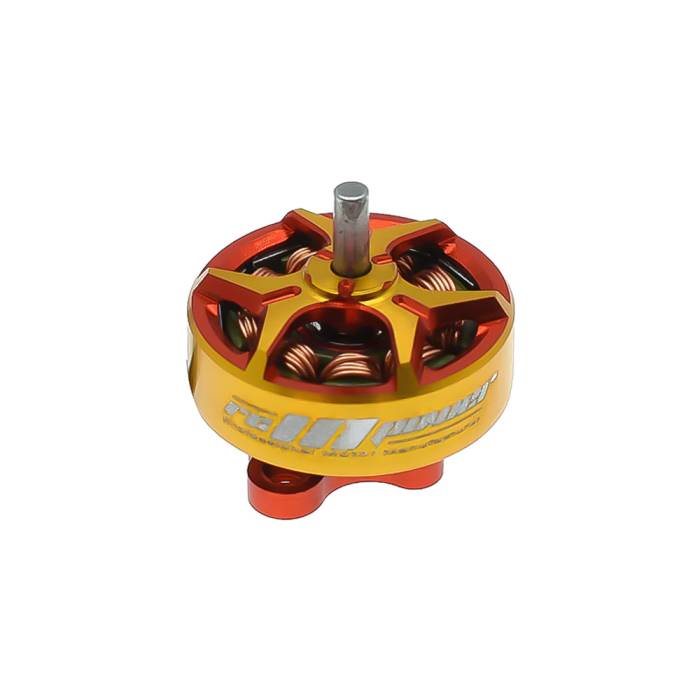

Introducing the RCINPOWER GTS V3 1003 Motor, a compact and powerful micro motor designed for FPV enthusiasts. With KV options of 18000KV and 10000KV, this motor offers impressive speed and versatility. Featuring an ultralightweight design at only 3.45g and compact motor dimensions of 13.5x9.2mm, allowing for agile and efficient flight maneuvers.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: RCINPOWER GTS V4 2207 - Overview & Thrust Tests
Features
- Available in 18000KV or 10000KV (Gold with Orange)
- Ultralightweight construction weighing only 3.45g
- Compact motor dimensions of 13.5x9.2mm
- Enables agile and efficient flight maneuvers
- Designed specifically for FPV enthusiasts
- Compact and powerful micro design
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.

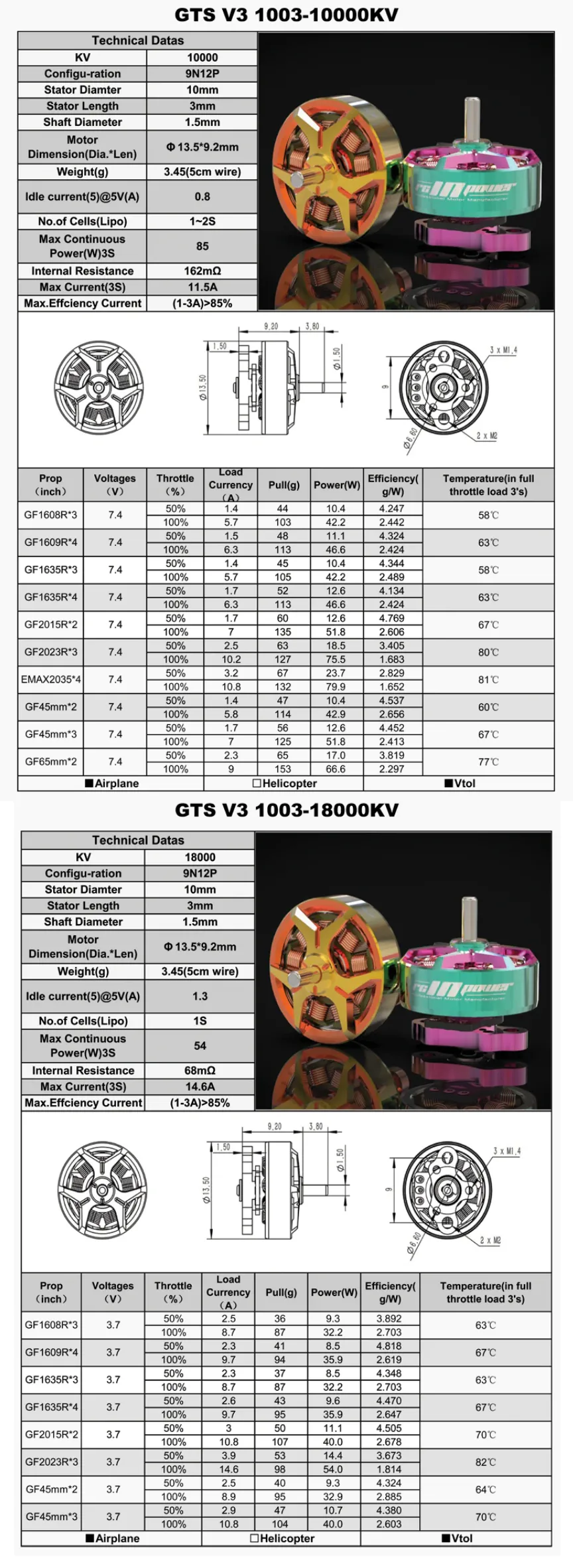

Specifications
10000KV
- Max. Efficiency Current: (1-3A)>84%
- Weight: 3.45 Grams (5cm Wires)
- Motor Dimension: 13.5*9.2mm
- Internal Resistance: 162mΩ
- Max Continuous Power: 85
- No. Of Cells (LiPo): 1-2S
- Max Current (3S): 11.5A
- Color: Gold and Orange
- Stator Diameter: 10mm
- Shaft Diameter: 1.5mm
- Configuration: 9N12P
- Stator Length: 3mm
- Idle Current: 0.8
18000KV
- Max. Efficiency Current: (1-3A)>85%
- Weight: 3.45 Grams (5cm Wires)
- Motor Dimension: 13.5*9.2mm
- Internal Resistance: 162mΩ
- Max Continuous Power: 54
- Color: Gold and Orange
- No. Of Cells (LiPo): 1-S
- Max Current (3S): 14.6A
- Stator Diameter: 10mm
- Shaft Diameter: 1.5mm
- Configuration: 9N12P
- Stator Length: 3mm
- Idle Current: 1.3
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Links
- (Insert links such as manuals, firmware, etc)
Includes
- 1x RCINPOWER GTS V3 1003 Motor (Choose KV)
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
| SKU | 20955 |
|---|---|
| Manufacturer | RCINPOWER |
| NDAA Compliant | No |
| Popo Compatible | No |
| Item Returns | This item can be returned |
