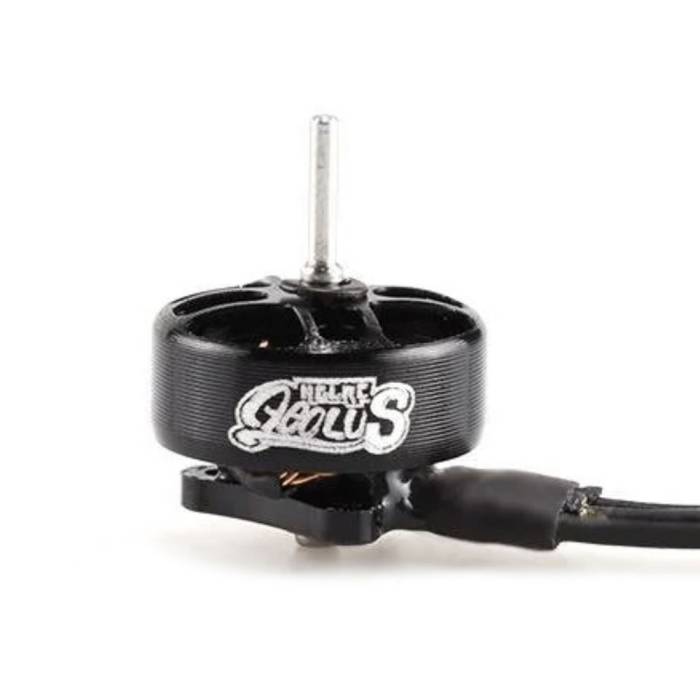

HGLRC AEOLUS 0802 Motor - 12000KV/22000KV/25000KV
HGLRC AEOLUS 0802 Motor - 12000KV/22000KV/25000KV
$12.99
Select options for stock status
Only left for same day shipping. Order now!
HGLRC AEOLUS 0802 Motor - 12000KV/22000KV/25000KV
The AEOLUS 0802 Motor by HGLRC is your best choice for 65-75mm brushless whoops!
About this product

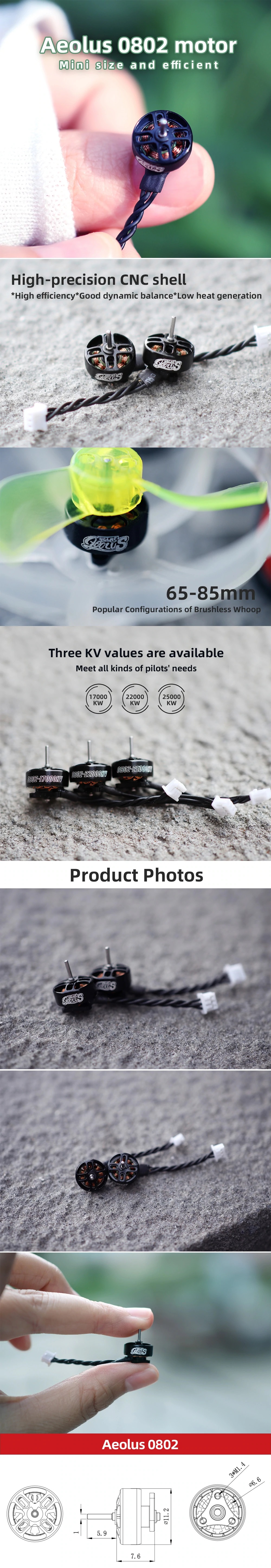

The AEOLUS 0802 Motor by HGLRC is your best choice for 65-75mm brushless whoops! This micro motor uses tile-shaped magnets and high-precision CNC shells, with high efficiency, good dynamic balance, and low heat generation. Suitable for the Petrel 65-75mm Whoop FPV racing drone!
Three KV options to choose from: 12000KV, 22000KV, or 25000KV
Specifications
12000KV
- Motor:12000KV
- Configuration:9N12P
- Shaft Diameter: 1.0mm
- Motor Dimension:Φ11.2mm x 7.6mm
- Mounting hole:Φ6.6*1.4mm
- Wire length(include connector): 30mm
- No.of Cells(Lipo):7.4V(2S)
- ESC:5-12A
- Recommended Prop(inch):1.4-1.6Inch
- Weight:1.9g
22000KV
- Motor:22000KV
- Configuration:9N12P
- Shaft Diameter:1.0mm
- Motor Dimension:Φ11.2mm x 7.6mm
- Mounting hole:Φ6.6*1.4mm
- Wire length(include connector):30mm
- No.of Cells(Lipo):4.20V(1S)
- ESC:5A
- Recommended Prop(inch):1-1.6Inch
- Weight:1.9g
25000KV
- Motor:25000KV
- Configuration:9N12P
- Shaft Diameter:1.0mm
- Motor Dimension:Φ11.2mm x 7.6mm
- Mounting hole:Φ6.6*1.4mm
- Wire length(include connector):30mm
- No.of Cells(Lipo):4.20V(1S)
- ESC:5A
- Recommended Prop(inch):1-1.6Inch
- Weight:1.9g
Includes
- 1 x HGLRC AEOLUS 0802 Motor
More Information
SKU | 17783 |
---|---|
Manufacturer | HGLRC |
NDAA Compliant | No |
Popo Compatible | No |
Item Returns | This item can be returned |
