GEPRC SpeedX2 1002 Motor - No Plug - 18000KV/25000KV
$16.99
Select options for stock status
Only left for same day shipping. Order now!

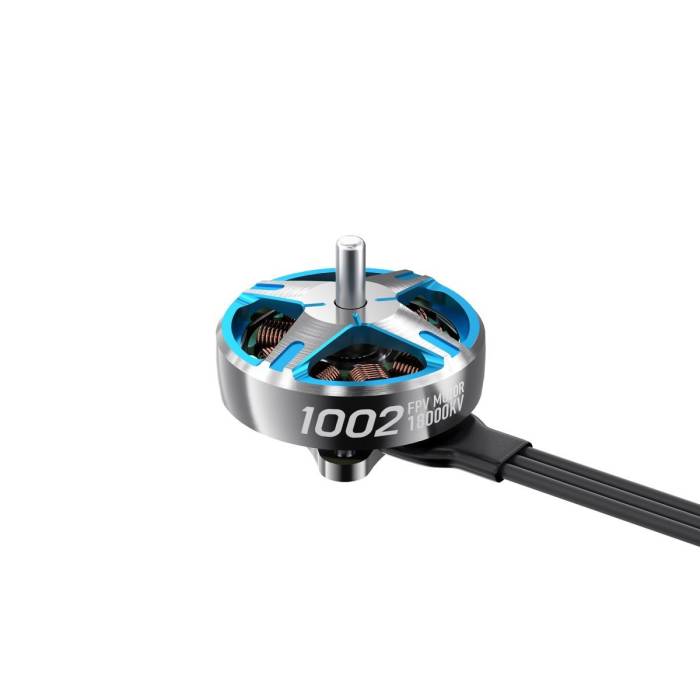

GEPRC SpeedX2 1002 Motor - No Plug - 18000KV/25000KV
Push the limits of your micro drone with the GEPRC SPEEDX2 1002 Motor, available in both 18000KV and 25000KV options. Built for high efficiency and explosive performance, these lightweight brushless motors are perfect for 1.6" to 2" builds.
About this product
Push the limits of your micro drone with the GEPRC SPEEDX2 1002 Motor, available in both 18000KV and 25000KV options. Built for high efficiency and explosive performance, these lightweight brushless motors are perfect for 1.6" to 2" builds. With premium 415zz bearings, precise 9N12P configuration, and sleek Titanium Blue finish, the SPEEDX2 delivers smooth, responsive power whether you're cruising on 1S or punching on 2S (18000KV model).
Features
SPEEDX2 1002 18000KV MOTOR
- Ultra-high 25000KV for explosive 1S performance
- No motor plug—perfect for custom wiring setups
- Precision 415zz bearings for smooth operation
- Compact and lightweight for better flight time
- Ideal for high-speed micro drones (1.6–2")
- Durable Titanium Blue anodized finish
SPEEDX2 1002 25000KV MOTOR
- Balanced 18000KV for versatile 1S–2S micro builds
- Ideal for freestyle or racing on 1.6–2” drones
- Smooth and efficient power delivery
- Lightweight design improves agility
- Durable materials and sleek finish
- Soldered leads for clean installs

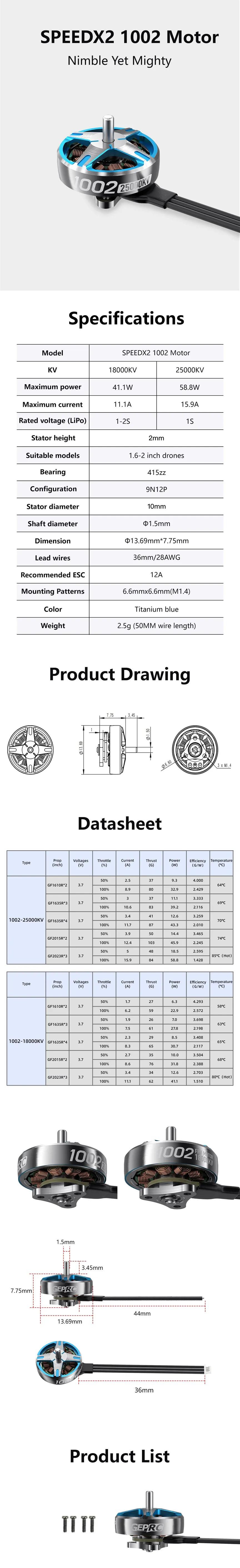

Specifications
SPEEDX2 1002 18000KV MOTOR
- Model: SPEEDX2 1002-18000KV
- Configuration: 9N12P
- Bearing: 415zz
- Stator Diameter: 10mm
- Stator Height: 2mm
- Shaft Diameter: Φ1.5mm
- Motor Dimensions: Φ13.69mm × 7.75mm
- Lead Wires: 28AWG, 36mm length
- Rated Voltage: 1–2S LiPo
- Maximum Power: 41.1W
- Maximum Current: 11.1A
- Recommended ESC: 12A
- Mounting Pattern: 6.6mm x 6.6mm (M1.4)
- Color: Titanium Blue
- Weight: 2.5g (with 50mm wires)
- Recommended Prop Size: 1.6–2 inch
SPEEDX2 1002 25000KV MOTOR
- Model: SPEEDX2 1002-25000KV
- Configuration: 9N12P
- Bearing: 415zz
- Stator Diameter: 10mm
- Stator Height: 2mm
- Shaft Diameter: Φ1.5mm
- Motor Dimensions: Φ13.69mm × 7.75mm
- Lead Wires: 28AWG, 36mm length
- Rated Voltage: 1S LiPo
- Maximum Power: 58.8W
- Maximum Current: 15.9A
- Recommended ESC: 12A
- Mounting Pattern: 6.6mm x 6.6mm (M1.4)
- Color: Titanium Blue
- Weight: 2.5g (with 50mm wires)
- Recommended Prop Size: 1.6–2 inch
Includes
- 1x GEPRC SpeedX2 1002 Motor (Choose 18000KV or 25000KV)
- 1x Hardware Set
More Information
| SKU | 23493 |
|---|---|
| UPC (GTIN) | 723326375019 |
| Manufacturer | GEPRC |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Motor Stator Size | 1002 |
| Popo Compatible | No |
