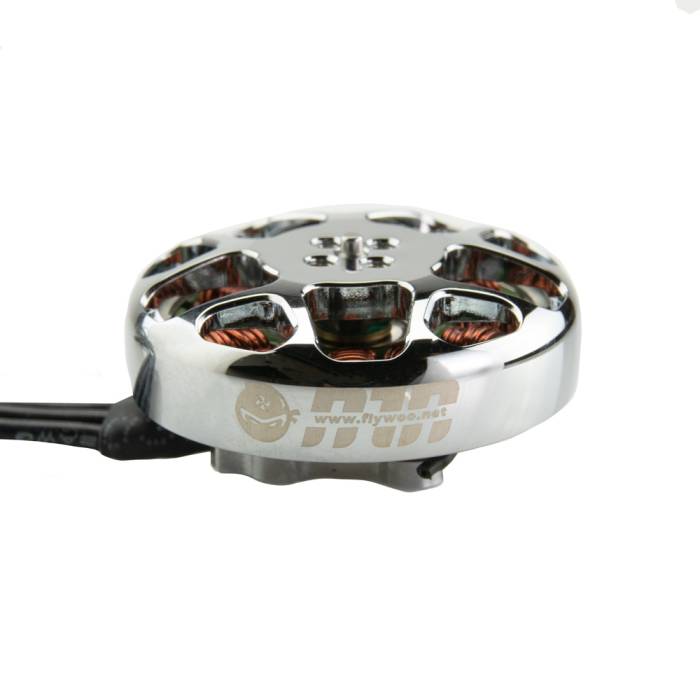

Flywoo NIN V2 2303.5 Motor - 1750KV/3000KV

Flywoo NIN V2 2303.5 Motor - 1750KV/3000KV

In Stock

Only left for same day shipping. Order now!

Options

Flywoo NIN V2 2303.5 Motor - 1750KV/3000KV
The NIN 2303.5 is an ultralight motor made to the highest standards of FPV freestyle racing. This motor has a high-grade unibell design, heat-resistant copper wiring, arc magnets, and an electroplating surfacing process which leaves the NIN Motor with a unique shiny reflection!

About this product

The Flywoo NIN 2303.5 Motor was inspired by the Japanese ninjas, due to how the motor flashes. Flywoo used a brand new design, as well as cool manufacturing techniques to create a motor that looks unique and mysterious. The NIN 2303.5 is an ultralight motor made to the highest standards of FPV freestyle racing.

This motor has a high-grade unibell design, heat-resistant copper wiring, arc magnets, and an electroplating surfacing process which leaves the NIN Motor with a unique shiny reflection! The NIN Motor uses a high-strength titanium alloy shaft and 7075 aluminum alloy shell to help protect the motor from a collision.

Great for long-range, freestyle racing! Perfect for any 3" cinewhoop, 4"-5" toothpick, or 6-7'' long-range drone! Two KVs to choose from...1750KV and 3000KV.

Features

  • Durable 7075 Aluminum Alloy Shell
  • High Strength Titanium Alloy Shaft
  • Electroplating Surfacing Process
  • Curved N52H Arc Magnets
  • Japanese NSK Bearings
  • Resistant Copper Wire
  • Ultra-lightweight

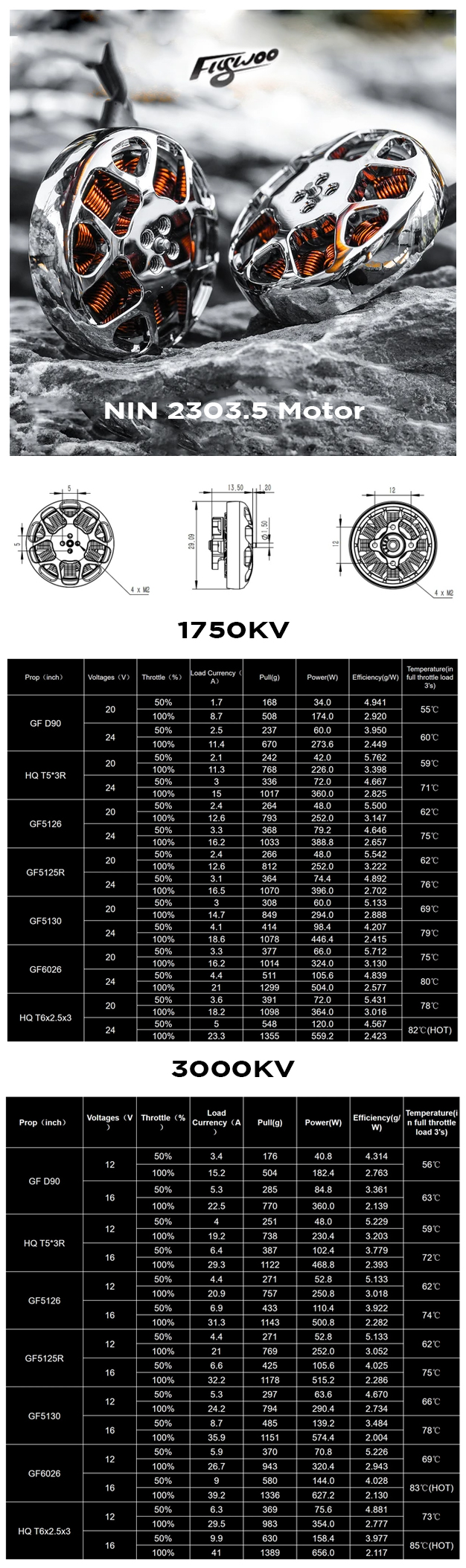

Specifications

KV: 1750KV

  • Max. Efficiency Current: (1.5-3A)>85%
  • Shaft Diameter: 3mm(in) 1.5mm(out)
  • Max Continuous Power(W) 3S : 559
  • Idle current(10): @10V(A) : 0.58
  • Motor Dimension: 29.1x13.5mm
  • Internal Resistance: 173mΩ
  • Max Current(3S): 23.3A
  • No.of Cells(Lipo): 5~6S
  • Stator Diameter: 23mm
  • Configuration:12N14P
  • Stator Length: 3.5mm
  • Wire Length: 3cm
  • Weight(g): 21.5

KV: 3000KV

  • Max. Efficiency Current: (2.5-5A)>85%
  • Shaft Diameter: 3mm(in) 1.5mm(out)
  • Max Continuous Power(W) 3S: 656
  • Motor Dimension: 29.1x13.5mm
  • Idle current(10) @10V(A): 1.25
  • Internal Resistance: 71mΩ
  • No.of Cells(Lipo): 3~4S
  • Stator Diamater: 23mm
  • Wire Length: 3cm Wire
  • Configuration: 12N14P
  • Max Current(3S): 41A
  • Stator Length: 3.5mm
  • Weight(g): 21.5

Includes

  • 1x Flywoo NIN V2 2303.5 Motor (1750KV or 3000KV)
  • 1x Hardware Kit

More Information

SKU 16475
Manufacturer Flywoo
Popo Compatible No
Item Returns This item can be returned
