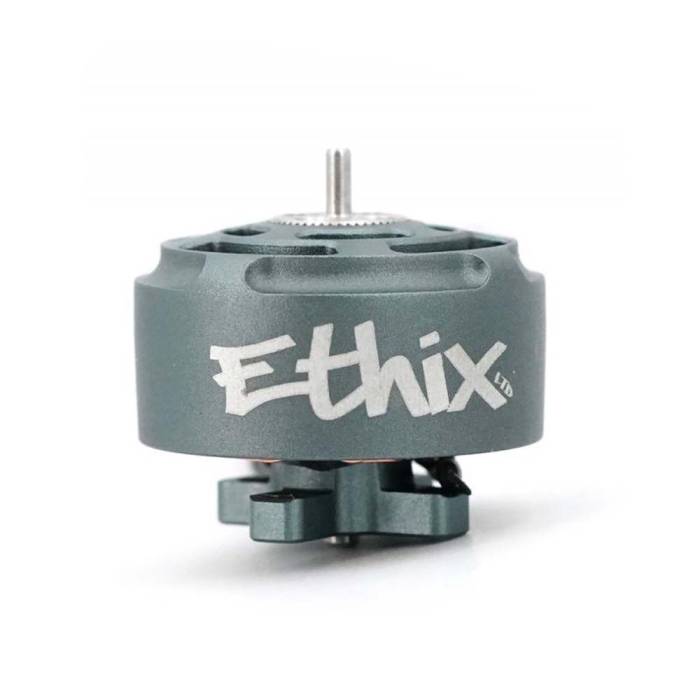

Ethix FSP 1607 2450KV Motor (T-Mount)
Ethix FSP 1607 2450KV Motor (T-Mount)
$17.99
$14.38
Ethix FSP 1607 2450KV Motor (T-Mount)
The Ethix FSP or “full stuffed pigeon” motors were designed for heavier payloads in mind like the Cinerat that features 4" or 5" arm options and other smaller frames that run 4” to 5” lightweight props.
About this product
The Ethix FSP or “full stuffed pigeon” motors were designed for heavier payloads in mind like the Cinerat that features 4" or 5" arm options and other smaller frames that run 4” to 5” lightweight props. The Ethix FSP 1607 2450KV Motor is also a great option for the sub 250g class as well!
6S compatible and available in both t-mount and 5mm shaft options.
Specifications
- Stator Size (Diameter): φ16mmφ16mm
- Kv: 2450
- Magnets N52SH: Curved
- Windings: 15 turn DLRK
- Shaft Length (mm): T mount
- Shaft Diameter (mm): 1.5mm
- Shaft material: steel
- Bearing: 4*2*2.5
- Weight (With Wires) (g): 20g
- Cells (Lipo): 6S
- Max Current (A): 15A
- Max Burst Current (A): 25A
- Internal Resistance (Rm): 0.27mΩ
- Wire Spec (AWG): AWG 24#
- Base Mounting Pattern: 12x12mm
- Base Mounting Thread: M2 Thread
- Motor Overall Dimensions: φ23mmx17.5mm
Includes
- 1 x Ethix FSP 1607 2450KV Motor - T-Mount
More Information
SKU | 17543 |
---|---|
UPC (GTIN) | 764613341041 |
Manufacturer | Ethix |
NDAA Compliant | No |
Popo Compatible | No |
Item Returns | This item can be returned |
