Brotherhobby TC 1404 Motor - 2750KV/3800KV/4600KV
$22.49
Select options for stock status
Only left for same day shipping. Order now!

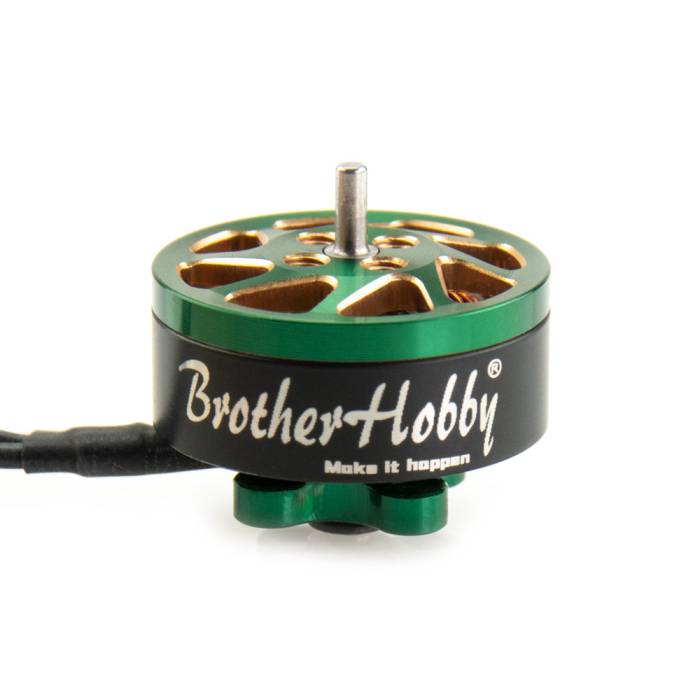

Brotherhobby TC 1404 Motor - 2750KV/3800KV/4600KV
Introducing the BrotherHobby TC 1404 Brushless Motor! This Ultralite motor is suitable for those who love to race and is perfect for 3" micro builds.
About this product
Introducing the BrotherHobby TC 1404 Brushless Motor! This Ultralite motor is suitable for those who love to race and is perfect for 3" micro builds.
Features
- Japanese NSK Bearings
- AL 7075 Base Casing
- Ultra-lightweight
Specifications
- Mounting: T-Mount (M2 holes, 5mm eye to eye)
- Stator: 0.15mm Nippon stell silicon steel
- Wire AWG: 30AWG wire 10cm length
- Bearings: Japanese NSK 5*2*2.5
- KV: 2750KV/3800KV/4600KV
- Rotor: N52H arc magnets
- Bolt Pattern: 9x9mm, M2
- Configuration: 9N12P
- Base casing: Al 7075
- Prop shaft: 1.5mm
- Bell cap: Al 7075
- Weight: 8.7g
Includes
- 1 x Brotherhobby TC 1404 Motor (2750KV/3800KV/4600KV options)
- 4 x M2x6 Base Screws
- 2 x M2x7 Prop Screws
More Information
| SKU | 16471 |
|---|---|
| Manufacturer | BrotherHobby |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Motor Stator Size | 1404 |
| Popo Compatible | No |
