MATEKSYS mLRS 900MHz Module KIT - mR900-30-TX
In Stock
About this product
The MATEKSYS mLRS 900MHz Module Kit - mR900-30-TX offers reliable long-range communication, ideal for drone flights and remote control applications. It includes the mR900-30-TX module, IPEX MHF1 to SMA and RP-SMA adapter cables (5cm each), and a 5V fan (25×25×10mm) for stable operation. Customize your setup as needed.
Note: SMA antenna and 3D-printed case not included.
VIDEO: (Insert Video Title here in Bold)
Features
- Reliable Long-Range Communication
- Adapter Cables Included
- mR900-30-TX Module
- Customizable Setup
- Cooling Fan
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
mR900-30
- 915MHz RF Power: 21dBm (min) / 22dBm / 24dBm / 27dBm / 30dBm (1000mW)
- 868MHz RF Power: 24dBm (min) / 24dBm / 24dBm / 27dBm / 30dBm (1000mW)
- RF Frequency: 900MHz (868MHz, 915MHz FCC)
- Antenna Connector: IPEX MHF-1 to SMA
- STM32G431KB: mLRS firmware
- LoRa SX1262: TCXO
- PA/LNA: SKY68383-11
mRx-TX ADAPTER
- Fan Controller: Built-in 5V running if output power >= 500mW
- Power Supply: 5-13V DC @ JR_PIN3 (VIN)
- Bluetooth Module: Built-in HC-04
- mLRS Status: Red and Green LED
- Modes: DFU mode and Bind One
- Bluetooth status: Blue LED
- TX2: RC IN (CRSF)
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
- (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
Binding
- After powering on, press the bind button (for approximately 4 seconds) on the receiver. When in bind mode, the green and red LEDs will blink alternately at approximately 2.5 Hz.
Binding Documentation - Binding Manual
Firmware
- Target: tx-matek-mr900-30-g431kb-default
- mLRS: Firmware Repository

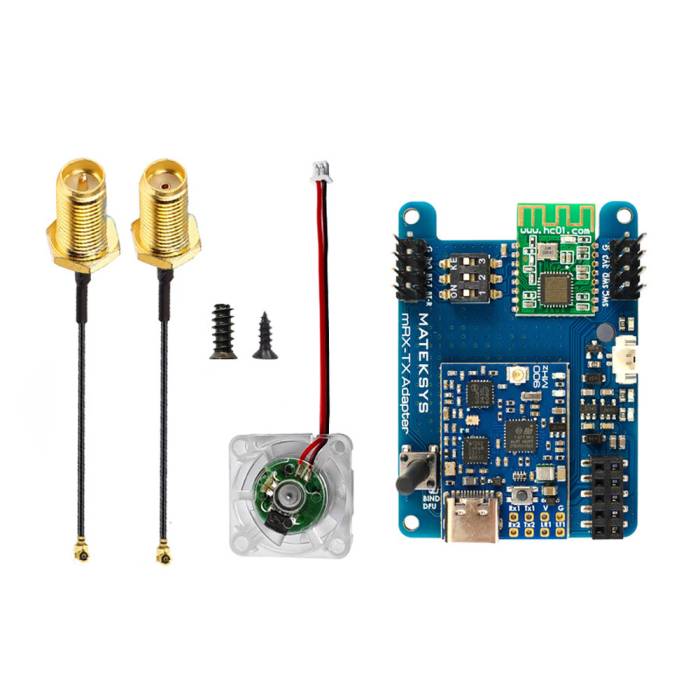

Includes
- 1x MATEKSYS mLRS 900MHz Module Kit - mR900-30-TX
- 1x IPEX MHF1 to RP-SMA adapter cable (5cm)
- 1x IPEX MHF1 to SMA adapter cable (5cm)
- 1x 5V Fan (25×25×10mm) with screws
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
| SKU | 22452 |
|---|---|
| UPC (GTIN) | 724376364800 |
| Manufacturer | MatekSys |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Transmitter Protocol | mLRS |
| Tx Frequencies | 868/915Mhz |
| Transmitter Module Type | JR Module |
