MATEKSYS F405-TE Flight Controller - 30x30
MATEKSYS F405-TE Flight Controller - 30x30
In Stock

About this product

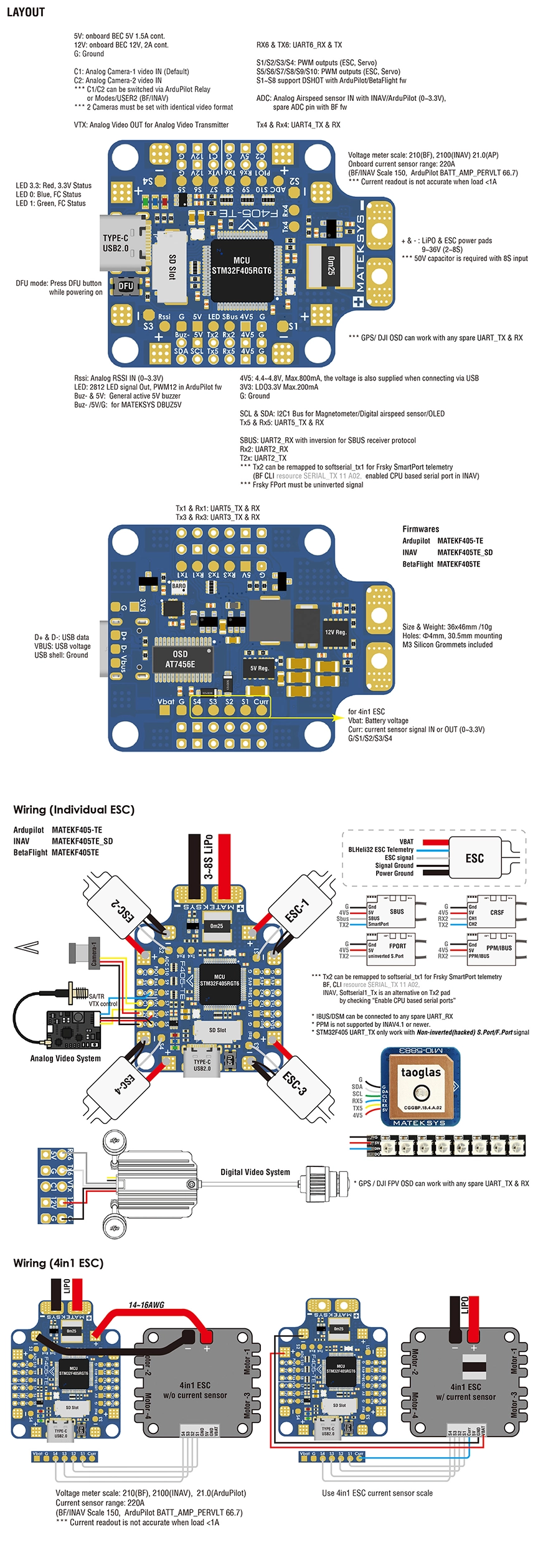

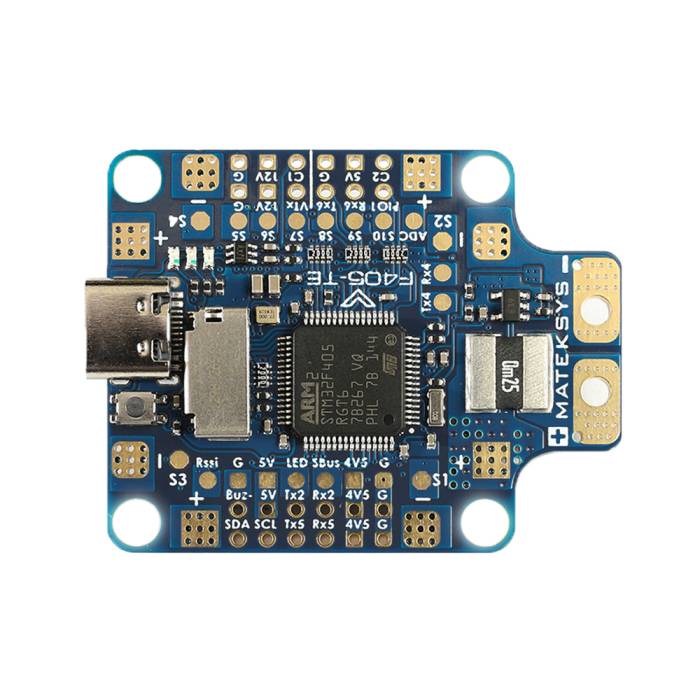

The MATEKSYS F405-TE Flight Controller features a 30.5 x 30.5mm mounting pattern and weighs 10g. It features a Barometer, Micro SD Slot, 6x UARTS, 11x PWM outputs, 9-36V DC IN (3-8S LiPo), 220A Current Sensor, BEC 12V 2A, 5V 1.5A and Dual analog camera signal inputs.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: (Insert Video Title here in Bold)
Features
- OSD: AT7456E(Analog), DJI OSD(Digital)
- Dual analog camera signal inputs
- 11x PWM outputs(S1-10, LED)
- 6x UARTS, 1x softserial_TX
- Beta Flight MATEKF405TE
- 9-36V DC IN (3-8S LiPo)
- ArduPilot MatekF405-TE
- INAV MATEKF405TE SD
- MCU: STM32F405RGT6
- Barometer: SPL06-001
- BEC 12V 2A, 5V 1.5A
- 220A Current Sensor
- IMU: ICM42688-P
- Micro SD Slot
- 2x PINIO
- 1x 12C
- 4x ADC


USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
- PWM Outputs: 11x PWM outputs (8x Dshot compatible with BF/ArduPilot)
- Pads: 1x Group of G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND
- Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
- UARTS: 6x UARTs, 1x Softserial_Tx option(INAV/BF)
- ADC: 4x ADC (VBAT, Current, RSSI, Airspeed)
- Built-in inverter: UART2-RX for SBUS input
- ESC: 4x individual ESC power/signal pads
- Camera: Switchable Dual Camera Input
- MCU: 168MHz STM32F405RGT6
- Blackbox: MicroSD slot (SPI)
- Dimensions: 36 x 46 mm
- IMU: ICM42688-P (SPI)
- Baro: SPL06-001 (I2C)
- PINIO: 1x spare PINIO
- OSD: AT7456E (SPI)
- Weight: 10g
PDB
- Battery Voltage divider: 1K:20K (INAV scale 2100, BF scale 210, ArduPilot BATT_VOLT_MULT 21.0)
- Current Senor: 220A, 3.3V ADC (INAV/BF scale 150, ArduPilot 66.7 A/V)
- PDB: 4x 35A (Max.4x 50A)
- Input: 9~36V (3~8S LiPo)
- LDO 3.3V: 200mA
- BEC: 5V 1.5A
- BEC: 12V 2A
Firmware
- BetaFlight: MATEKF405TE
- INAV: MATEKF405TE_SD
- ArduPilot: MatekF405-TE
IMPORTANT NOTES
- INAV, and DSHOT can not work on S3, S5, and S7 because of DMA clash, pls use ONESHOT or MULTISHOT and calibrate ESC PWM range.
Recommended (Not Included)
- (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
Includes
- 1x MATEKSYS F405-TE Flight Controller - 30x30
- 1x Rubycon ZLH 35V/470uF (Low ESR)
- 6x silicon grommets M4 to M3
- 1x F405-TE
