MATEKSYS Digital AirSpeed Sensor (ASPD-DLVR, CAN, I2C & UAVCAN)

MATEKSYS Digital AirSpeed Sensor (ASPD-DLVR, CAN, I2C & UAVCAN)

Out of Stock

Only left for same day shipping. Order now!
MATEKSYS Digital AirSpeed Sensor (ASPD-DLVR, CAN, I2C & UAVCAN)
The Matek Digital Airspeed Sensor ASPD-DLVR features CAN JST-GH connector, UAVCAN Protocol UART1, UART2, UART13 among many other cool features!

About this product

The Matek Digital Airspeed Sensor ASPD-DLVR features CAN JST-GH connector, UAVCAN Protocol UART1, UART2, UART13 among many other cool features!

  • Specifications & Features
  • ArduPilot AP_Periph F303 CAN node
  • All sensors DLVR-L10D, Industrial temperature range
  • CAN & I2C Interface
  • Typical Platforms: Fixed-Wing, QuadPlane, VTOL
  • CAN JST-GH connector, UAVCAN Protocol
  • I2C JST-GH connector, DLVR-L10D I2C mode (I2C address 0x28)
  • UART1, Firmware update
  • UART2, Spare for external GPS
  • UART3, MSP Protocol (To be supported)
  • CAN bootloader LED, Blue
    • Fast blinking, No communication between CAN node and Flight Controllers
    • Slow blinking, Communicating between CAN node and Flight Controllers

Specifications

  • 3.3V Power LED, Red
  • Input voltage range: 4~6V
  • Power consumption: 60mA
  • Operating Temperatures: -20°C to 85°C
  • Pressure Range: 2500Pa (± 10 inH2O)
  • Burst Pressure: 75kPa
  • Speed Range: ±250 km/h
  • 22mm*22mm*12.5mm
  • 4g

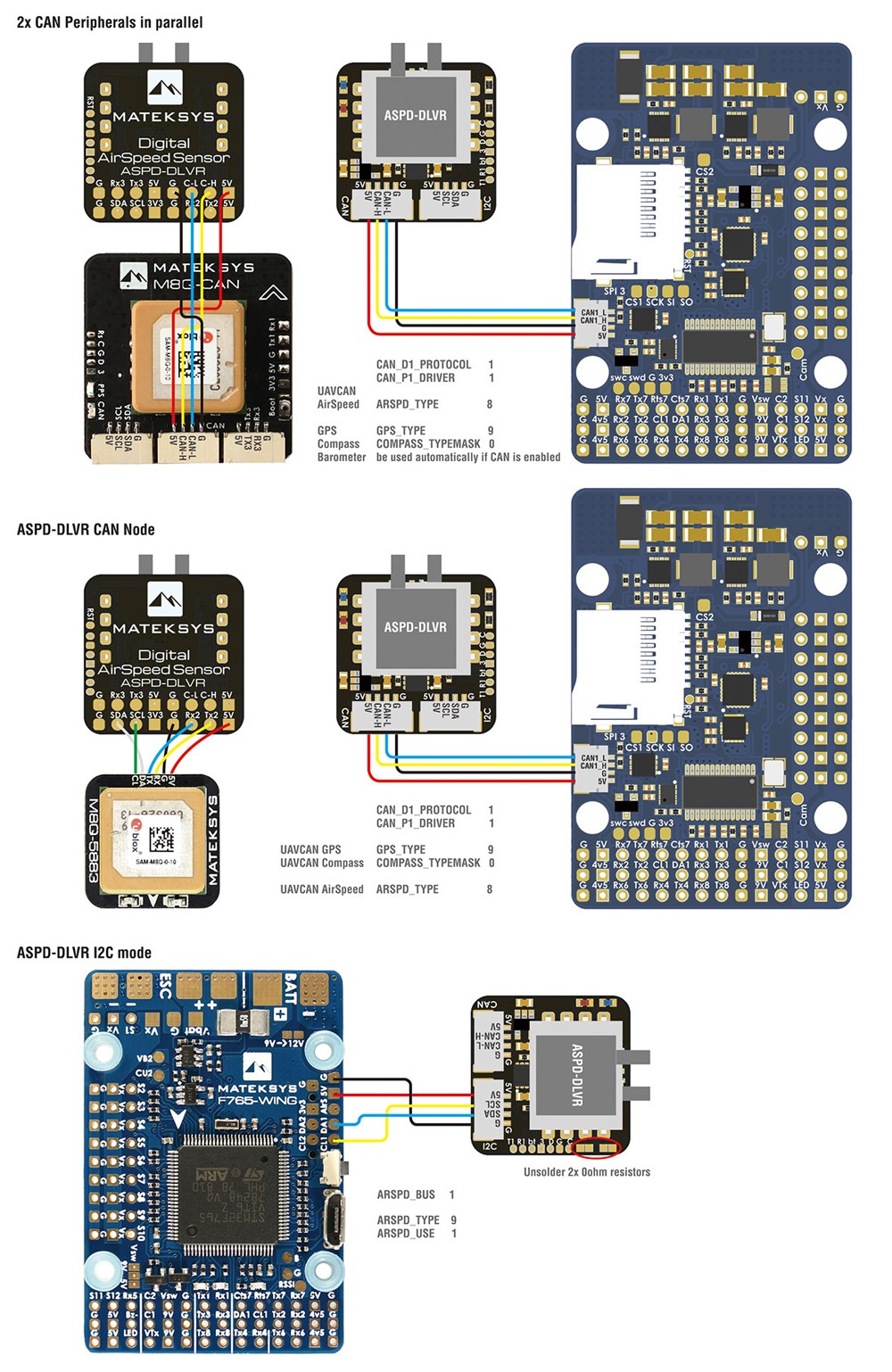

Wiring Diagram

Includes

  • 1 x ASPD-DLVR
  • 2 x JST-GH-4P to JST-GH-4P 20cm silicon wire

More Information

SKU 14238
UPC (GTIN) 789862853152
Manufacturer Matek Systems
Item Returns This item can be returned
