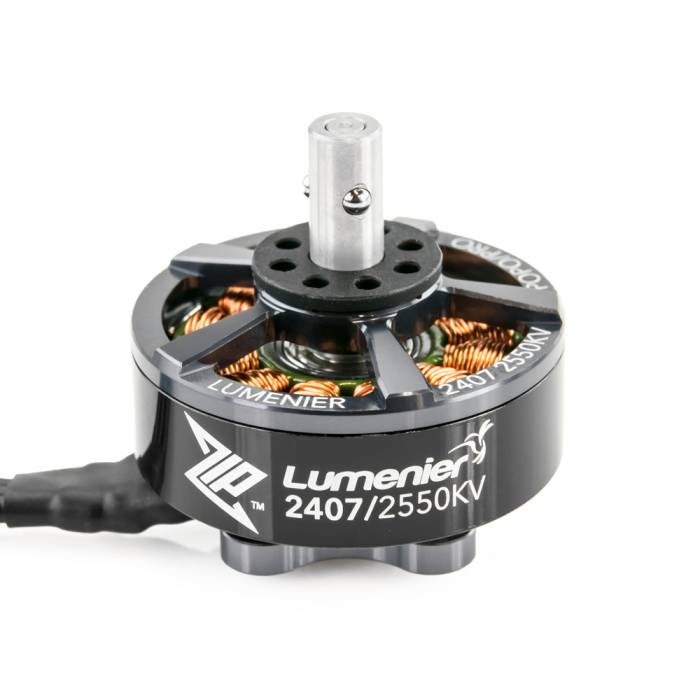

Lumenier ZIP 2407 2550kv POPO Pro Motor

Lumenier ZIP 2407 2550kv POPO Pro Motor

Out of Stock

Only left for same day shipping. Order now!
Earn
Lumenier ZIP 2407 2550kv POPO Pro Motor
The Lumenier ZIP 2407 2550kv POPO Pro Motor. Rated at 2550kv, this motor hits the sweet spot for screaming 4s power with the ability to swing 7" props with ease.

About this product

Lumenier ZIP MotorsIntroducing the ZIP Motor by Lumeneir. This motor has been designed and built for incredible performance and power. Rated at 2550kv, this motor hits the sweet spot for screaming 4s (5" prop) multirotors with the ability to swing up to 7" props with ease.

The new ZIP series by Lumenier is the culmination of years of FPV racing drone motor manufacturing experience. The ZIP motors feature top of the line components and powerful N52SH (high temperature) curved magnets for maximum power. This gives you the best performing motor for your racing or freestyle drone. Lumenier has always been known for their silky smooth motors, and the ZIP motors are no exception. Each motor is dynamically balanced and tested at the factory to ensure a smooth and a perfectly running motor out of the box, resulting in clear and jello-free flight footage.

The new POPO® Pro shaft uses the latest technology to allow you to fly POPO® compatible propellers without the need for any lock nuts! Simply depress the pin, click your prop into place and fly. It's that easy!

This "Pro" version of POPO® removes the threaded shaft area allowing for the shaft and pin to be recessed even further. This improves durability and saves weight. Any simple tool (3mm or narrower) can be used to depress the pin, even a paperclip!

The motor features a minimal lightweight base and hollow steel 4mm shaft with screw termination for easy maintenance. The ZIP 2407 motors come in at 35g continuing Lumenier's tradition of creating some of the lightest racing and freestyle motors on the market.

Carefully assembled and dynamically balanced to the highest standard in Lumenier's climate controlled facility, the Lumenier ZIP motors deploy state of the art glue technology, application robots for even glue distribution, and advanced curing procedures to ensure magnets won't slip -- even under the tremendous demands put on them during drone racing and FPV freestyle events.

Specifications

Kv 2550
Configuration 12N14P
Windings 7 turn DLRK
Termination D (Delta)
Stator Diameter 24mm
Magnets N52SH Curved
Bearing Size 9x4x4
Inner Shaft Diameter 4mm / Steel
Base Mounting Pattern 16x16mm M3 Thread
Motor Dimension 29.5x19.5mm
Weight 36g (short wires)
Idle Current @12.6v (Io) 1.2 A
Cells (LiPo) 4S
Max Continuous Current (A) 60s 35A
Max Burst Current <10s 45A
Max Continuous Power (W) 60s 560W
Internal Resistance (Rm) 180mΩ
Motor Wire Length 150mm / 20AWG
Motor Connection Bare Wire


POPO® Compatible Propellers

Includes

  • 1x Lumenier ZIP 2550Kv POPO Pro Motor
  • 4x Socket Head Screws

    More Information

    SKU 9174
    UPC (GTIN) 721248879714
    Manufacturer Lumenier
    NDAA Compliant No
    Popo Compatible Yes
    Item Returns This item can be returned
