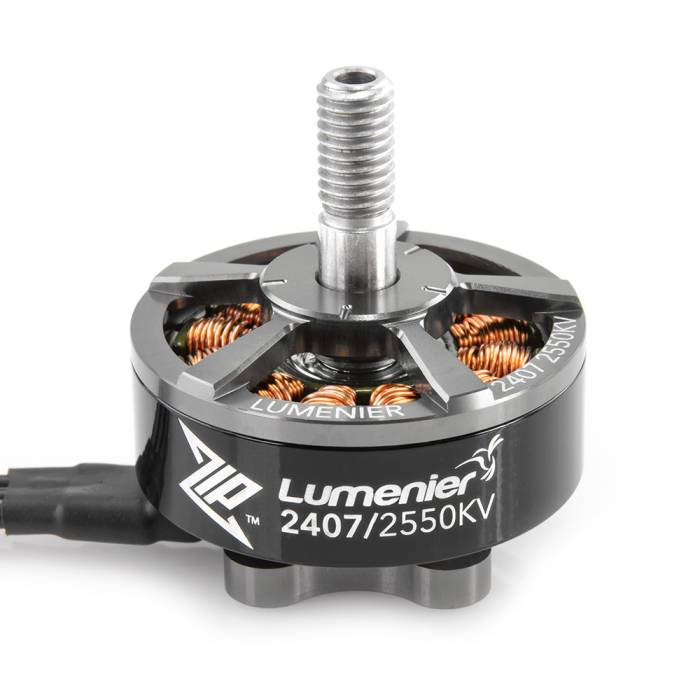

The new ZIP Motor by Lumeneir has been designed and built for incredible performance and power. Rated at 2550kv, this motor hits the sweet spot for screaming 4s (5" prop) multirotors.
The new ZIP series by Lumenier is the culmination of years of FPV racing drone motor manufacturing experience. The ZIP motors feature top of the line components and powerful N52SH (high temperature) curved magnets for maximum power. This gives you the best performing motor for your racing or freestyle drone. Lumenier has always been known for their silky smooth motors, and the ZIP motors are no exception. Each motor is dynamically balanced and tested at the factory to ensure a smooth and a perfectly running motor out of the box, resulting in clear and jello-free flight footage.
The polished steel shaft ZIP motors allow drone pilots to use traditional propellers with nuts. The shafts are made from high quality steel to ensure the best durability possible with threads that will not strip.
The motor features a minimal lightweight base and hollow steel 4mm shaft with screw termination for easy maintenance. The ZIP 2407 motors come in at 35g continuing Lumenier's tradition of creating some of the lightest racing and freestyle motors on the market.
Carefully assembled and dynamically balanced to the highest standard in Lumenier's climate controlled facility, the Lumenier ZIP motors deploy state of the art glue technology, application robots for even glue distribution, and advanced curing procedures to ensure magnets won't slip -- even under the tremendous demands put on them during drone racing and FPV freestyle events.
Kv 2550 Configuration 12N14P Windings 7 turn DLRK Termination D (Delta) Stator Diameter 24mm Magnets N52SH Curved Bearing Size 9x4x4 Inner Shaft Diameter 4mm / Steel Base Mounting Pattern 16x16mm M3 Thread Motor Dimension 29.5x19.5mm Weight 36g (short wires) Idle Current @12.6v (Io) 1.2 A Cells (LiPo) 4S Max Continuous Current (A) 60s 35A Max Burst Current <10s 45A Max Continuous Power (W) 60s 560W Internal Resistance (Rm) 180mΩ Motor Wire Length 150mm / 20AWG Motor Connection Bare Wire
- 1x Lumenier ZIP 2407 2550Kv Motor
- 4x Button Head Screws
- Additional Information
SKU 9279 Manufacturer Lumenier UPC (GTIN) 721248880031 Popo Compatible No
