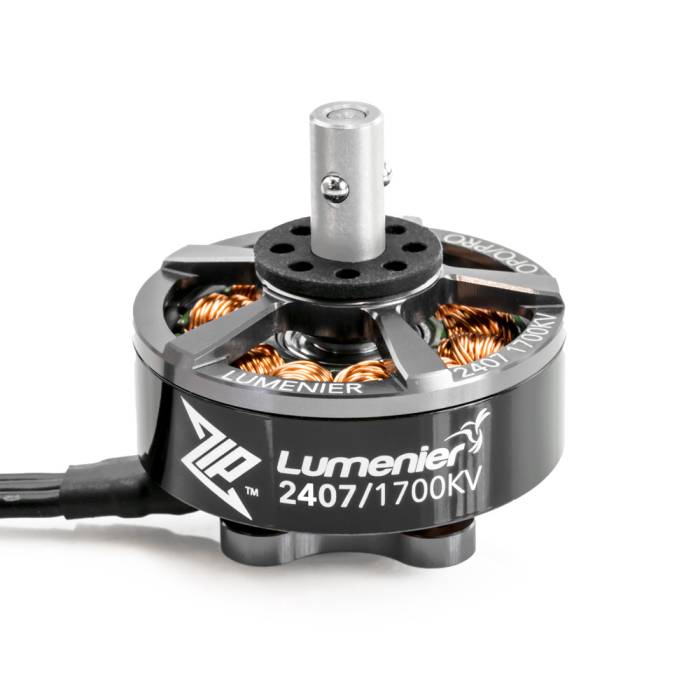

Lumenier ZIP 2407 1700kv POPO Pro Motor
Lumenier ZIP 2407 1700kv POPO Pro Motor
About this product
Introducing the ZIP Motor by Lumeneir. This motor has been designed and built for incredible performance and power. Rated at 1700kv, this motor hits the sweet spot for high-powered 6s (5" prop) multirotors with the ability to swing up to 7" props with ease.
The new ZIP series by Lumenier is the culmination of years of FPV racing drone motor manufacturing experience. The ZIP motors feature top of the line components and powerful N52SH (high temperature) curved magnets for maximum power. This gives you the best performing motor for your racing or freestyle drone. Lumenier has always been known for their silky smooth motors, and the ZIP motors are no exception. Each motor is dynamically balanced and tested at the factory to ensure a smooth and a perfectly running motor out of the box, resulting in clear and jello-free flight footage.
The new POPO® Pro shaft uses the latest technology to allow you to fly POPO® compatible propellers without the need for any lock nuts! Simply depress the pin, click your prop into place and fly. It's that easy!
This "Pro" version of POPO® removes the threaded shaft area allowing for the shaft and pin to be recessed even further. This improves durability and saves weight. Any simple tool (3mm or narrower) can be used to depress the pin, even a paperclip!
The motor features a minimal lightweight base and hollow steel 4mm shaft with screw termination for easy maintenance. The ZIP 2407 motors come in at 35g continuing Lumenier's tradition of creating some of the lightest racing and freestyle motors on the market.
Carefully assembled and dynamically balanced to the highest standard in Lumenier's climate controlled facility, the Lumenier ZIP motors deploy state of the art glue technology, application robots for even glue distribution, and advanced curing procedures to ensure magnets won't slip -- even under the tremendous demands put on them during drone racing and FPV freestyle events.
Specifications
| Kv | 1700 |
| Configuration | 12N14P |
| Windings | 7 turn DLRK |
| Termination | D (Delta) |
| Stator Diameter | 24mm |
| Magnets | N52SH Curved |
| Bearing Size | 9x4x4 |
| Inner Shaft Diameter | 4mm / Steel |
| Base Mounting Pattern | 16x16mm M3 Thread |
| Motor Dimension | 29.5x19.5mm |
| Weight | 36g (short wires) |
| Idle Current @12.6v (Io) | 1.2 A |
| Cells (LiPo) | 4-6S |
| Max Continuous Current (A) 60s | 35A |
| Max Burst Current <10s | 45A |
| Max Continuous Power (W) 60s | 560W |
| Internal Resistance (Rm) | 180mΩ |
| Motor Wire Length | 150mm / 20AWG |
| Motor Connection | Bare Wire |
POPO® Compatible Propellers
Includes
- 1x Lumenier ZIP 1700Kv POPO Pro Motor
- 4x Socket Head Screws
More Information
| SKU | 8743 |
|---|---|
| UPC (GTIN) | 721248879080 |
| Manufacturer | Lumenier |
| Popo Compatible | Yes |
| Item Returns | This item can be returned |
