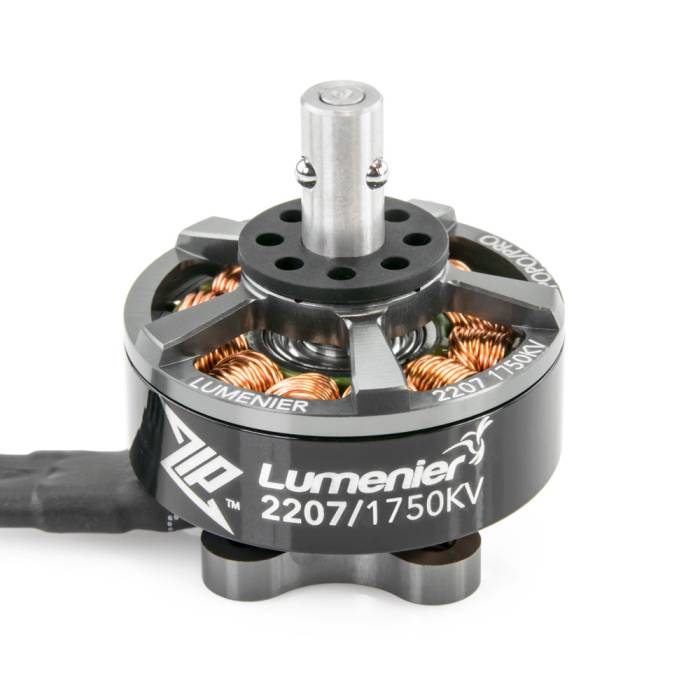

Introducing the ZIP Motor by Lumeneir. This motor has been designed and built for incredible performance and power. Rated at 1750kv, this motor hits the sweet spot for high-powered 6s (5" prop) multirotors with the ability to swing up to 7" props with ease.
The new ZIP series by Lumenier is the culmination of years of FPV racing drone motor manufacturing experience. The ZIP motors feature top of the line components and powerful N52SH (high temperature) curved magnets for maximum power. This gives you the best performing motor for your racing or freestyle drone. Lumenier has always been known for their silky smooth motors, and the ZIP motors are no exception. Each motor is dynamically balanced and tested at the factory to ensure a smooth and a perfectly running motor out of the box, resulting in clear and jello-free flight footage.
The new POPO® Pro shaft uses the latest technology to allow you to fly POPO® compatible propellers without the need for any lock nuts! Simply depress the pin, click your prop into place and fly. It's that easy!
This "Pro" version of POPO® removes the threaded shaft area allowing for the shaft and pin to be recessed even further. This improves durability and saves weight. Any simple tool (3mm or narrower) can be used to depress the pin, even a paperclip!
The motor features a minimal lightweight base and hollow steel 4mm shaft with screw termination for easy maintenance. The ZIP 2207 motors come in at 32g continuing Lumenier's tradition of creating some of the lightest racing and freestyle motors on the market.
Carefully assembled and dynamically balanced to the highest standard in Lumenier's climate controlled facility, the Lumenier ZIP motors deploy state of the art glue technology, application robots for even glue distribution, and advanced curing procedures to ensure magnets won't slip -- even under the tremendous demands put on them during drone racing and FPV freestyle events.
Kv 1750 Configuration 12N14P Windings 7 turn DLRK Termination D (Delta) Stator Diameter 22mm Magnets N52SH Curved Bearing Size 9x4x4 Inner Shaft Diameter 4mm / Steel Base Mounting Pattern 16x16mm M3 Thread Motor Dimension 27x19.5mm Weight 32g (short wires) Idle Current @12.6v (Io) 1.2 A Cells (LiPo) 6S Max Continuous Current (A) 60s 35A Max Burst Current <10s 45A Max Continuous Power (W) 60s 560W Internal Resistance (Rm) 180mΩ Motor Wire Length 150mm / 20AWG Motor Connection Bare Wire
POPO® Compatible Propellers
- 1x Lumenier ZIP 2207 1750Kv POPO Pro Motor
- 4x Socket Head Screws
- 1x POPO Tool
- Additional Information
SKU 9271 Manufacturer Lumenier UPC (GTIN) 721248880017 Popo Compatible Yes
