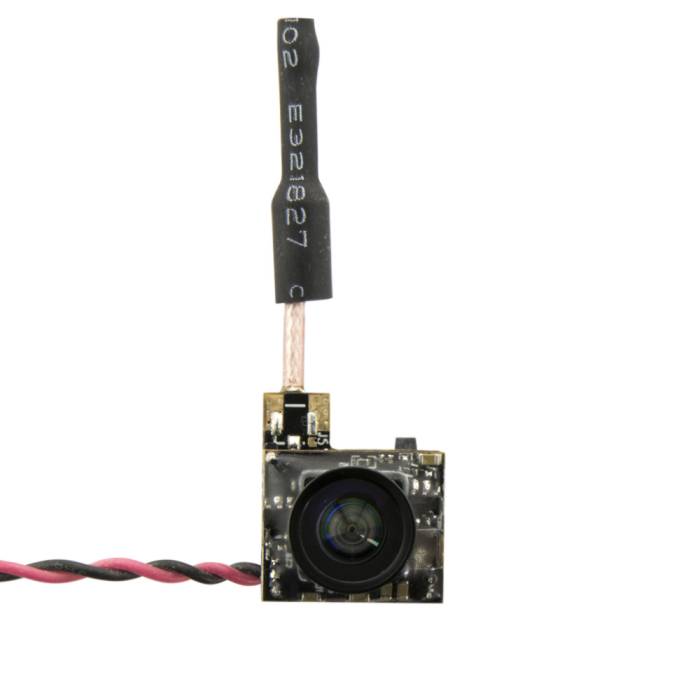

Lumenier Super Mini 5.8GHz FPV Transmitter + 600TVL Camera + Dipole Antenna

Quick Overview

Lumenier Super Mini 5.8GHz 46CH FPV Transmitter + 600TVL Camera + Antenna (Dipole Antenna).
In Stock

Regular Price: $29.99

Special Price $24.99

Details

This is the Lumenier Super Mini 5.8GHz FPV Transmitter + 600TVL Camera + Dipole Antenna. This mini Camera / VTX features 5 bands on the 5GHz band, and it has an easy to read LCD on the back of the unit. The easy to read LCD will tell you which band and channel you are currently on. The 25mW of output power on the VTX gives this unit a much stronger FPV signal, allowing for longer range flights and better penetration through object vs. a standard 25mW.

The unit is ultra-lightweight, so it is easy to place on any aircraft without affecting the COG. Most multi-rotors wouldn’t even notice it was there. This Camera / VTX combo is the perfect choice for adding FPV to the Blade Inductrix micro quadcopter.

Features

  • Super small and lightweight
  • Good quality image with zero latency
  • 37 channels with raceband
  • Button control instead of switches to change channels
  • Easy to install,plug and play
  • Power by 1S lipo battery

Specss

  • Output power: 25mW
  • Input voltage: 3.3V - 5.5V
  • Current consumption: 600TVL
  • Field of view: 120°
  • Video Format: NTSC
  • Antenna: Dipole whip antenna
  • Freqency: 5.8GHz 5 bands with Raceband: 5658-5925 MHZ
  • Size: 15*12.5mm(L*W)
  • Weight: 2.8g(without antenna and cable)

Frequency and Channel Frequency

FR / CHCH1CH2CH3CH4CH5CH6CH7CH8
Band 1 5865M 5845M 5825M 5805M 5785M 5765M 5745M 5725M
Band 2 5733M 5752M 5771M 5790M 5809M 5828M 5847M 5866M
Band 3 5705M 5685M 5665M 5885M 5905M 5925M
Band 4 5740M 5760M 5780M 5800M 5820M 5840M 5860M 5880M
Band 5 5658M 5695M 5732M 5769M 5806M 5843M 5880M 5917M

Includes

  • Lumenier Super Mini 5.8GHz FPV Transmitter + 600TVL Camera + Antenna
  • Power cable
  • User Manual

Additional Information

SKU 7000
Manufacturer Lumenier
  1. Be the first to review this product

Write Your Own Review

Only registered users can write reviews. Please, log in or register

FPV Regulatory Notice

The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a "HAM" amateur radio license. Learn more about HAM licenses. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government’s rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. GetFPV cannot be held responsible for your actions if you purchase and/or use this product in violation of your government's regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.
