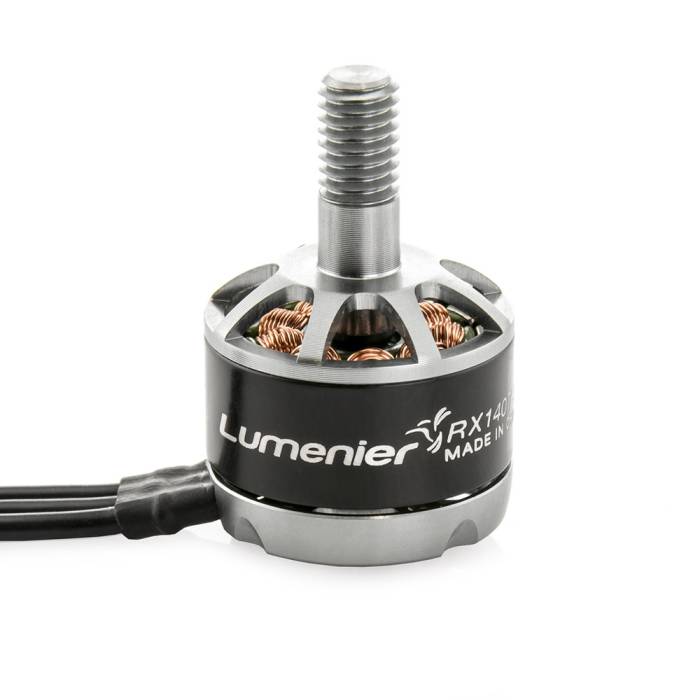

Lumenier brushless multirotor motors were designed to give you top of the line performance and value for your RC models. This Lumenier RX1407 3200Kv motor has been engineered from the ground up, and it is the perfect blend of elegant design and high end performance. By using high quality bearings and CNC precision machined parts, each Lumenier motor provides silky smooth, reliable power.
This micro sized, high Kv motor is designed for small aircraft running 3" to 4" propellers.
The Lumenier RX1407 3200Kv motors have a strong 2mm internal shaft which has been machine pressed into the upper bell of the motor. No longer is there a need for micro sized set screws that loosen over time. The motor features an integrated 5mm threaded prop adapter allowing you to directly mount the propeller to the motor without the need of a separate prop adapter, saving you weight. An ultra-lightweight, black anodized, low profile, flanged aluminum lock nut is also included with each motor ensuring your propellers do not come loose during flight. Each motor comes with 4x M2x5 screws for mounting on most airframes. The motor wire length is 100mm, precut and tinned to make for easy installation on most micro builds where space is tight.
- 1x Lumenier RX1407 3800Kv Motor
- 1x Lumenier M5 Black Aluminum Low Profile Lock Nut (CW)
- 4x M2x5 Button head screws
Kv 3200 Configuration 9N12P Termination D (Delta) Stator Diameter 14mm Shaft Diameter 2mm Motor Dimension 18x15mm Weight 14g Idle Current @12.6v (Io) 0.3A Cells (LiPo) 2-4S Max Continuous Current (A) 60s 15A Max Burst Current <10s 20A Max Continuous Power (W) 60s 220W Max Efficiency Current (1.5-4A) 71% Internal Resistance (Rm) 62mΩ Motor Wire Length 100mm Motor Connection Bare Wire
- Additional Information
SKU 7520 Manufacturer Lumenier UPC (GTIN) 652118490145 Popo Compatible No
