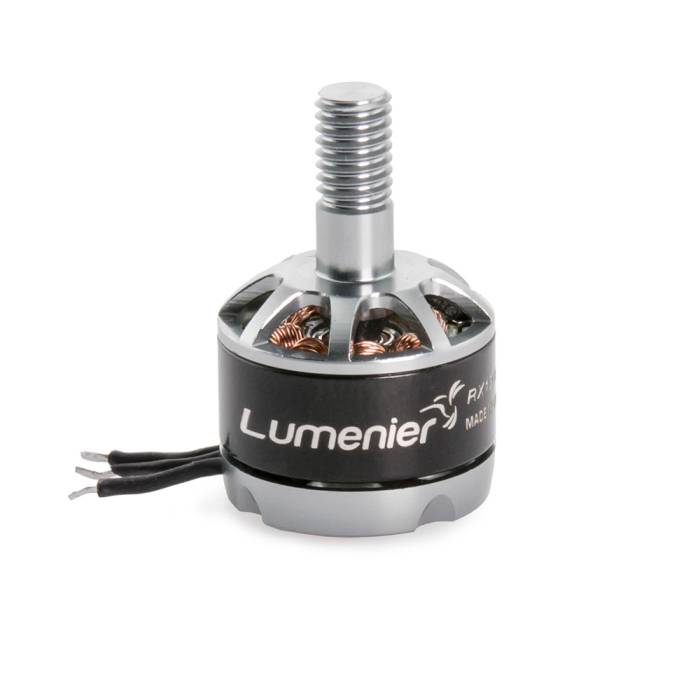

Lumenier RX1306-7 4000Kv Motor
The RX1306-7 4000Kv Multirotor Motor by Lumenier. A high quality multirotor motor with top of the line performance.

About this product

Lumenier brushless multirotor motors were designed to give you top of the line performance and value for your RC models. This Lumenier RX1306-7 4000Kv motor has been engineered from the ground up, and it is the perfect blend of elegant design and high end performance. By using high quality bearings and CNC precision machined parts, each Lumenier motor provides silky smooth, reliable power.

This micro sized, high Kv motor is designed for small aircraft running 3" propellers.

The Lumenier RX1306-7 4000Kv motors have a strong 2mm internal shaft which has been machine pressed into the upper bell of the motor. No longer is there a need for micro sized set screws that loosen over time. The motor features an integrated 5mm threaded prop adapter allowing you to directly mount the propeller to the motor without the need of a separate prop adapter, saving you weight. An ultra-lightweight, black anodized, low profile, flanged aluminum lock nut is also included with each motor ensuring your propellers do not come loose during flight. Each motor comes with 4x M2x5 screws for mounting on most airframes. The motor wire length is 10mm, precut and tinned to make for easy installation on most micro builds where space is tight. Each motor includes 3 extra pieces of 75mm motor wire as well in case you need to extend the motor leads, and heat shrink is included for your convenience.


  • 1x Lumenier RX1306-7 4000Kv Motor
  • 1x Lumenier M5 Black Aluminum Low Profile Lock Nut (CW)
  • 3x 75mm 22AWG motor wire and heat shrink
  • 4x M2x5 Button head screws


Kv 4000
Configuration 9N12P
Windings 7 turn DLRK
Termination D (Delta)
Stator Diameter 13mm
Shaft Diameter 2mm
Motor Dimension 18x15mm
Weight 11g
Idle Current @12.6v (Io) 0.2A
Cells (LiPo) 2-3S
Max Continuous Current (A) 60s 10A
Max Burst Current <10s 16A
Max Continuous Power (W) 60s 120W
Max Efficiency Current (1.5-4A) 71%
Internal Resistance (Rm) 62mΩ
Motor Wire Length 10mm
Motor Connection Bare Wire
