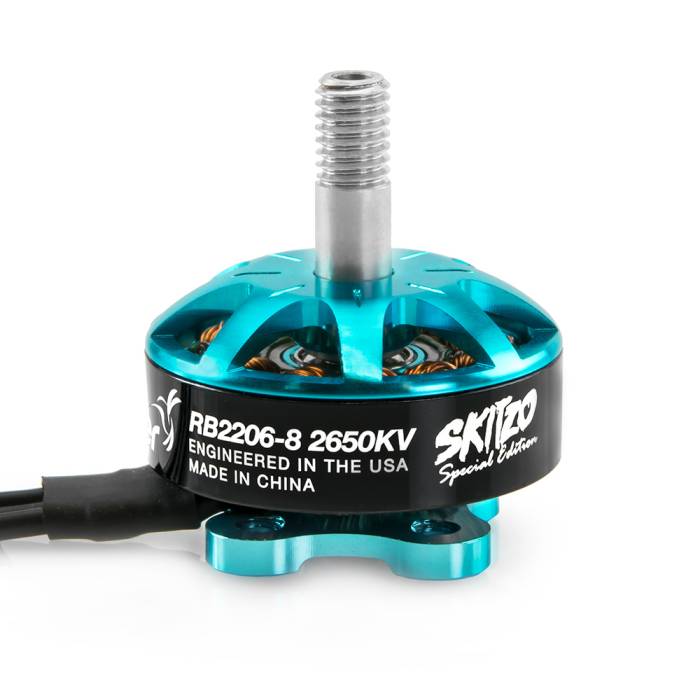

Lumenier RB2206-8 2650KV SKITZO Motor

Lumenier RB2206-8 2650KV SKITZO Motor

More Views

Lumenier RB2206-8 2650KV SKITZO Motor

The RB2206-8 2650KV SKITZO Motor by Lumenier. A smooth flying motor with top of the line performance.

Will Not Restock

Regular Price: $24.99

Special Price $22.49

Description

Skitzo Special EditionThe Lumenier RB2206 2650KV "Skitzo" limited edition motors are super smooth and have incredible power in a lightweight package.

With a 2650kv rating and powerful 2206 stator size the new RB2206 motor fits right in for drone racing and FPV freestyle. With this new 2206, Lumenier now offers very granular Skitzo motor choices from 2204, 2205, and 2206 across various kv ratings providing you great choice when specifying your build components. The new 2206 motors come in at 27g continuing Lumenier's tradition of creating some of the lightest racing/freestyle motors on the market.

The new lightweight desing uses a minimal base with a 16x16mm mounting pattern, popular with today's racing and freestyle drones. The motor also has a steel through shaft for added crash durability. You'll never have to worry about threads stripping on this shaft.

Carefully assembled and dynamically balanced in Lumenier's climate controlled facility, the Lumenier 2206 motors deploy new glue technology, application robots for even glue distribution, and advanced curing procedures to ensure magnets won't slip -- even under the tremendous demands put on them during drone racing and FPV freestyle events.

"Super responsive motors, silky smooth, and ready to rip!"

-Skitzo

Includes

  • 1x Lumenier RB2206-8 2650KV SKITZO Motor
  • 1x Lumenier M5 Black Aluminum Low Profile Lock Nut (CW)
  • 4x M3x6 Button head screws

Specifications

Kv 2650
Bearings Stainless Steel Bearings
Configuration 12N14P
Windings 8 turn DLRK
Termination D (Delta)
Stator Diameter 22mm
Shaft Diameter 3mm
Motor Dimension 27x18mm
Weight 27g
Idle Current @12.6v (Io) 0.76 A
Cells (LiPo) 2-4S
Max Continuous Current (A) 60s 25A
Max Burst Current <10s 35A
Max Continuous Power (W) 60s 400W
Max Efficiency Current (2.2-6A) 80%
Internal Resistance (Rm) 240mΩ
Motor Wire Length 160mm
Motor Connection Bare Wire



Videos

Coming soon...

Additional Information
SKU 8714
Manufacturer Lumenier
UPC (GTIN) 680138770985
Popo Compatible No
