Lumenier QAV-R LED Distribution Board
The Lumenier QAV-R LED Power Distribution X Bottom Brace is designed to work in tandem with the Lumenier QAV-R airframe, RGB Tail and RGB LED sticks.

About this product

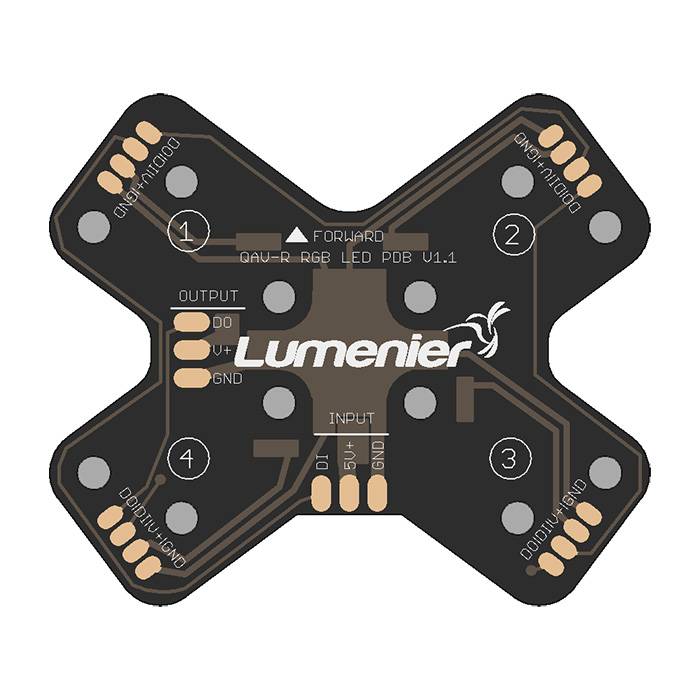

A component of the Lumenier LED Lighting systen, this LED Distribution Board bolts onto the bottom of the QAV-R airframe series and distributes 5v power and the needed signal to 4 Arm LED boards (sold separately). The LED Distribution Board has 1 INPUT (Ground, 5V, Signal) and 4 Arm LED pads (Ground, 5V, Signal In, Signal Out). The LED Distribution Board also provides one additional set of pads as an OUTPUT to add additional LED boards (any RGB LED board that is running on 5V and uses the typical RGB LED signal). The LED Distribution board comes with the needed screws to bold the board to the underside of the QAV-R airframe series.

We recommend that you cover the solder pads with insulation such as electrical tape or liquid electrical tape.

Other products in the the Lumenier LED Lighting system

  • LED Tail Controller Board
  • LED Arm Board


  • Length: 54mm
  • Width: 45mm
  • Weight: 4g
  • 2mm thick PCB
  • Easily distribute power and signal to digital RBG LEDs


  • 1x The Lumenier QAV-R LED Power Distribution X Bottom Brace
  • 1x 1x3 Pin Header
  • 1x 7cm Male to Male servo cable



More Information

SKU 6005
UPC (GTIN) 709951468043
Manufacturer Lumenier
