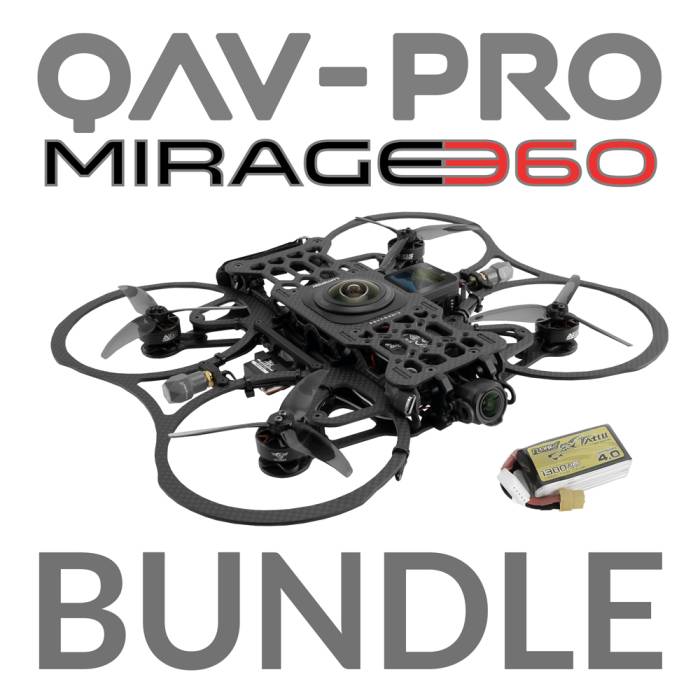

Lumenier QAV-PRO Mirage 360 4” Cinequads Edition RTF Bundle

Lumenier QAV-PRO Mirage 360 4” Cinequads Edition RTF Bundle

As low as $1,099.99

Select options for stock status

Only left for same day shipping. Order now!
Lumenier QAV-PRO Mirage 360 4” Cinequads Edition RTF Bundle
Introducing the Lumenier QAV-PRO Mirage 360 - Cinequads Edition, a state-of-the-art 4-inch prop-guarded drone crafted for professional FPV filmmaking.

Customize Lumenier QAV-PRO Mirage 360 4” Cinequads Edition RTF Bundle

Lumenier QAV-PRO Mirage 360 4” Cinequads Edition RTF   + $1,099.99
In Stock

Your Customization

Lumenier QAV-PRO Mirage 360 4” Cinequads Edition RTF Bundle

Summary

About this product

Introducing the Lumenier QAV-PRO Mirage 360 - Cinequads Edition Bundle, a state-of-the-art 4-inch prop-guarded drone crafted for professional FPV filmmaking. This exceptional drone elevates cinematography, offering the unmatched capability to capture captivating 360-degree footage while maintaining complete invisibility. Enter a realm of cinematic possibilities with the Mirage 360, and unleash your creativity with seamless top-down and reverse shooting, or achieve smooth transitions from any direction, effortlessly integrating every angle into the frame.

  • Endorsed by Cineqauds, preloaded with approved tune and settings.
  • Each Mirage 360 is hand-built, tuned, and test-flown in the USA.

"Elevate your FPV filmmaking with the Lumenier QAV-PRO Mirage 360, where cutting-edge technology meets the visionary German design and engineering of Boris Jelinek for a truly creative yet powerful cinematic tool."

-Cinequads

Note: Insta 360 Camera and LiPo Battery are not included; please choose them as a bundle option if needed. Some items in your bundle may not be in stock at the time of purchase. Be sure to check the shopping cart to see the stock status of each item. Your order will ship once all items are in stock. We suggest placing a separate order for back-ordered items so your in-stock order can immediately ship.

VIDEO: Introducing Insta360 ONE RS 1-Inch 360 Edition Co-Engineered with Leica

Features

  • Aluminum SMA Mounts for two Lumenier Micro AXII Antennas for high gain signal performance
  • Aluminum O3-Camera mount isolated and adjustable from -45 to +45 degree
  • Symmetric sandwich motor arms for max rigidity and minimal masking
  • Designed in Germany by Cinequads in collaboration with Lumenier
  • High-Quality Carbon Fiber with chamfered and coated edges
  • Powerful BEC to power the Insta360 ONE RS separately
  • Aluminum rear-end structural brace with LiPo Strap
  • Metal-geared servo carbon fiber landing gear
  • Hidden Battery cage with XT60 Connector
  • 6K 360° footage with Insta360 ONE RS
  • 4K footage with DJI O3 FPV System
  • Ducted for indoor/outdoor safety
  • Magnetic TPU Lens Protectors
  • Wireless FC and ESC flashing
  • Aluminum M3x10mm Spacer
  • Aluminum core elements
  • Aluminum Servo Mount
  • Crossfire Receiver

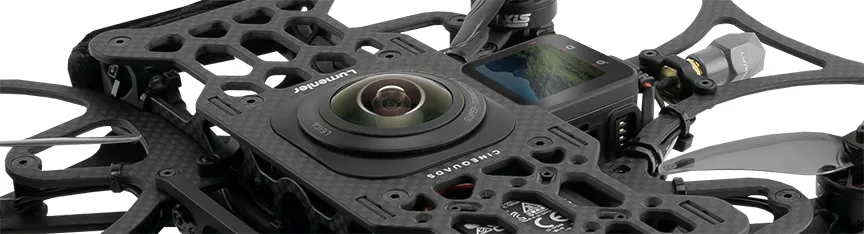

ENGINEERED FOR THE INSTA360 ONE RS CAMERA

Featuring the advanced Insta360 ONE RS co-engineered with Leica and equipped with two 1-inch CMOS sensors, the Mirage 360 ensures exceptional image quality and an impressive dynamic range. This collaboration enhances your creative pursuits, pushing the boundaries of 360° FPV filmmaking and enabling perfect reframing in post-production.

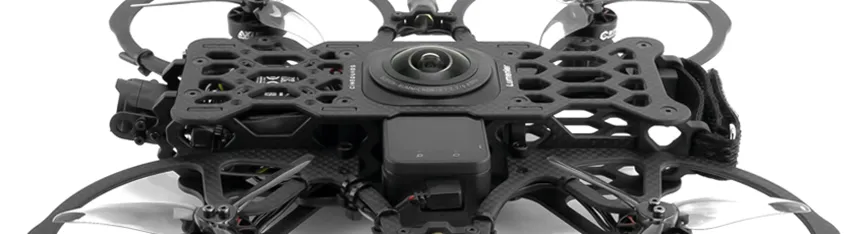

INNOVATIVE DESIGN WITH INVISIBILITY, DURABILITY, BALANCE, AND EASY HANDLING

The innovative design of the QAV-PRO Mirage 360 results from meticulous development, achieving the ideal balance between invisibility, durability, and ease of handling on set. The placement of lenses at the precise center of the frame, along with a uniquely designed guard plate, ensures minimal interference with the camera frame. This design incorporates a sturdy sandwich and core structure, providing low-resonance rigidity for a flawless filming experience. The flight controller, AIO, and Insta360 camera have great accessibility and ease of use, including full camera button use, sim card swapping, and control. An internal BEC has been engineered within the drone, allowing the 360° camera to be powered by the LiPo battery without overheating. Overall, flight time is about 5 minutes.

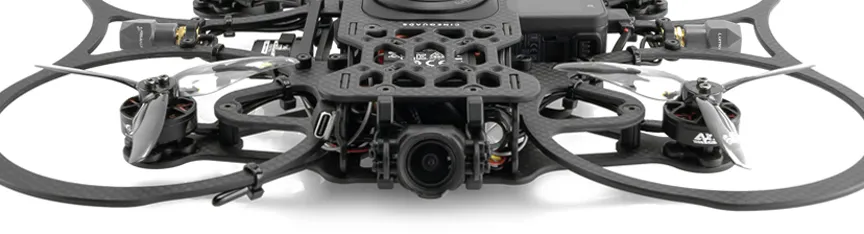

4K FOOTAGE WITH DJI O3 AIR UNIT

Integrating DJI's cutting-edge video transmission technology into a lightweight and compact body, the DJI O3 Air Unit features state-of-the-art DJI transmission technology enclosed in a light, compact design. See for yourself that it's possible! The DJI O3 Air Unit will provide you with excellent 4K image quality over long distances and is distinguished by ultra-low latency, thanks to which you will take your FPV experience to a whole new level. The device is a real breakthrough in imaging performance - it offers a 1/1.7-inch sensor, flagship video technology, 155° super-wide field of view, and more. It is also distinguished by its compatibility with a wide range of products. Get a reliable image transmission tool, unleash your creativity, and enjoy even more sky-high travels!

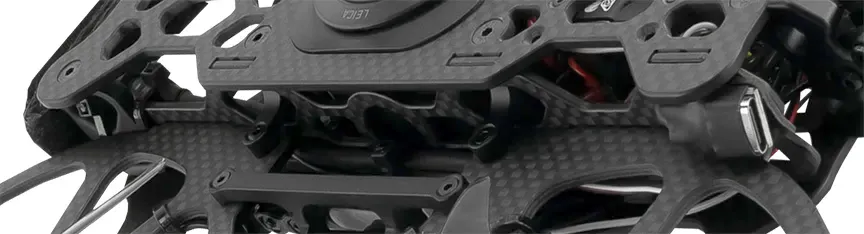

PROFESSIONAL PREMIUM MATERIALS

The QAV-PRO Mirage 360 has customized professional aluminum and carbon fiber parts.  This frame features chamfered edges and clear-coated carbon fiber, creating a sealed matte finish. The durable carbon fiber provides a low resonance frame design with good rigidity for smooth flights and footage.

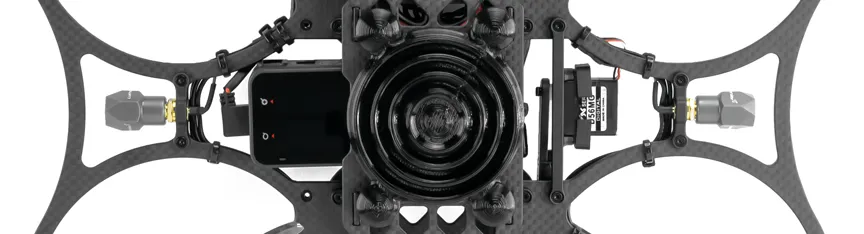

MAGNETIC TPU LENS COVERS

Custom magnetized TPU lens covers allow for quick release and protect your lenses from bumps and scratches while transporting or storing.

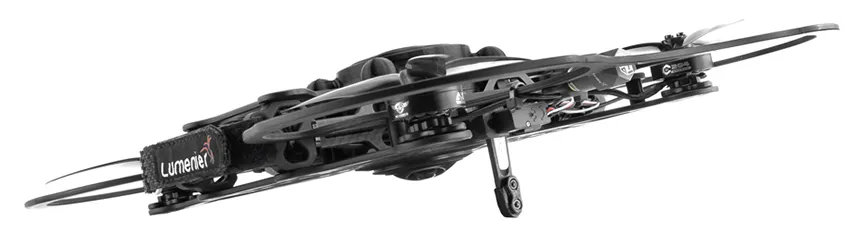

RETRACTABLE LANDING GEAR

Made of lightweight premium carbon fiber and durable aluminum parts, the retractable landing gear is powered by a single servo gear and fully supports the drone while landing. This quality component provides protection to both the frame and camera for peace of mind.

Specifications

  • Antenna: Lumenier Micro AXII HD 2 Antenna 5.8GHz Stubby - RP-SMA
  • Dimensions: 300x260x30 without Camera / 300x260x38 with Camera
  • AIO: SpeedyBee F745 AIO Board - F745 FC + 35A BLHeli_S 3-6S ESC
  • Weight: 510g (built & with Camera; no battery; no lens protectors)
  • Model: Lumenier QAV-PRO Mirage 360 4" Cinequads Edition
  • Motors: Axisflying C204 2204 Motor - 2910KV
  • Receiver: TBS Crossfire Nano Rx Pro
  • Propeller: HQProp T4X2X3 Gray
  • Flight Time: Approx 5 Minutes
  • VTX/Camera: DJI O3 Air Unit

IMPORTANT NOTES

  • This drone is specially designed to carry the Tattu R-Line Version 4.0 1300mAh 4S 130C LiPo Battery - XT60. Other XT60 batteries with a dimension of 72mm x 38mm x 25mm (L x W x H) may be used at the pilot's discretion.
  • Always engage the landing gear before placing it onto a launch surface to ensure that the landing gear will not be compromised.

Recommended Bundle Options (Not Included)

Links

  •   (Insert links such as manuals, firmware, etc)

RTF Includes

  • 1x Lumenier QAV-PRO Mirage 360 4” Cinequads Edition RTF (No 360 Camera or Battery)
  • 1x HQProp T4X2X3 Propeller- Gray (Set of 4)
  • 1x Lumenier Zipper Case
