Lumenier Pagoda 2 5.8GHz Antenna (RHCP)

More Views

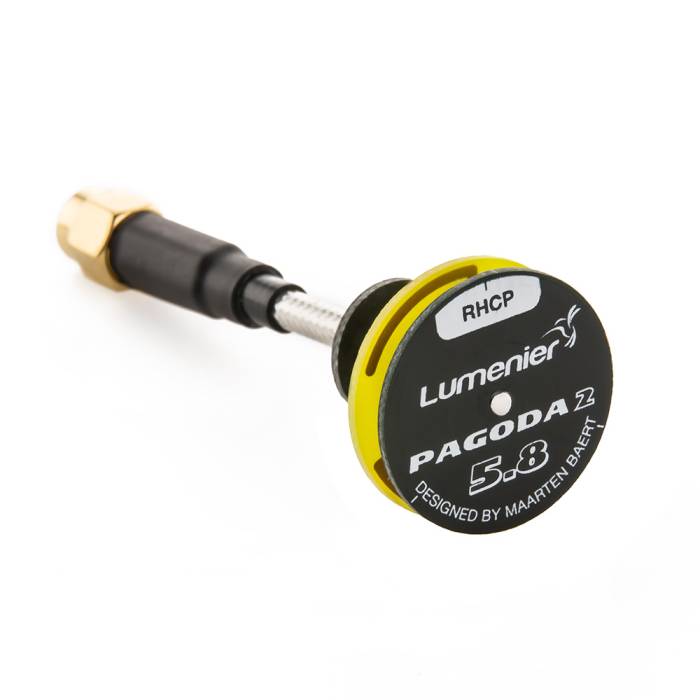

Lumenier Pagoda 2 5.8GHz Antenna (RHCP)
The Lumenier Pagoda 2 Antenna is an omni-directional circularly polarized 5.8GHz FPV antenna with great performance and small in size.
Out of Stock

Regular Price: $11.99

Special Price $8.49

Description

The Lumenier Pagoda 2 Antenna is an omni-directional circularly polarized 5.8GHz FPV antenna with great performance and small in size. The Pagoda 2 Antenna was designed by Maarten Baert and manufactured by Lumenier under the Creative Commons License.

The Lumenier Pagoda 2 Antenna has an excellent omnidirectional radiation pattern along with a good axial ratio, giving you solid all-around coverage. The Pagoda does not come with a protective case like the Lumenier AXII Antenna, but you can print your own 3D printed cover as an alternative.

This antenna's simplified manufacturing process keeps costs low allowing for a great low price for an antenna with high performance.

The Lumenier version has been discontinued. Check out the XILO Pagoda 2 for the same great performance for even less!
Lumenier Pagoda 2 5.8GHz Antenna

More information on the Pagoda 2 Antenna design can be found here.

Specifications

  • Gain: ~2dbic
  • Axial ratio: < 1.3
  • Bandwidth: 5.5GHz-6.05GHz
  • Radiation Efficiency: 95%
  • SWR: S11 < -20 dB, VSWR < 1.22 (at center frequency)
  • Weight: 8g
  • Size: 65mm x 22.5mm
  • Cable: Semi-rigid RG402
  • Connector: SMA (crimp shield + heat shrink)
  • Works great as both a transmitting or receiving antenna
  • Compatible with other styles of 5.8GHz RHCP antennas

Polarization

  • Right Hand Circular (RHCP)

Includes

  • 1x Lumenier Pagoda 2 5.8GHz Antenna (RHCP)

Antenna design by Maarten Baert

Additional Information
SKU 7092
Manufacturer Lumenier
UPC (GTIN) 768684793266
Antenna Connector SMA
Antenna Frequency 5.8GHz
Polarization RHCP
