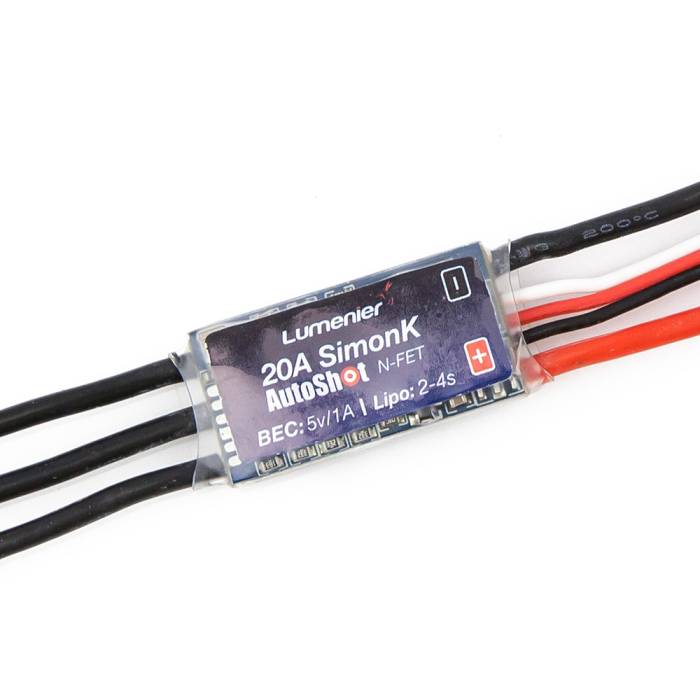

Lumenier Mini 20A ESC w/ SimonK AutoShot, 5V/1A BEC (2-4s)
The Lumenier Mini 20A ESC w/ SimonK AutoShot and 5V/1A BEC (2-4s). Pre-soldered wires, OneShot auto-detect firmware. These ESCs are perfect for Mini FPV Quads.

About this product

The Lumenier Mini 20 amp ESC with customized SimonK firmware including OneShot auto-detect is the perfect ESC to use on mini FPV quads such as the QAV250. This ESC is small in size (27x14.5x6mm) and big on power, supporting 20A on 4s. The ESC comes pre-loaded with the newest firmware, which is compatible with new features like "OneShot" (no soldering required, it will auto-detect if OneShot is enabled), Comp PWM (similar to KISS braking feature), compatible with all Lumenier motors up to 4 cell.

The Lumenier 20 amp AutoShot ESCs have been tested and are compatible with all Lumenier motors (RX1806, RX2206, RXC2206, RX2208), 2S-4S, both 5" and 6" props without sync loss issues or cogging.

The Simonk AutoShot firmware is pre-calibrated with endpoints 1060us - 1860us. This corresponds to the default endpoints in both Baseflight and Cleanflight(The ESC is configured for cleanflight/baseflight by default). Therefore, "Calibration" procedure is not necessary or recommended. "Calibrate" at your own risk. Removal of the red wire in the signal cable is ok if you don't need 5v power out, but both the ground (black) and signal wire (white) need to be connected to the flight controller. Do not connect only the signal wire alone.

Features

  • Active Braking / Damped Light / Comp_PWM
  • AutoShot (OneShot125 / FastPWM Auto Detect)
  • Customized to drive all motors without sync issues or cogging.

To enable new features on Baseflight:
- On Configuration tab, check "Enable OneShot" and "Enable FastPWM"
- Scroll down and click "Save"

To enable new features on Cleanflight:
-On Configuration tab, check the "Enabled" box next to "ONESHOT125" Feature
-Scroll down and click "Save"

Specifications

  • Max continuous load: ~20 amps
  • Burst Current: 30A/10sec
  • BEC: 5v/1amp max
  • Lipo Cells: 2 to 4 cells
  • Cables are fitted with female 2mm bullet connectors
  • Weight: 4g (board) 8g (total with wires and connectors)
  • High quality N-FET only flashed with SimonK firmware and 5v 1A BEC

Dimensions

  • 27mm L x 14.5mm W x 6mm H
  • 100mm signal wire / 5v power
  • 50mm motor wires (including 2mm bullet connector)
  • 70mm ESC power wires
More info: An ESC has either P-channel and N-channel FETs mixed or N-channel FETs only. The ESCs which use only N-channel FETs have the advantage of lower resistance, less losses and hence more efficiency. Learn more about N-channel and P-channel directly from Simon Kirby here.

Royalties paid on each unit sold to SimonK
