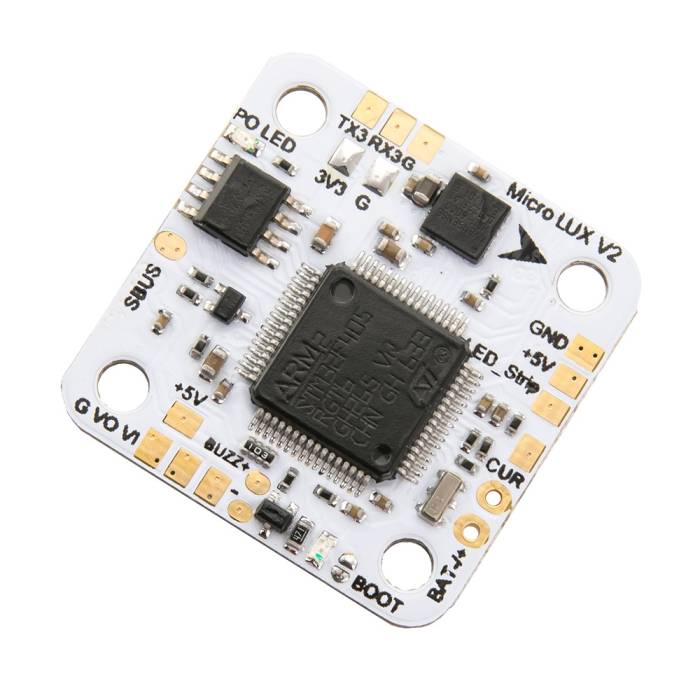

The incredibly small and powerful Lumenier MICRO LUX V2 20x20mm F4 Flight Controller + OSD.

About this product

Lumenier MICRO LUX F4 Flight ControllerThe Lumenier MICRO LUX V2 F4 Flight Controller with OSD brings incredible power and performance to the micro brushless world. It uses a powerful F4 processor along with top of the line hardware. Now you can get all the performance from an F4 based flight controller in a micro size! The V2 now includes an on-board Betaflight OSD. Using an On Screen Display has never been simpler, just drag and drop in the Betaflight Configurator. This flight controller uses 20x20mm mounting holes and a low profile design allowing for smaller airframe designs than ever before. The MICRO LUX V2 comes with BetaFlight pre-installed.

The MICRO LUX supports both SBUS and PPM inputs as well as DSM/DSMX receivers with both 5v and 3.3v support.

Software/Hardware Features

  • 2-4S Direct Lipo input support (5-16v)
  • On-board BetaFlight OSD
  • On-board 5v/2A and 3.3v/0.2A regulators
  • SBUS and PPM support
  • RGB LED dedicated pad, Current Sensor pad and Buzzer Pad
  • VBAT Monitoring support
  • 3x UART Ports
  • Betaflight support (Supports new DSHOT protocol)
  • BLHeli passthrough flashing supported by hardware

Specifications

  • STM32F405 (2MB flash) 32-bit processor
  • MPU6000 Gyro/Accelerometer
  • High quality 1.6mm PCB
  • Micro USB connector for programming
  • Dimensions: 27x27x6mm (includes USB in height)
  • Mounting Holes: 20mm square to center of holes
  • Weight: 4g

Includes

  • 1x Lumenier MICRO Lux V2 F4 Flight Controller w/ OSD
  • 1x Set of plastic 5mm and 3mm standoffs + screws / nuts

Optional Recommendations

We suggest the following gear to complete your micro brushless build. (Not included)

Downloads

Videos

Coming soon..


Lumenier™ and LUX™ are registered trademarks  of Lumenier.



More Information

SKU 7236
UPC (GTIN) 709951468173
Manufacturer Lumenier
Mounting Pattern 20x20mm (Micro)
NDAA Compliant No
