Lumenier LUX HD AIO - G4 FC + 35A BLHeli_32 3-6S ESC - Solderless

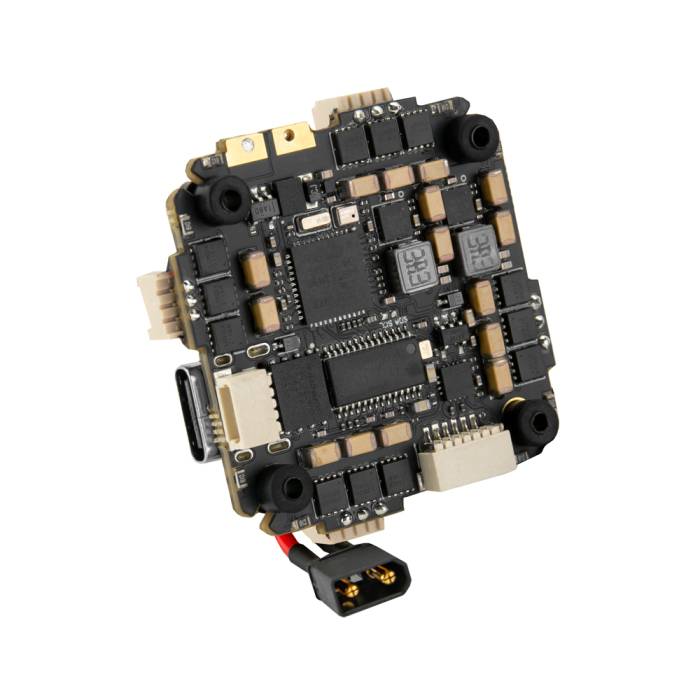

The Lumenier LUX HD AIO G4 Flight Controller + ESC is a powerful solderless AIO ready to power the DJI O3 in a simple configuration.

About this product

The Lumenier LUX HD AIO G4 Flight Controller + ESC is a powerful solderless AIO ready to power the DJI O3 in a simple configuration. The LUX HD AIO G4 builds on all the best features of its predecessors and further improves on hardware components and layout, and is now dedicated to a design for the DJI systems. The FC uses a G4 processor and top-of-the-line hardware from the 35A BLHeli_32 3-6S ESC powered by four F4 processors! This LUX HD AIO G4 comes in a standard 25x25 mounting pattern, weighing just under 13g. The solderless design has plugs installed for your motors, XT30 connection, and more... which gives you the choice to solder or just plug in and fly. Unleash the capabilities of your FPV Racing Quadcopter with the Lumenier LUX HD AIO G4 Flight Controller!

Note: This AIO works with both the DJI O3 and other Digital FPV Systems. Plug-n-play, no soldering required. This AIO is also Analog compatible.

VIDEO: FOUR F4's on 1 Flight Controller!!! - Lumenier LUX HD AIO with G4 Technology!

Features

  • Solderless Version (includes motor plugs + pre-soldered XT30 power cable)
  • Low resistance Mosfet with Metal case, up to 6s 35A supported
  • Analog current sensor3~6S Lipo (12.6~25.2V) Input
  • 35A BLHeli_32 ESC (F4 processors)
  • 16M Flash Memory Blackbox
  • 25x25mm Mounting Pattern
  • OSD (Analog / Digital)
  • G473 Flight Controller
  • ICM42688 Gyro
  • DJI Ready

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

Specifications

  • MCU: STM32G473 / 170Mhz / 512KB Flash
  • BEC: 2x BEC, 5V and 10V, 2.5A each
  • VBAT Input: 8-32V, 3-6S Lipo
  • Blackbox: 16MB (128M Bit)
  • MOSFET: Low resistance
  • Amperage: 35A up to 6S
  • ESC MCU: F4 BLHeli_32
  • Current sensor: Analog
  • Dimensions: 38x38mm
  • DJI Digital Port: Yes
  • Gyro: ICM42688
  • PMW Output: 4
  • Weight: 12.83g
  • LED: WS2812b
  • FC MCU: G473
  • Beepers: Yes
  • OSD: Yes
  • 12C: 1

IMPORTANT NOTES

  • Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

Recommended (Not Included)

Includes

  • 1x Lumenier LUX HD AIO - G4 FC + 35A BLHeli_32 3-6S ESC - Solderless
  • 4x M2x8mm Non Threaded Spacers
  • 4x M2x12mm Socket Cap Screws
  • 4x M2x4mm Threaded Spacers
  • 1x DJI Plug-N-Play Cable
  • 1x 220uF 25V Capacitor
  • 1x 4-Pin Micro JST
  • 4x M2 Nuts

Featured Videos

ADD VIDEO TITLE HERE IN BOLD CAPS

ADD VIDEO TITLE HERE IN BOLD CAPS



More Information

SKU 20486
UPC (GTIN) 724376354979
Manufacturer Lumenier
NDAA Compliant No
Mounting Pattern 25.5x25.5mm (Whoop)
Item Returns This item can be returned
