Lumenier F390 30A BLHeli ESC OPTO (2-4s)

More Views

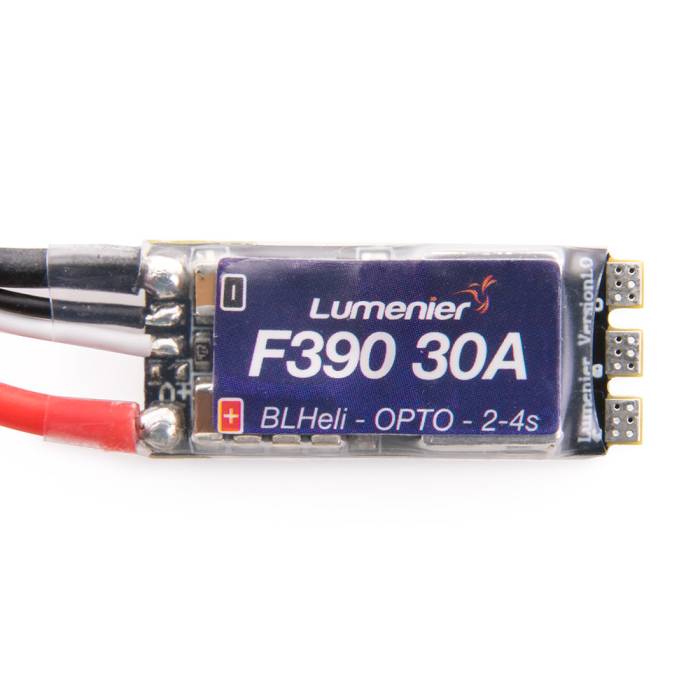

Lumenier F390 30A BLHeli ESC OPTO (2-4s)
The powerful Lumenier F390 30A BLHeli ESC OPTO (2-4s). Pre-configured with the latest BLHeli, oneshot, damped light / braking. These ESCs are perfect for Mini FPV Quads.
Out of Stock

Regular Price: $19.99

Special Price $12.99

Description

The Lumenier F390 30A BLHeli OPTO ESC uses the powerful F390 processor giving you faster motor repsonse and tons of power. This 30A is super small weighing at only 6g and smaller than most other ESCs. It comes pre-flashed with the popular BLHeli, and the firmware is easily upgraded to newer versions in the future. Oneshot and damped light is enabled by default, and it can also be flashed with Multishot.

This ESC makes it easy to solder your motor wires by extending solder pads out past the heatshrink. No need to cut back shrink and remove factory cables, just simply cut your motor wires to the desired length and solder directly to the ESC.

Features

  • Ultra Lightweight
  • Compact size
  • Convenient motor wire solder pads
  • Preflashed with BLHeli Firmware
  • Powerful F390 chip
  • DSP Processing
  • Efficient IC reduces heat output
  • Includes lightweight heatsink for cooling of the FETs
  • 2-4s LiPoly
  • OPTO ESC

Specs

  • Input: 2-4s LiPoly
  • Constant: 30 Amps
  • Burst: 40 Amps
  • BEC: No BEC, OPTO only
  • Dimensions: 28x12x5mm
  • Weight: 6g (with wires)

Includes

  • 1x Lumenier F390 30A BLHeli OPTO ESC
Additional Information
SKU 4745
Manufacturer Lumenier
UPC (GTIN) 709951468029
