Lumenier DX800 DVR w/ 5.8GHz 32CH Receiver

More Views

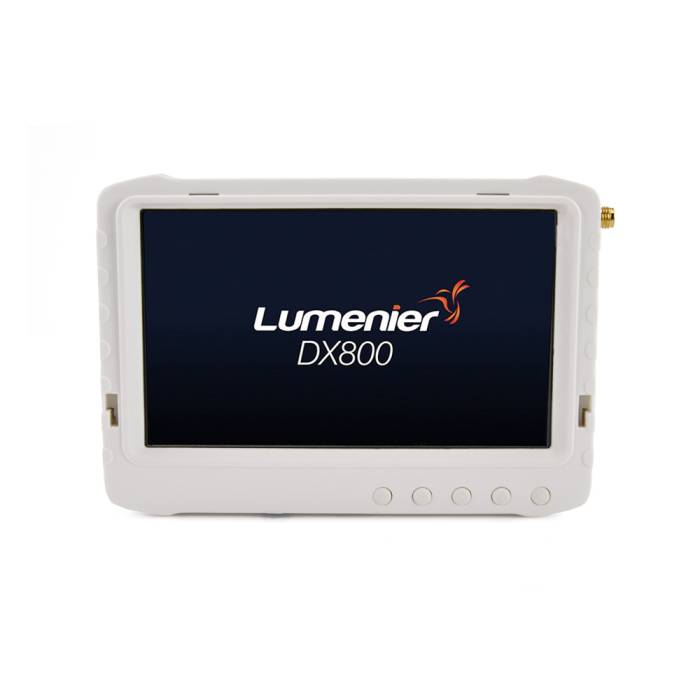

Lumenier DX800 DVR w/ 5.8GHz 32CH Receiver
The Lumenier DX800 DVR w/ 5.8GHz 32CH Receiver, an all in one mini ground station.
Back Ordered - Ships When Available
$149.99
Description

The Lumenier DX800 is a small and compact Digital Video Recorder (DVR) for your FPV ground station. Not only can you record your FPV flights, but the DX800 includes a 32CH 5.8GHz receiver built right into it! Record your flight video with ease with the Lumenier DX800 DVR, featuring a 1 button record mode, full color 5" LCD screen and SD card recording. The bottom is threaded for a standard tripod screw making radio or tripod mounting easy.

Features

  • Display: 5-inch display screen (800X480).
  • Wireless Receiving: Built-in 5.8GHz receiver module.
  • Channel Switch: Supports 32 channels,With auto channel scan
  • Antenna: 5.8GHz SMA antenna assures excellent wireless receiving.
  • Recording: Supports seamless cycle and continuous video from wired/wireless cameras.
  • Photo: Supports function of taking pictures either from wired or wireless cameras.
  • AV IN:TV-IN [NTSC / PAL].
  • AV OUT: [NTSC / PAL].
  • Battery: Built-in 3200mAh high capacity Li-battery.
  • Speaker: Built-in speaker.
  • Storage: Supports up to 32GB micro SD card.
  • Language: Supports multiple languages.
  • Supports Power-saving Mode: automatic shutdown, automatic off-screen.
  • Automatic upgrade: Supports system automatic upgrade.
  • Sunshade Cover Provided: Video screen can be viewed clearly outside.
  • Screw-socket: 1/4-20 threaded base
  • Video Recording Format: MPEG-4 CODEC in an AVI file container

Specifications

  • Dimensions: 131mm*88mm*17mm;
  • Weight: 218g including battery

Available Channels (by Band)

  • A: 1: 5740 2: 5760 3: 5780 4: 5800 5: 5820 6: 5840 7: 5860 (Fat Shark/ Immersion RC)
  • B: 1: 5725 2: 5745 3: 5765 4: 5785 5: 5805 6: 5825  7: 5845  8: 5865 (Boscam)
  • C: 1: 5733 2: 5752 3: 5771 4: 5790 5: 5809 6: 5828 7: 5847 8: 5866
  • D: 1: 5705 2: 5685 3: 5665 4: 5645 5: 5885 6: 5905 7: 5925 8: 5945

Includes

  • Lumenier DX800 DVR Unit
  • Detachable Sunshade
  • AC Adapter
  • User Manual
  • AV-IN/Out Cable
  • USB Cable
  • Built in Lithium Battery

Note: You will need an SD Memory Card to be able to record audio/video. We recommend a Class 10 SD card, anywhere from 1GB to 32GB. You can record around 1 hour on a 1GB card.

Additional Information
SKU 2716
Manufacturer Lumenier
UPC (GTIN) 704817769210
