Lumenier Digital RGB LED System

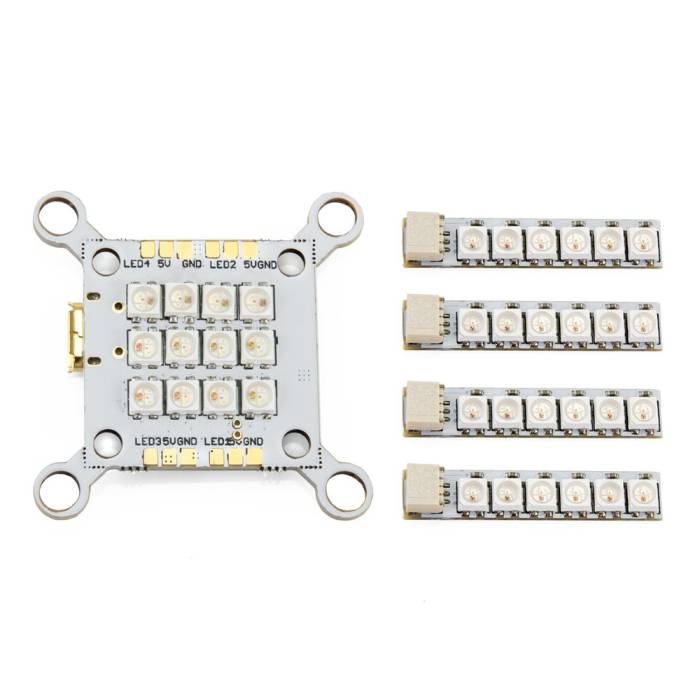

Save 5% when buying this LED bundle! Includes the Lumenier Tail Light + PDB along with 4 Digital RGB Arm 6 LED boards.

Note: Each order of Arm LEDs comes with 4 (four) LEDs, so ordering 2 would give a total of 8 Arm LEDs.

About the Bundle

Lumenier's orignal RGB LED Tail Light was a step forward towards making LEDs more functional and accessible to the FPV consumer. This new LED Tail/PDB takes all the best parts of the original Tail Light and add even more features!

The Lumenier Multi-Mount RGB LED Tail Light + PDB gives you ultra-bright RGB LEDs as you would assume, but what makes it different than other simple LED boards?

• You can directly solder additional RGB LEDs to the board, such as four arm-mounted LED strips to maximize brightness and visibility.
• The onboard microprocessor has pre-programmed patterns and colors that you can change with just the press of a button. This will control the LED board as well as accessory LEDs you may have connected for a uniform color or pattern.
• Like to write code? The micro USB connection allows you to program and upload your own LED functions!
• The board can be mounted in many different ways. You can include it in your electronics stack with its 30.5x30.5mm or 20x20mm mounting holes, or simply zip tie it to the back of your quad as a rear tail light. Be creative, mount it in just about any way you want!

The LED Tail Light stores the last setting it was in when it is power cycled. One of the modes of the LED Tail Light is an "OFF" mode that turns all LEDs off.

Specifications

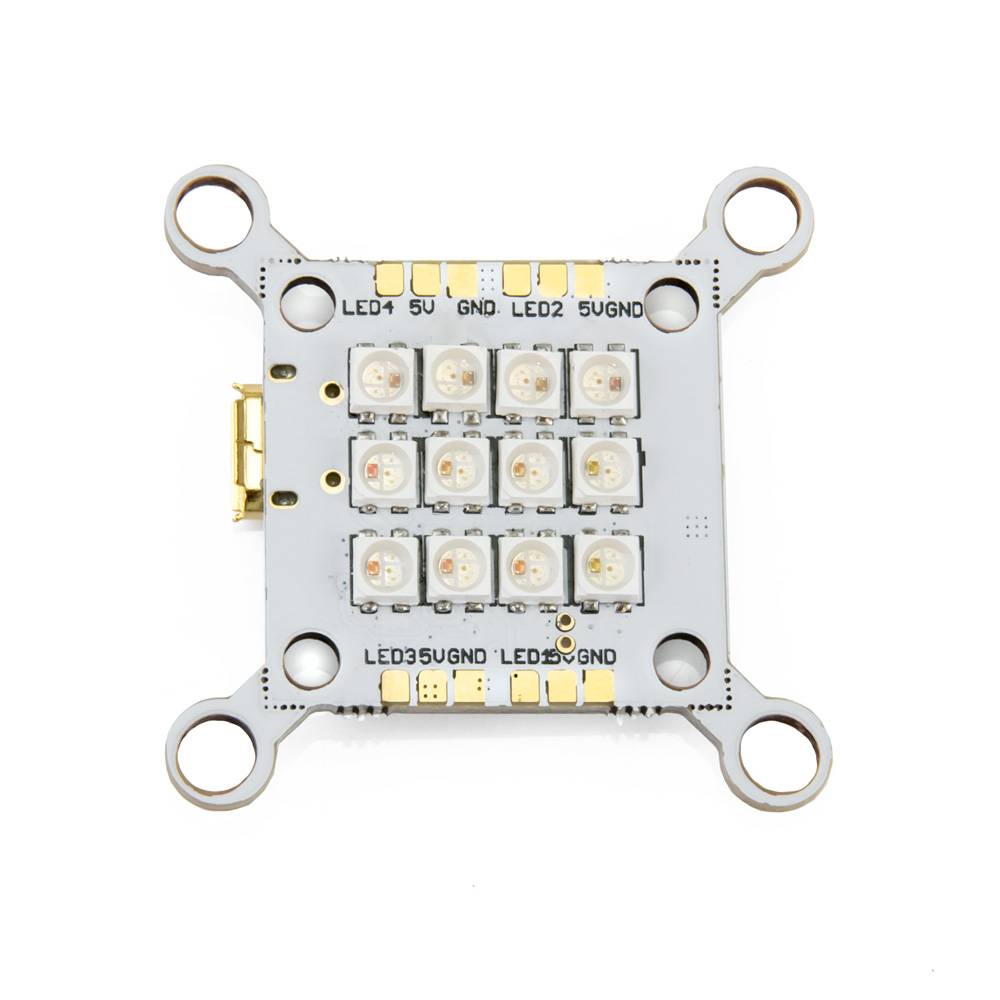

RGB LED Tail Light + PDB

• Programs: 13 pre-programmed colors / patterns
• Dimensions: 35mm x 35mm x 5mm or 25mm x 25mm x 5mm after breaking off tabs
• Weight: 5g
• Power: Onboard 5v/3A regulator (5-26v direct input)

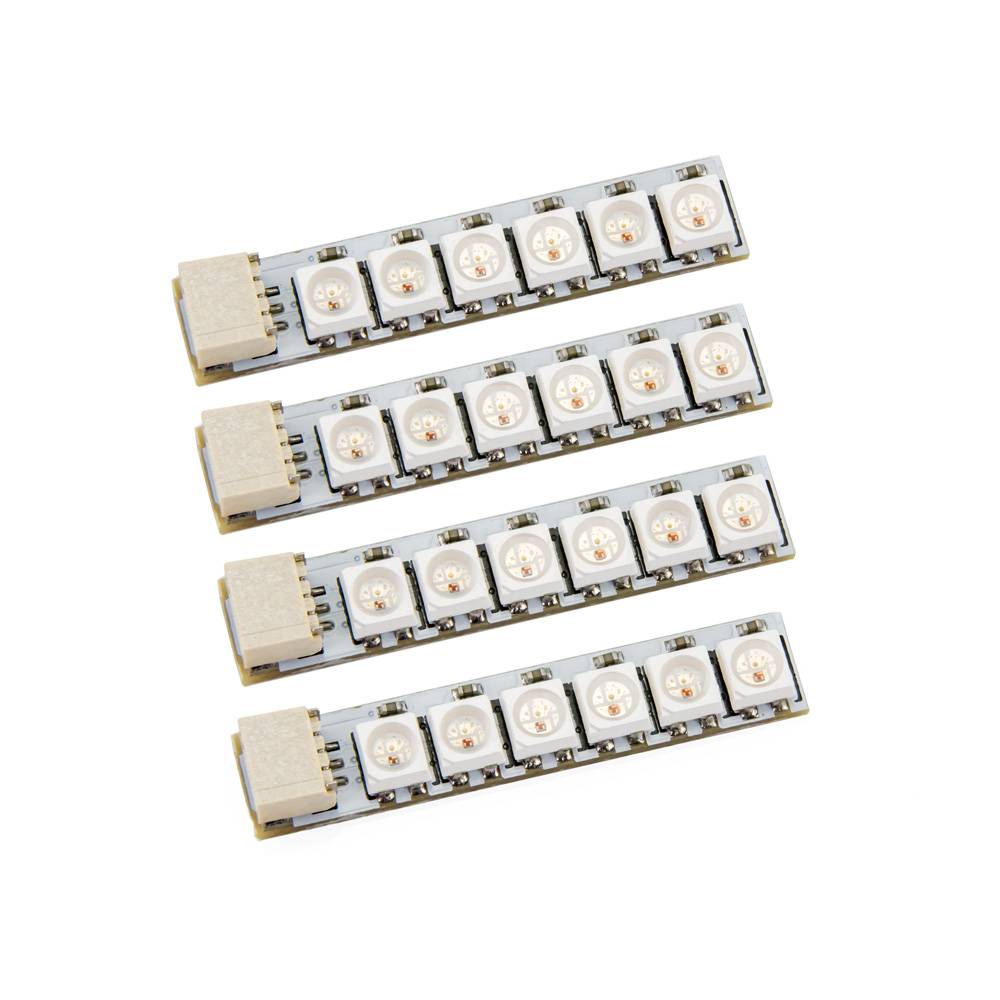

RGB Arm 6 LED Board

• Dimensions: 30.5 x 6 x 3mm
• Weight: 0.8g
• Input Voltage: 5v (over 5v will burn the LEDs)
• Current Draw: 60mA to 160mA depending on LED color.
• Plug and play connector

Includes

Tail Light

• 1x Lumenier Multi-Mount RGB LED Tail Light
• 1x Silicone wire pack

Arm LED

• 4x Lumenier Digital RGB Arm 6 LED boards
• 4x 80mm 3 pin plug to bare wire
• 4x Double-sided tape strips
