  • Shown with detachable Menu OSD controls Shown with detachable Menu OSD controls

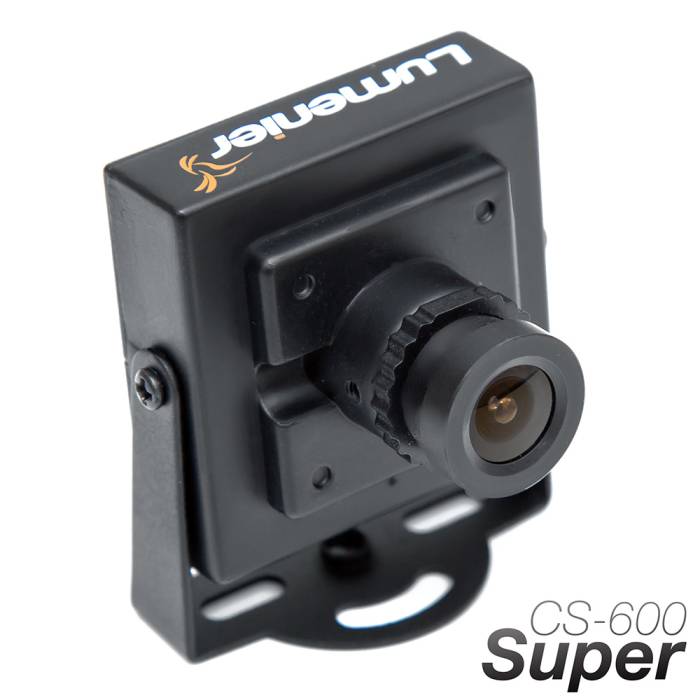

Lumenier CS-600 Super - 600TVL D-WDR Camera

Quick Overview

The CS-600 Super - 600TVL D-WDR is a high performing yet still affordable FPV camera.
Back Ordered - Ships When Available

Regular Price: $56.99

Special Price $34.99

Details

The Sony Super HAD II CCD 600TVL FPV board camera with Nextchip 2040 DSP, Samsung and Panasonic resistance components and Tantalum capacitor by Lumenier. It comes with a dual 850nm IR filter which blocks the IR light making image colors true to life.

This camera has become very popular with the FPV community for its affordable price and awesome performance. The CS-600 Super will outperform many more expensive models. GetFPV brings you the full package deal with the new Lumenier brand, and ships from the US. Not only do you get a superb camera, but also a Lumenier branded metal case with mounting bracket and a custom made camera cable for easy hookup to your FPV gear.

Features

  • Blocks IR light for better color
  • Color 600TVL Black & white 650TVL High Picture Quality
  • 1/3'' SONY SUPER HAD II CCD
  • Default 2.8mm lens, optional 3.6mm and 2.1mm
  • Removable OSD menu
  • D-WDR
  • DNR (Digital Noise Reduction)
  • Low Power Consumption
  • Back light compensation (BLC)
  • Image mirroring functionality
  • Anti-exposure function
  • Low illumination: 0.01Lux
  • White dot repair
  • Weight: Board camera alone 15g, or with case 44g.
  • DC 9V-12V Power input (3s Lipo battery)

Specifications

Image Sensor1/3'' SONY SUPER HAD II CCD

Horizontal Resolution 600TVL
Signal System NTSC
Auto White Balance Manual/Auto/Auto tracking
Electronic Shutter Speed 1/60-1/100,000
Back light compensation (BLC) off /BLC/ anti-exposure
>Min. Illumination 0.01Lux/1.2F
Video Output 1.0Vp-p 75 ohm BNC output
Negative/ positive Negative/ positive optional
Display Mode LED monitor/CRT monitor
IR image optimize Anti exposure of the object in the middle
Day/ Night Switch Auto/Color/B&W/Outside control (position start and end controllable)
OSD Chinese/ English Menu
Image adjust Yes 10%-90%
Effective Pixel 768(H) X 494(V)
Synchronization Internal
S/N Ratio >60dB(AGC OFF)
Auto Gain Control off/low/mid/high optional
Motion Detection (MD) On/Off (multi-level sensitivity)
Shading Area 8
Power 9-12V DC (3s Lipo battery)
Edge light compensation Yes
Synchronize IR turn on and color turn to B&W Yes optional
DNR 2DNR
Day/ Night time switch 2-63 Switchable time
White dot repair Yes
Function Control OSD
Dimensions 36mm x 36mm (with case) / 32mm x 32mm
Operation Temp. –10 C to 50 C

Shipping Contents

  • 1x Lumenier CS-600 Super - 600TVL D-WDR Camera
  • 1x OSD control board and cable
  • 1x Lumenier metal case with mounting bracket
  • 1x Custom camera cable with servo connection for easy FPV setup
  • 1x 1.25mm 3 pin cable and 1x with video and power connector
  • 1x Manual

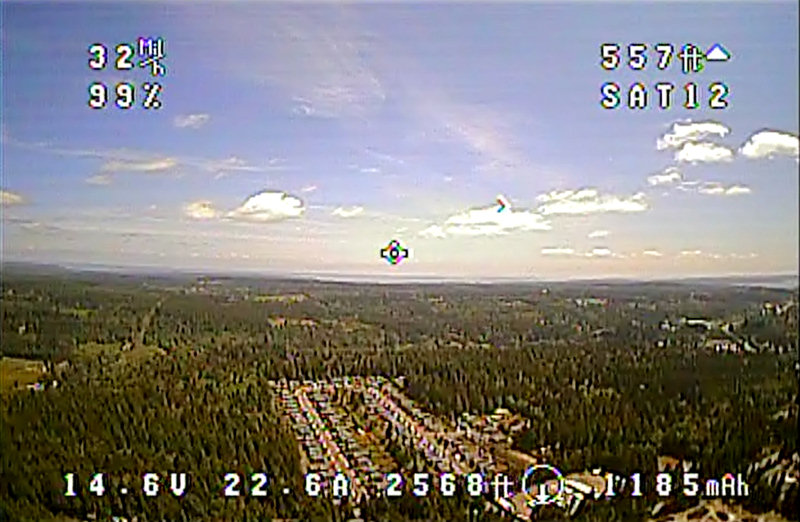

Download the OSD menu manual here Screen capture from an FPV flight with the Lumenier CS-600 Super Lumenier CS-600 Video review by StoneBlueAirlines This camera was also reviewed by Bruce at RCModelReviews

Additional Information

SKU 1273
Manufacturer Lumenier
  1. A Superior 600TVL Camera !! review by Harry on 10/20/2014
    Quality
    Price
    Value

    There are a lot of 600TVL cameras available for FPV. I was initially skeptical that there was ant great difference between most of them.

    This past week a fellow FPV flyer using nearly identical equipment asked me what camera and VTx I was using since the video quality he received from my quad seemed much more clear and with better color quality that did his. (We were both using new Dom V2's)

    The only difference was our cameras. His was a "generic" 600TVL and mine was the Lumenier CS-600. Several other flyers also had very positive comments on my video signal as well and asked what I was using.

    Yes, there's a difference in cost, but after considering shipping cost (and time) and above all the quality of the end result I can recommend this camera without any reservations. It's simply a great FPV camera that's easy to install and set up.

    I also recommend the light weight plastic case.

  2. Very good quality camera review by Tyler on 6/28/2014
    Price
    Value
    Quality

    It's a great camera for FPV, very good quality with good lighting from broad daylight to night time. I would recommend to friends!

  3. great value review by stik's fpv on 5/30/2014
    Value
    Quality
    Price

    great camera, does everything u need for fpv, I changed out the heavy metal case with a plastic one from ebay, perfect fit. helped out a lot. 15 fpv flights on this camera now, no problems at all. A+.low power draw, great quality picture, direct sun flying is not a problem with this camera, is very good at low light also. A+

  4. Best camera there is for FPV hands down... review by Josh on 3/19/2014
    Price
    Value
    Quality

    I've been flying FPV for a very, very long time now and I've tried everything out there and this is the best camera for FPV hands down. It has exceptional low light handling abilities and transitions very well from low light to intense light and so on. The ONLY camera I use on ALL of my FPV crafts period!

  5. awesome for the price review by Jason on 2/13/2014
    Price
    Value
    Quality

    Came with everything needed to program the camera settings.
    Also was easily able to take the camera out of the metal case and mount it to the TBS discovery pro frame with ease. Awesome camera great quality. I did have to adjust the focus on it but that took 2 seconds.

  6. The Best review by Paul on 10/25/2013
    Quality
    Price
    Value

    Love how it came built, and focus set and basically just ready to go, also a great camera , cheers
