Description

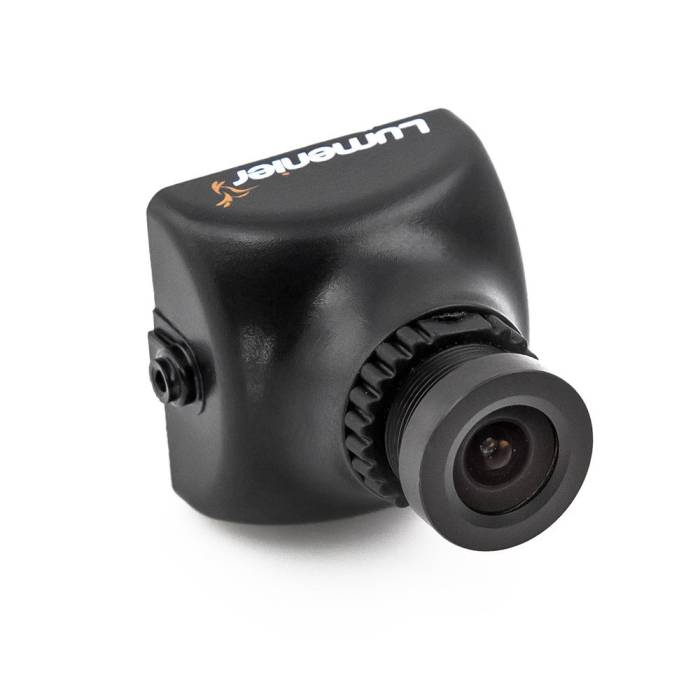

A high quality Lumenier 650TVL FPV camera with full OSD controls. The camera comes in a small, aerodynamic enclosure that is only 26x26mm weighing 14 grams.

The camera is small and compact but also full of features, giving you the best of both size and performance! This camera works well with Fat Shark and ImmersionRC transmitters which power cameras at 5v. (be sure to re-pin the servo cable to match the VTx)

650TVL
2.8mm(default) / 3.6mm / 4mm Lens
Suitable for FPV running on 5-20v power
Low illumination: 0.01Lux
1/3" SONY SUPER HAD II CCD
Nextchip 2040
Powerful OSD menu
D-WDR (Wide Dynamic Range)
2D-DNR (Digital Noise Reduction)
Low Power Consumption(70mA)
Mirror function

Specifications

CCD	1/3” Sony SUPER HAD II CCD
Pixel	NTSC: 768(H)×494(V)
TV System	NTSC
Resolution	650TVL
Synchronization	internal synchronize
Shutter Speed (CCD IRIS)	NTSC: 1/65~1/100000 sec
Noise	> 65 (AGC OFF)
Video Out	1.2Vp-p,75ohm, synchronize
Horizontal Resolution	Color 700TVL
Min. Illumination	0.01Lux
Auto Gain	Off/Low/Mid/High
Back Light Compensation (BLC)	Off /Back light compensation/ Strong light suppression
Private shading (PRIVACY)	1~8 private shading area
Motion Detection (MD)	On/ Off (Multi level sensitivity settable)
Auto White Balance	Manual / Auto / Auto track
Mirror	Horizontal Mirror optional
Negative	Positive / Negative optional
Color to B&W	Auto
DNR	2DNR
Day / Night Shift	Auto/ Color/ B&W/ External control (can set start and end position )
Menu (OSD)	English menu
White Dot Repair	Support
Image Adjustment	Support
Camera Title	Support
Power Requirement	DC 5V-20V (2-5s Lipo Battery)
Working Temperature	-10 C ~ +50 C
Working Humidity	20~80%
Storage Temperature	-40 C ~ +65 C
Storage Humidity	20~95%
Dimensions(mm)	26X26(W*L - Includes case)
Power Consumption	70mA

When using this transmitter on builds with ESC's that feature regenerative braking, we strongly recommend powering the transmitter with a 12V step down regulator to protect it from voltage spikes. 12V Step Down Voltage Regulator
