  • Only 70x16mm in size! Only 70x16mm in size!
  • Incredibly light weight, under 8g! Incredibly light weight, under 8g!
  • Lumenier AXII 5.8GHz Antenna is the smallest in its class! Lumenier AXII 5.8GHz Antenna is the smallest in its class!
  • High 1.6dBic gain for a Circular Polarized antenna. High 1.6dBic gain for a Circular Polarized antenna.
  • Near perfect 1.0 axial ratio. Near perfect 1.0 axial ratio.
  • Side view of the gain pattern. Side view of the gain pattern.

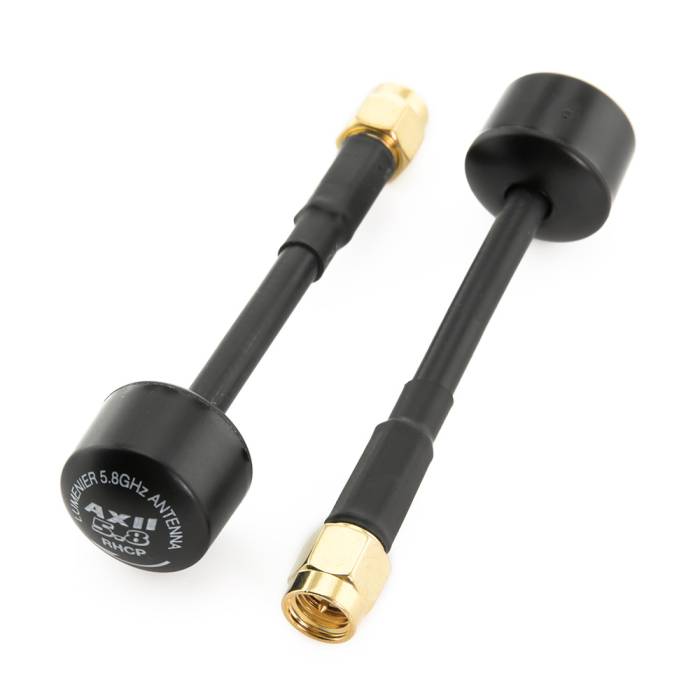

Lumenier AXII 5.8GHz Antenna (RHCP) (2pcs)

Quick Overview

The revolutionary Lumenier AXII 5.8GHz Antenna (RHCP) with SMA connector. A mini sized 5.8GHz FPV antenna with a 1.6dBic and near perfect axial ratio.
In Stock
$39.99

Details

The Lumenier AXII 5.8GHz Antenna makes a giant leap forward in FPV antenna technology. Lumenier, in collaboration with renowned FPV antenna designer Hugo of TrueRC, brings you one of the smallest, lightest and best performing FPV antennas in the world. The AXII antenna is an original design that features a new RF pathway technology (unique hybrid network) allowing it to be incredibly light weight (7.6g) and less than half the size of most other 5.8GHz CP antennas.

Even though the AXII is both small and light weight, it does not sacrifice any performance. In fact it out performs most other antennas in all categories. Precision engineering has given this antenna a near perfect 1.0 Axial ratio resulting in a true circularity. On top of that, the AXII has a high max gain of 1.6dBic enabling better range and penetration. It has a wide bandwidth covering the popular FPV 5GHz band from 5.5GHz-6.0GHz, ensuring you have a clear and strong signal no matter which frequency you're on.

The AXII is designed to be ultra durable and put up with the beatings FPV pilots put on their antennas. The cable is a semi-rigid, black coated RG402 cable and 45mm long, allowing for 90 degrees or more of freedom. The SMA connection is reinforced with a metal collar crimped to the base for extra support. The outer shell case is made from an impact resistant polycarbonate material, and it is sealed shut to guard the antenna elements inside. Note: When installing, secure the antenna via the SMA connector, do not twist the cap.

Lumenier AXII 5.8GHz Antenna

Join the online discussion about the Lumenier AXII Antenna at RCGroups here.

Specifications

  • Gain: 1.6dbic
  • Axial ratio: 1.0 (near perfect)
  • Bandwidth: 5.5GHz-6.0GHz
  • Radiation Efficiency: 98%
  • SWR: <=1.5:1
  • Weight: 7.6g
  • Size: 70mm x 16mm
  • Cable: Semi-rigid RG402
  • Connector: SMA
  • Works great as both a transmitting or receiving antenna
  • Compatible with other styles of 5.8GHz RHCP antennas

Polarization

  • Right Hand Circular (RHCP)

Includes

  • 2x Lumenier AXII 5.8GHz Antennas (RHCP) with SMA

Lumenier AXII - The Official Antenna of the Drone Racing League (DRL)

The Lumenier AXII 5.8GHz Video Antenna is specifically designed to perform extremely well under intense drone racing conditions. "The quality of the pilots video link is one of the most critical aspects of amateur and professional drone racing.” says Tim Nilson, President of Lumenier. “The AXII Antenna ensures a reliable video link at high speeds, with several pilots in the air, and in challenging RF environments."

"Lumenier is one of the most respected gear designers in the drone racing market." said Nick Horbaczewski, DRL's CEO. "We are thrilled to have them as a partner this season."

Lumenier AXII Antenna Official Antenna of DRL

Videos

DVR Footage from FlyingBear using the AXII Antenna.

Design by TrueRC of Canada and manufactured by Lumenier Patent Pending.

Additional Information

SKU 6576
Manufacturer Lumenier
Antenna Frequency 5.8GHz
  1. Amazing review by Ed on 7/4/2017
    Quality
    Price
    Value

    When I opened the box I thought I got the wrong thing because they were so small. have been thru a ton of antennas and simply put these are getting amazing range, amazing quality and small. I put one on my sharks and one on my QAV-X. I have never reviewed an antenna before as they all seem mediocre and did not see a ton of difference over all till these. Just now it would help if GetGPV would keep them in-stock :)

  2. My new favorite antenna review by Keith on 3/13/2017
    Quality
    Price
    Value

    These are smaller and lighter than the other antennas I've tried yet are still as good or better video quality.

  3. Fantastic Antenna... review by ROTORDOG on 3/1/2017
    Quality
    Price
    Value

    These are just amazing and are definitely the go to antenna right now. It is ashame that they re so hard to keep in stock...It might also be nice if there was a paired receiver antenna with more power you could use with this as they work the best when on both the TX and RX...

  4. Smaller than expected!! review by colin l on 1/1/2017
    Quality
    Price
    Value

    You can see the difference in the pictures but WOW! Compared to the Mad mushrooms of the past the difference is almost comical. Quality is top notch. I have yet to really push them as far as range and break up around obstacles but so far seem to be equal to my TBS triumph's
