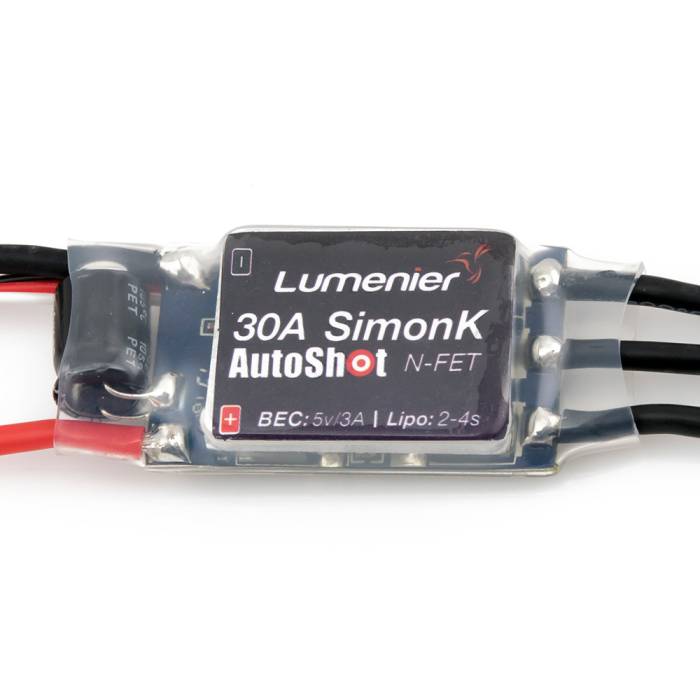

Lumenier 30 amp ESC w/ SimonK AutoShot Firmware

Quick Overview

Lumenier's latest 30 amp ESCs pre-loaded with SimonK AutoShot firmware, boot loader, and modified hardware.
In Stock

Regular Price: $24.49

Special Price $19.99

Details

The Lumenier Mini 30 amp ESC with customized SimonK firmware including OneShot auto-detect is the perfect ESC to use on larger FPV quads such as the QAV400. This ESC is small in size (51x25x10mm) and big on power, supporting 30A on 4s. The ESC comes pre-loaded with the newest firmware, which is compatible with new features like "OneShot" (it will auto-detect if OneShot is enabled), Comp PWM (similar to KISS braking feature), compatible with all Lumenier motors up to 4 cell.

The Lumenier 30 amp AutoShot ESCs have been tested and are compatible with all Lumenier motors (FX1806, FX2206, FXC2206, RX2204, RX2206, FX2208), 2S-4S, both 5" and 6" props without sync loss issues or cogging.

The Simonk AutoShot firmware is pre-calibrated with endpoints 1060us - 1860us. This corresponds to the default endpoints in both Baseflight and Cleanflight(The ESC is configured for cleanflight/baseflight by default). Therefore, "Calibration" procedure is not necessary or recommended. "Calibrate" at your own risk. Removal of the red wire in the signal cable is ok if you don't need 5v power out, but both the ground (black) and signal wire (white) need to be connected to the flight controller. Do not connect only the signal wire alone.

Features

  • Active Braking / Damped Light / Comp_PWM
  • AutoShot (OneShot125 / FastPWM Auto Detect)
  • Customized to drive all motors without sync issues or cogging.

To enable new features on Baseflight:
- On Configuration tab, check "Enable OneShot" and "Enable FastPWM"
- Scroll down and click "Save"

To enable new features on Cleanflight:
-On Configuration tab, check the "Enabled" box next to "ONESHOT125" Feature
-Scroll down and click "Save"

Specifications

  • Max continuous load: ~30 amps
  • Burst Current: 40A/10sec
  • BEC: 5v/1amp max
  • Lipo Cells: 2 to 4 cells
  • Bare Cables
  • Weight: 26g (board) 32g (total with wires and connectors)
  • High quality N-FET only flashed with SimonK firmware and 5v 1A BEC

Dimensions

  • 51mm L x 25mm W x 10mm H
  • 185mm signal wire / 5v power
  • 85mm bare motor wires
  • 70mm ESC power wires
More info: An ESC has either P-channel and N-channel FETs mixed or N-channel FETs only. The ESCs which use only N-channel FETs have the advantage of lower resistance, less losses and hence more efficiency. Learn more about N-channel and P-channel directly from Simon Kirby here.

Royalties paid on each unit sold to SimonK

Additional Information

SKU 1138
Manufacturer Lumenier
  1. Wow review by contraption on 11/26/2016
    Quality
    Price
    Value

    Put them in a QAV500. Well built Esc

  2. Great ESC review by Brian on 5/10/2016
    Quality
    Price
    Value

    I replace a set of Castle ESC's with these and I couldn't be happier with them. My 540mm quad has never flown this good. I will be using these on future builds.

  3. Good ESC review by Cole on 3/15/2015
    Price
    Value
    Quality

    I use these on my QAV400 and they work like a charm. I have had one of these smoke on me for unknown reasons, but other than that I love them. My four ESCs have been moved from frame to frame and they still work amazing. I would definitely recommend these to anyone who wants a good quality ESC for a good price.
