Lumenier 2207.5 1750KV SKITZO Hydro Dipped Motor (Limited Edition)
The Limited Edition Lumenier 2207.5 1750KV SKITZO Hydro Dipped Motor. Designed in collaboration with SKITZO FPV this is the wildest FPV Freestyle motor you'll ever have!

About this product

Skitzo Special EditionThe Limited Edition Lumenier 2207.5 1750KV SKITZO Hydro Dipped Motor was designed in collaboration with SKITZO FPV and is the wildest drone motor you'll ever have!

With a 1750kv rating and powerful 2207.5 stator size the new SKITZO motor fits right in for extreme FPV freestyle and a perfect "6s motor" for a 5" prop build.

Besides the incredible performance this motor has, the first thing you'll really notice is the incredible hydro-dip artwork that fully covers the whole motor! This is a custom design made with SKITO FPV's logo "sticker bombed" all over it in a wild mutli-colored pattern. These motors are sure to stand out and make you the envy of all your flying buddies.

Carefully assembled and dynamically balanced in Lumenier's climate controlled facility, the Lumenier 2206 motors deploy new glue technology, application robots for even glue distribution, and advanced curing procedures to ensure magnets won't slip -- even under the tremendous demands put on them during drone racing and FPV freestyle events.

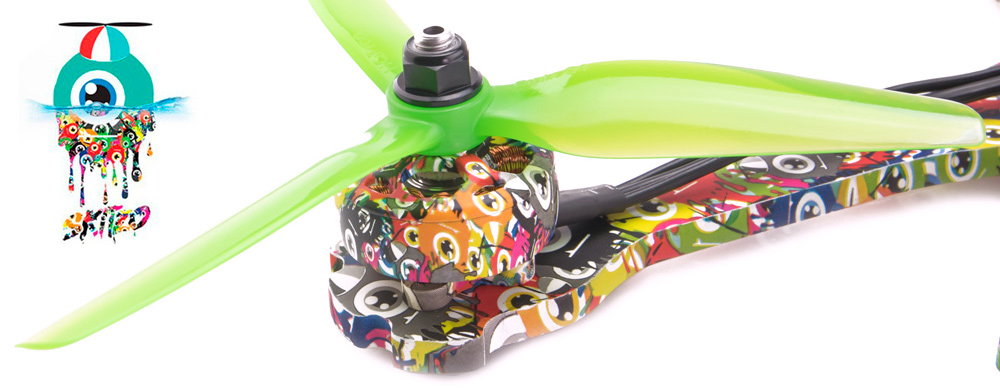

Skitzo FPV Motor

Limted Edition

  • Due to the complex nature of producing a fully hydro-dipped motor, this is a single batch production. Once they are sold out, they are gone forever! Don't miss out on a piece of FPV history!

Includes

  • 1x 2207.5 1750KV SKITZO Hydro Dipped Motor
  • 1x Lumenier M5 Black Aluminum Lock Nut (CW)
  • 4x M3x6 steel socket cap screws

Specifications

Kv 1750
Bearings Stainless Steel Bearings
Configuration 12N14P
Windings 8 turn DLRK
Termination D (Delta)
Stator Diameter 22mm x 7.5mm
Shaft Diameter (Internal) 4mm
Motor Dimension 28x19mm
Weight 32g
Idle Current @12.6v (Io) 0.76 A
Cells (LiPo) Recommended 4-6S
Max Continuous Current (A) 60s 35A
Max Burst Current <10s 45A
Max Continuous Power (W) 60s 560W
Max Efficiency Current (2.2-6A) 80%
Internal Resistance (Rm) 240mΩ
Motor Wire Length 160mm
Motor Connection Bare Wire


A perfect match for the QAV-R 2 SKITZO Hydro Dipped Frame

The new Lumenier 2207.5 1750KV SKITZO Hydro Dipped Motor (Limited Edition) is perfectly matched to SKITZO's equally awesome Hydro Dipped frame!

Build them together for an out of this world look!!
