Jumper AION ELRS 2.4GHz 500mW Nano TX Module

In Stock

Only left for same day shipping. Order now!

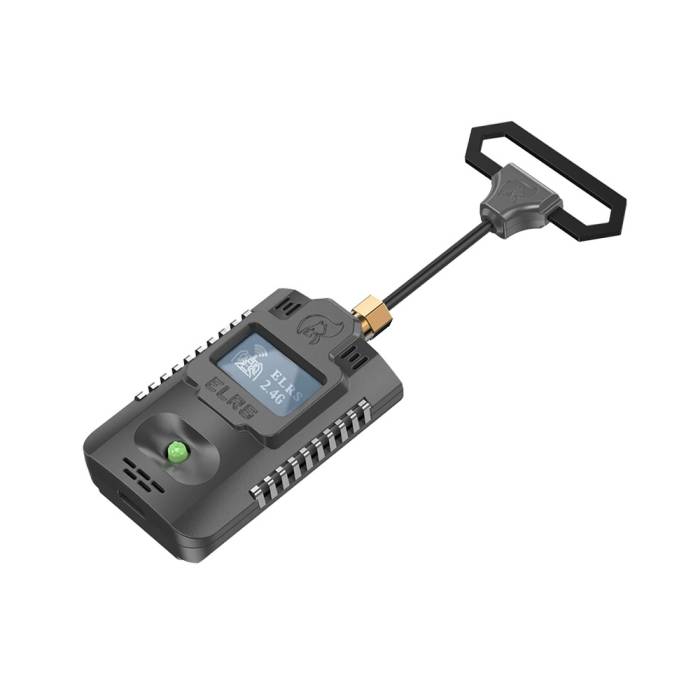

Jumper AION ELRS 2.4GHz 500mW Nano TX Module
The Jumper AION ELRS 2.4GHz Nano TX Module offers a reliable long-distance link with a 500Hz refresh rate, adjustable power, and WiFi updates.
Share

About this product

The Jumper AION ELRS 2.4GHz Nano TX Module offers a reliable long-distance link with a 500Hz refresh rate, adjustable power, and WiFi updates. Pre-loaded with ExpressLRS firmware, it features an OLED display screen and 5-direction button for easy navigation.

Features

  • Adjustable power (10-500mW) for racing, freestyle, or long-range flights
  • Built-in OLED screen and 5-way joystick for intuitive configuration
  • Supports Wi-Fi, USB-C, or Bluetooth updates for hassle-free firmware management
  • Preloaded ELRS firmware ready to pair instantly with compatible receivers
  • Directional Diamond antenna ensures stable performance even in challenging environments

Specifications

  • Product: Jumper 2.4GHz ELRS TX Nano Module
  • Screen: OLED
  • MCU: ESP32
  • RF Output Power: 10-500mw
  • Frequency Range: 2.4GHz-2.5GHz
  • Firmware: ExpressLRS
  • Antenna: Directionality Diamond antenna for best signal penetration
  • Working Voltage： DC5-8.4v
  • Maximum receive refresh rate: 500Hz
  • Menu button: 5 directions button
  • Voltage: DC6-8.4V
  • Current: ＜400mA
  • Port: S.port
  • Firmware update: via Wifi, UBC-C, or Bluetooth

Includes

  • 1x Jumper 2.4GHz ELRS TX Nano Module
  • 1x Diamond Antenna


More Information

SKU G25070CN1Z
UPC (GTIN) 723326382543
Manufacturer Jumper
Country of Manufacture China
NDAA Compliant No
Transmitter Protocol ELRS
Tx Frequencies 2.4GHz
Transmitter Module Type Nano
