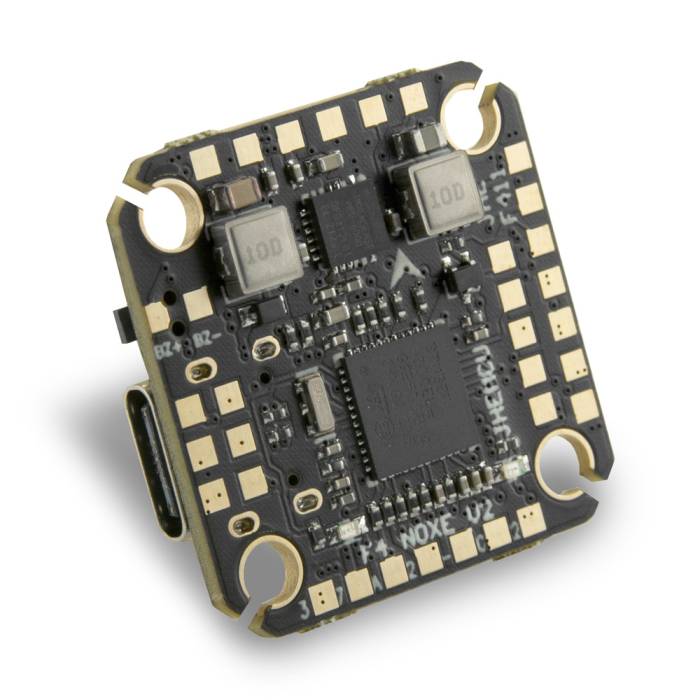

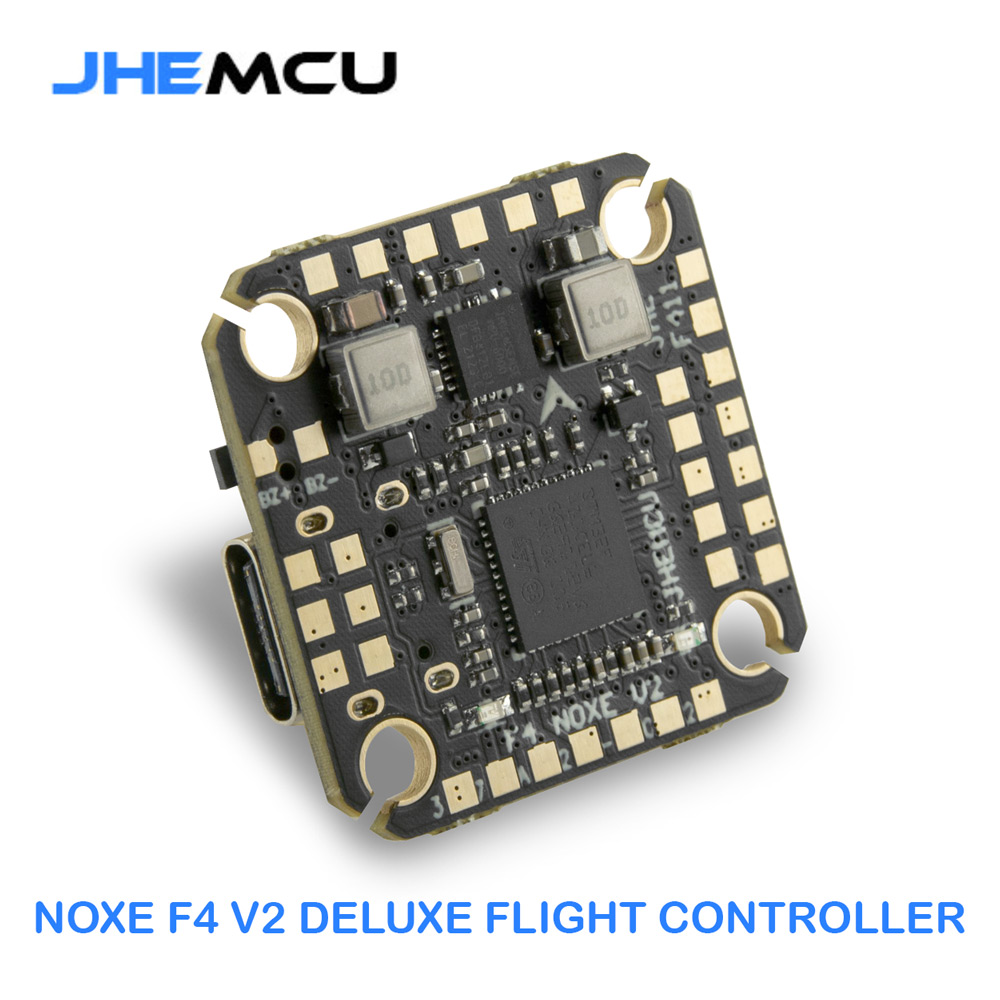

JHEMCU NOXE F411 V2 DJI Flight Controller - Mini 20x20 - Deluxe
JHEMCU NOXE F411 V2 DJI Flight Controller - Mini 20x20 - Deluxe
$48.99
$29.39
Out of Stock
Only left for same day shipping. Order now!
Earn
JHEMCU NOXE F411 V2 DJI Flight Controller - Mini 20x20 - Deluxe
The JHEMCU NOXE F4 V2 Flight Controller is made with DJI Pilots in mind. This Deluxe FC packs a 16MB Blackbox, Barometer, 2 UARTs, and BEC into a mini-sized 20x20 board with 3-6S capabilities!
About this product
The JHEMCU NOXE F4 V2 Flight Controller is made with DJI Pilots in mind. This deluxe version FC packs a 16MB Blackbox, Barometer, 2 UARTs, and BEC into a mini sized 20x20 board with 3-6S capabilities!
VIDEO: Unboxing JHEMCU F4 Noxe V2 Deluxe
Features
- Deluxe version with Barometer and 16MB Blackbox
- Mini sized 20x20 FC with 3-6S capabilities
- 5V 3A, 10V 2A BEC
- DJI Compatibility
- 2 UARTs
Specifications
- Input Voltage: 3-6S LiPo
- Dimensions: 27x27xmm
- ESC Connections: Yes
- BEC: 5V 3A, 10V 2A
- Current Sensor: Yes
- DJI Compatible: Yes
- Firmware: JHEF411
- MCU: STM32F411
- Stack Size: 20x20
- Gyro: MPU6000
- Black Box: 16MB
- Barometer: Yes
- UARTs: 2 Sets
- Weight: 4.5g
- Buzzer: Yes
- OSD: Yes
Includes
- 1x JHEMCU NOXE F411 V2 DJI Flight Controller - Mini 20x20 - Deluxe
More Information
| SKU | 17890 |
|---|---|
| UPC (GTIN) | 764613343311 |
| Manufacturer | JHEMCU |
| Mounting Pattern | Convertible 20x20/30.5x30.5 |
| NDAA Compliant | No |
| Item Returns | This item can be returned |
