ImpulseRC Micro Apex 3" Frame Kit (w/ Additional Plastics)

The ImpulseRC Micro Apex 3" Frame Kit takes everything you know and love from the widely popular full-sized Apex and shrinks it down (without compromise) to deliver, by far, the biggest little frame on the market.


(Frame Kit only- other accessories not included)

Choose option below...
$49.99

* Required Fields

$49.99
Description

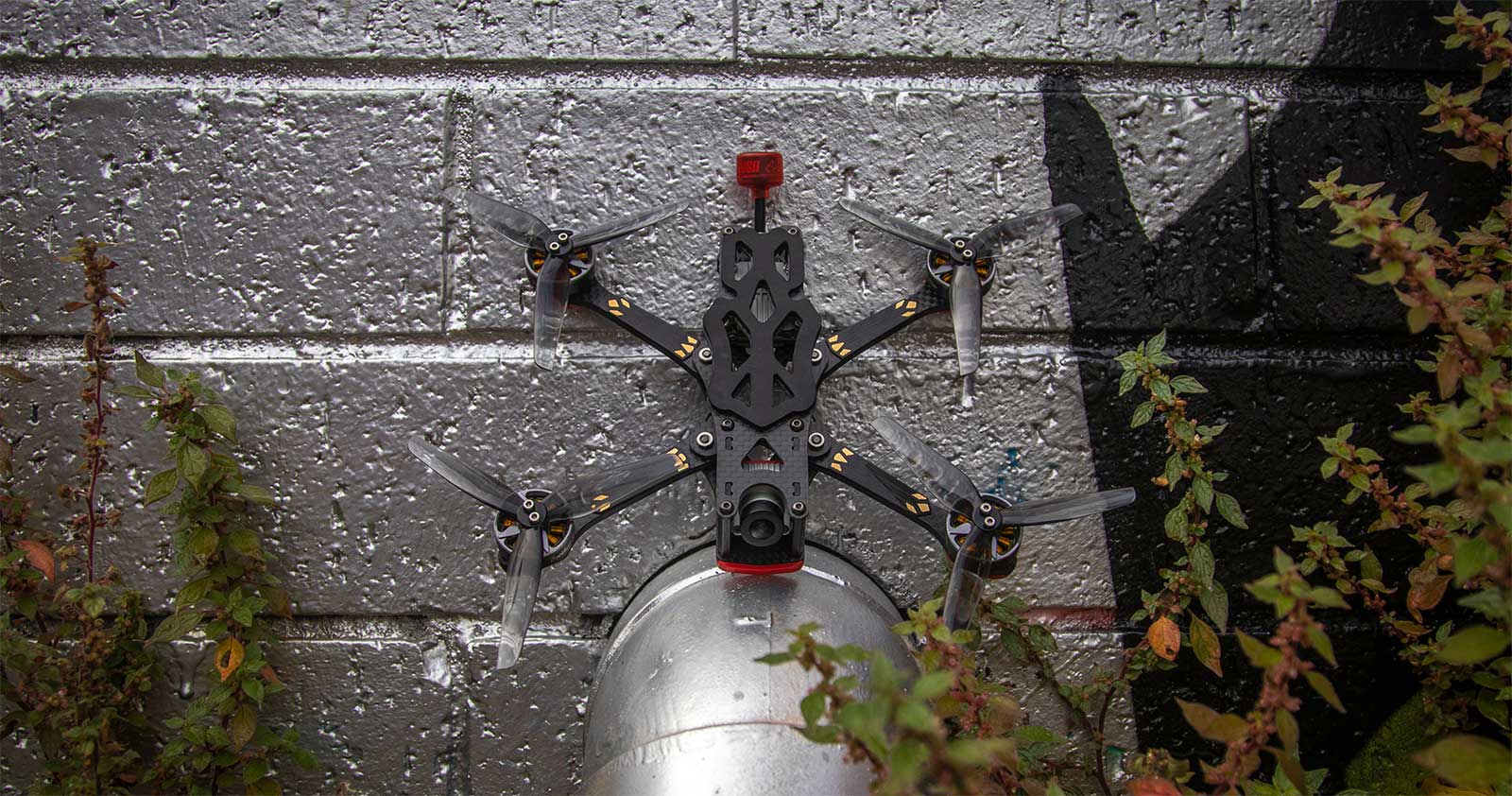

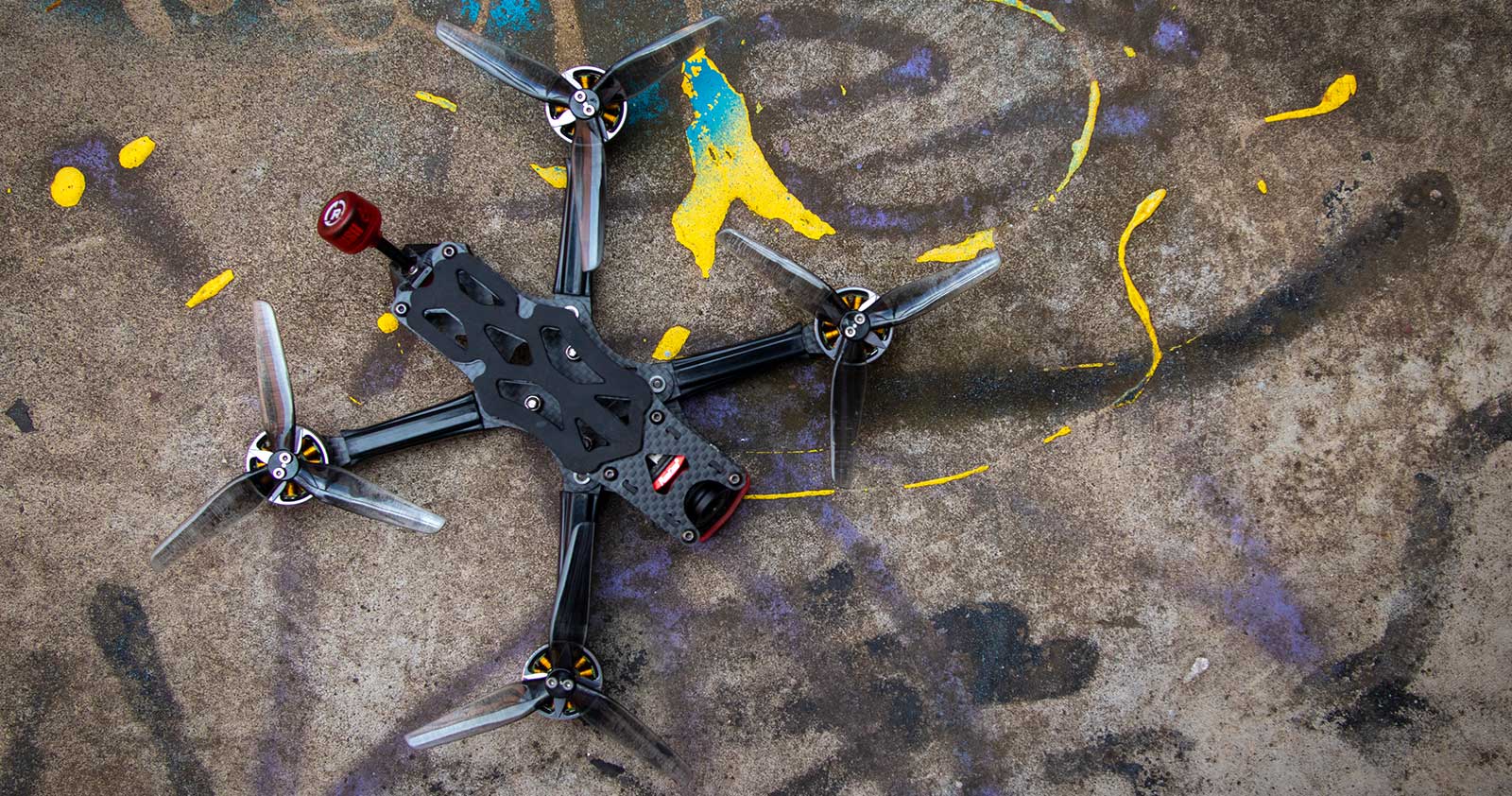

The ImpulseRC Micro Apex 3" Frame Kit takes everything you know and love from the widely popular full-sized Apex and shrinks it down (without compromise) to deliver, by far, the biggest little frame on the market.

The meticulous transformation and extreme attention to detail have created a frame that incorporates years of design experience. Equally comfortable as a sub-250g long-range explorer, or a full-blooded freestyle machine capable of handling the harshest environments.

At the center of mass where the arms meet there is a massive 8mm of carbon fiber, taking the stiffness of a micro-frame to a new dimension so you can enjoy unsurpassed flight characteristics at this prop size.

The Micro Apex incorporates all of the unique innovations pioneered by ImpulseRC and are now widely imitated.

Choose your color of plastic accessories.

(Frame Kit only- electronics / motors not included)

Features

  • Compressed-X arm geometry
  • Integrated camera tilt
  • Front box-section
  • Split main plate design
  • Custom shoulder bolts and arm locking key. compressed-X arm geometry
  • Zero arm slop or movement
  • Zero vibration or resonance
  • Proven ImpulseRC durability
  • Red or Black kit option

Specifications

  • Perfect for Caddx Vista, 4K Tarsier, or classic analog setup
  • No props in a shot of a flight camera with 3” arms
  • Dual stack, 20x20 M3 and M2 center, 20x20 M2 rear
  • Fits M2 9x9mm motors and M2 12x12mm motors
  • Injection-molded arm skids and front bumper
  • Injection-molded fitted wire guards to protect from prop strikes
  • Two battery pads included 2mm rubber and ultra-light hook pad
  • Custom fitted Racewire available for 4” arms
  • 3” frame weight 58g, carbon fiber + hardware
  • 4” frame weight 61g, carbon fiber + hardware
  • 4mm thick arms, single shoulder bolt per arm
  • 2mm thick upper and lower main plates
  • 1.5mm thick top and camera plates

Includes

CARBON

  • (1x) Micro Apex Arm Key CF 3.5mm
  • (1x) Micro Apex Top Plate CF 1.5mm
  • (1x) Micro Apex Main Lower CF 2mm
  • (1x) Micro Apex Main Upper CF 2mm
  • (2x) Micro Apex Cam Side Plate CF 1.5mm
  • (4x) Micro Apex 3" Arm CF 4mm

ACCESSORIES

  • (1x) Micro Apex Hook LIPO pad - BLACK
  • (1x) Micro Apex LIPO pad - 2mm BLACK
  • (1x) Diamond File - Flat (Mini)
  • (1x) Diamond File - Round (Mini)
  • (1x) Lipo Strap - Small - ImpulseRC
  • (1x) Micro Apex Plastics Kit - (BLACK / RED OPTIONAL)
  • (1x) Micro Apex Arm Covers - BLACK - (4 Pack)

HARDWARE

  • (4x) M2.5 26mm Standoff - Aluminium - Black
  • (2x) M2.5 20mm Standoff - Aluminium - Black
  • (4x) M3x11mm Shoulder bolt - High Tensile Carbon Steel - Gunmetal
  • (4x) 3x10mm Cone Washer - Aluminium - Black
  • (4x) M3 Press Nut - Stainless Steel
  • (1x) M3x6mm Cap - High Tensile Carbon Steel - Gunmetal
  • (12x) M2.5x8mm Button - High Tensile Carbon Steel - Gunmetal
  • (16x) M2x6mm Cap - Stainless Steel
  • (16x) M2x8mm Cap - Stainless Steel
  • (4x) M3x10mm Countersunk Screw - Stainless Steel
  • (4x) M3x16mm Countersunk Screw - Stainless Steel
  • (8x) M3x18mm Countersunk Screw - Stainless Steel
  • (8x) M2 Lock Nut - Stainless Steel
  • (4x) M3 Lock Nut - Stainless Steel
  • (4x) 1.8x1mm O-ring


Additional Information
SKU 15672
Manufacturer ImpulseRC
UPC (GTIN) No
Static Block blank
