ImmersionRC Uno 5.8GHz A/V Receiver (Race Edition)

More Views

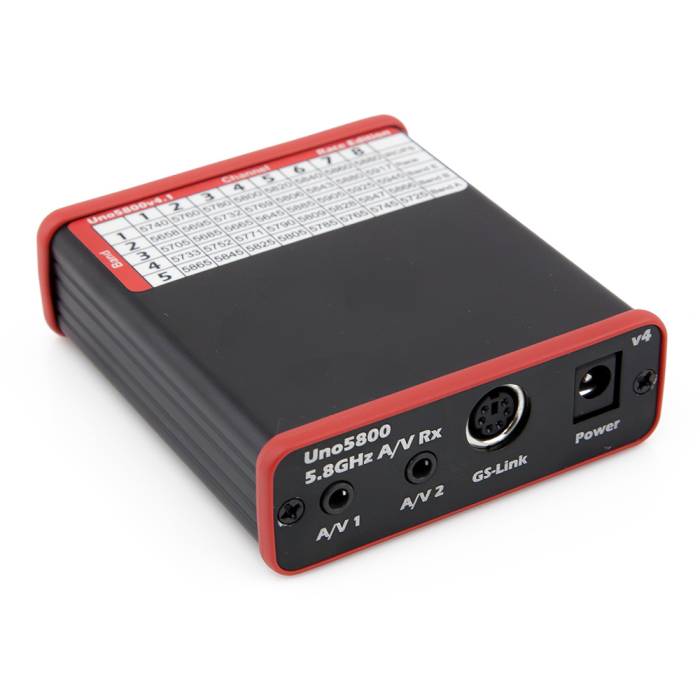

ImmersionRC Uno 5.8GHz A/V Receiver (Race Edition)
The ImmersionRC Uno v4.1 5.8GHz A/V Receiver with RaceBand.
In Stock
$61.99
Description

ImmersionRC's newest version (4.1) of their popular 5.8GHz receiver, the Uno 800 V4 now with 40ch including RaceBand. This receiver includes the popular Fatshark/ImmersionRC 'NexWaveRF' series of A/V frequencies + 7 RaceBand channels and now also includes an additional 24ch for 5.8GHz. Now 1 receiver can cover all 5.8GHz frequencies.

Features

  • Significant range increase over previous modules
  • Much less abrupt loss of signal when approaching the limits of range
  • Extensive filtering of UHF, and 2.4GHz emissions in close proximity to the receiver (important for goggle use)
  • Greatly reduced tendency to 'tear' at the top of the image
  • Compatible with existing FatShark/ImmersionRC 5.8GHz equipment
  • Dual buffered A/V outputs
  • Single Cable Groundstation Connection (Power, Audio, Video, Control)
  • 6V to 16V (2-3S-4S Lipo)
  • High Bandwidth Stereo Audio

Package Contents

  • A receiver UNO 5800 v4.1 NexWave +RaceBand +24ch 5.8 GHz
  • A cable audio / video output with female jack (yellow = video, audio R = red, white = audio L).
  • A power adapter jack to 2.1 mm.
  • An antenna 3 dBi 5.8 GHz

Standard Frequencies :

  •     IRC/FatShark: 5740, 5760, 5780, 5800, 5820, 5840, 5860 (all within the legal ISM band)
  •     IRC RaceBand: 5658, 5695, 5732, 5769, 5806, 5843, 5880, 5917 MHz (legal for Ham use in USA)

Extra frequencies :

  •     E Band: 5705, 5685, 5665, 5645, 5885, 5905, 5925, 5945
  •     B Band: 5733, 5752, 5771, 5790, 5809, 5828, 5847, 5866
  •     A Band: 5865, 5845, 5825, 5805, 5785, 5765, 5745, 5725
Additional Information
SKU 2863
Manufacturer ImmersionRC
